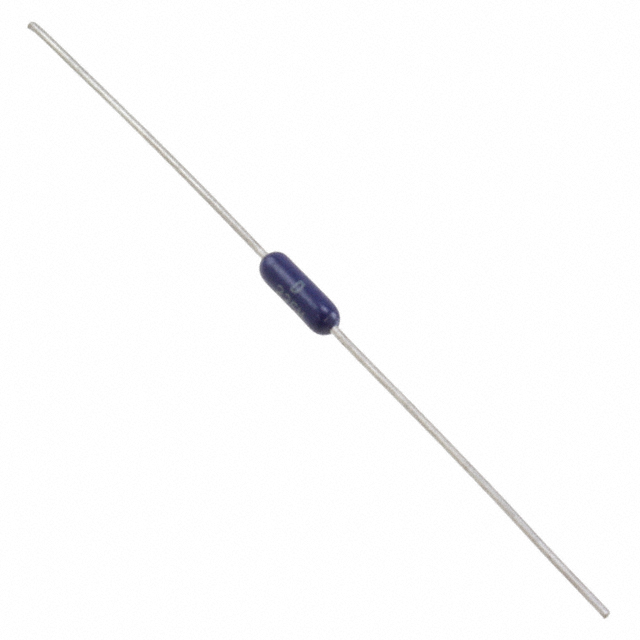

RNC55J5111BSRE5

产品分类: 通孔电阻
产品描述: 5.11KΩ ±0.1% 125mW ±25ppm/℃ 通孔安装 6.35mm(长度)
供应商型号: F-RNC55J5111BSRE5
供应商: 海外现货
标准整包数: 500
VISHAY INTERTECHNOLOGY 通孔电阻 RNC55J5111BSRE5

RNC55J5111BSRE5概述

    Vishay Dale ERC Series Metal Film Resistors: A Comprehensive Guide
    Product Introduction
    The Vishay Dale ERC series consists of high-quality metal film resistors designed to meet stringent military-grade requirements. These resistors cater to applications demanding precision, reliability, and durability across harsh environments. The ERC series includes products with characteristics labeled J, H, and K, offering varying temperature coefficients and tolerances, making them suitable for a wide range of applications, including aerospace, defense, and industrial electronics.
    These resistors comply with the MIL-PRF-55182 specification, ensuring they meet critical electrical, environmental, and dimensional standards. Key features include low noise levels (-40 dB), verified failure rates, extensive screening processes, and controlled temperature coefficients. Their epoxy coating ensures superior moisture resistance, while their design supports both soldering and welding. The ERC series is also compliant with MIL-R-10509, providing backward compatibility for newer designs.
    Technical Parameters
    | Model | Resistance Range (Ω) | Temperature Coefficient (ppm/°C) | Maximum Working Voltage (V) | Power Rating @ 70°C (W) |

    | ERC50 | 10 to 796K | 100 | 450 | 0.10 |
    | ERC55 | 10 to 2M | 100 | 450 | 0.125 |
    | ERC55..200 | 10 to 2M | 100 | 450 | 0.25 |
    | ERC65 | 10 to 3.01M | 100 | 900 | 0.50 |
    | ERC70 | 10 to 3.01M | 100 | 900 | 0.75 |
    Additional specifications:
    - Voltage Coefficient: ≤5 ppm/V when measured between 10% and full rated voltage.
    - Insulation Resistance: ≥10⁹ Ω after moisture testing, ≥10¹¹ Ω under dry conditions.
    - Operating Temperature Range: -65°C to +175°C.
    - Terminal Strength: 2 lbs for RNC50–65, 4.5 lbs for RNC70.
    - Derating Curve: Maximum power rating is reduced above 70°C.
    Product Features and Advantages
    The ERC series boasts several distinct advantages:
    1. High Reliability: Meets all MIL-PRF-55182 requirements, with verified failure rates available from the factory.
    2. Noise-Free Performance: Offers very low noise (-40 dB), essential for sensitive circuits.
    3. Temperature Control: Precise temperature coefficient management ensures stability across varying thermal conditions.
    4. Moisture Protection: Epoxy coating enhances resistance to moisture ingress, crucial for humid environments.
    5. Comprehensive Support: Traceability of materials and processes, extensive stocking programs, and support for custom reliability programs.
    Application Case Studies and Usage Recommendations
    The ERC series excels in environments requiring high accuracy and reliability. Examples include:
    - Military Applications: Used in radar systems, avionics, and communication equipment where stable resistance values are paramount.
    - Industrial Automation: Suitable for control circuits in industrial machinery where operational temperatures can fluctuate widely.
    - Medical Equipment: Ideal for life-support systems due to their precise tolerances and robustness.
    Usage Suggestions:
    - Ensure proper derating based on ambient temperature to maintain optimal performance.
    - Consider moisture-sensitive applications for components requiring epoxy-coated terminations.
    - Implement appropriate surge protection mechanisms to prevent voltage spikes exceeding maximum work

RNC55J5111BSRE5参数

参数
电阻值 5.11KΩ
精度 ±0.1%
额定功率 125mW
温度系数 ±25ppm/℃
长*宽*高 6.35mm(长度)
安装方式 通孔安装
应用等级 军用级
包装方式 卷带包装
