首页  >  产品百科  >  VESD01C1-02VHG3-08

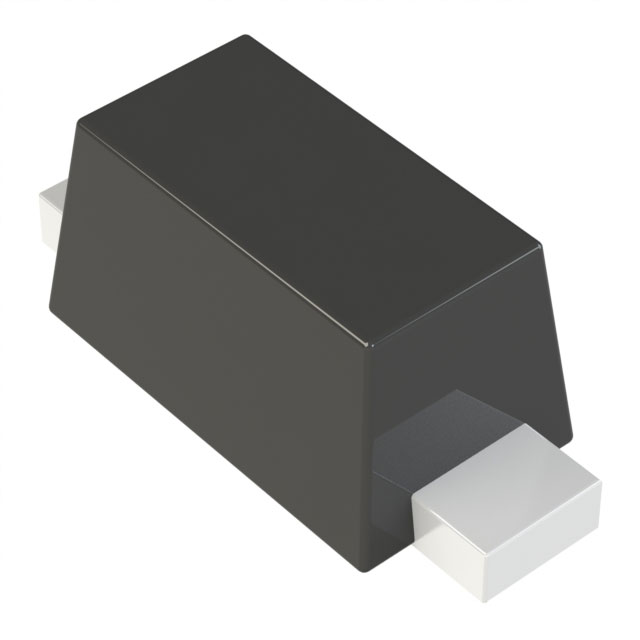

VESD01C1-02VHG3-08

产品分类: TVS二极管/ESD抑制器
产品描述: 1V 单向 100W 14.6A 6.9V 2.5V SC-79,SOD-523 贴片安装
供应商型号: C3707128
供应商: 国内现货
标准整包数: 5
VISHAY INTERTECHNOLOGY TVS二极管/ESD抑制器 VESD01C1-02VHG3-08

VESD01C1-02VHG3-08概述

    # Vishay Semiconductor ESD-Protection Diodes Overview
    Product Introduction
    The Vishay Semiconductor ESD-Protection Diodes series, ranging from VESD01C1-02V to VESD33C1-02V, represents a comprehensive lineup designed to safeguard electronic systems against Electrostatic Discharge (ESD). These diodes feature compact packaging, low profile designs, and exceptional performance capabilities tailored for various applications such as data lines, signal lines, and interface protection in consumer electronics, automotive systems, communication devices, and industrial equipment.
    These diodes operate within a working voltage range of 1 V to 33 V and provide robust ESD protection compliant with the IEC 61000-4-2 standard, offering immunity levels of ±15 kV to ±30 kV (contact and air discharge, respectively). The SOD-523 package ensures a small footprint and high reliability, making them ideal for space-constrained designs.
    Technical Parameters
    Below is a summary of key electrical and performance specifications:
    | Parameter | Test Conditions | Symbol | Min. | Typ. | Max. | Unit |
    ||
    | Protection Paths Nchannel | - | - | 1 | lines |
    | Reverse Standoff Voltage | Max. Reverse Working Voltage | VRWM | - | - | 33 | V |
    | Reverse Voltage @ IR = 1 mA VBR | 6.85 | 7.26 | 7.65 | V |
    | Reverse Clamping Voltage @ IPPM | IPPM = 8.7 A, tp = 8/20 μs | VC | - | 10.3 | 11.5 | V |
    | Forward Clamping Voltage @ IPPM | IPPM = 8.7 A, tp = 8/20 μs | VF | 0.9 | 1.1 | 1.2 | V |
    | Dynamic Resistance | tp = 100 ns | rdyn | - | 0.2 | - | Ω |
    | Capacitance @ VR = 0 V, f = 1 MHz CD | 53 | 67 | 81 | pF |
    Additional parameters include peak pulse current ratings up to 14.6 A, energy handling capability up to 100 W, and operating temperature range of -55°C to +150°C.
    Product Features and Advantages
    Unique Features:
    1. Compact Design: The SOD-523 package minimizes board space while maintaining excellent thermal performance.
    2. High ESD Immunity: Compliant with IEC 61000-4-2 standards, providing robust protection against contact and air discharge.
    3. AEC-Q101 Qualified: Suitable for automotive-grade applications requiring stringent reliability standards.
    4. Wide Operating Range: Supports voltages from 1 V to 33 V, making it versatile for diverse electronic environments.
    Market Competitiveness:
    - Space Efficiency: Ideal for consumer electronics where size and weight are critical.
    - Cost-Effectiveness: Reduces the need for multiple components, simplifying design and lowering costs.
    - Performance Leadership: Advanced materials ensure low leakage current and high breakdown voltages.
    Application Case Studies and Usage Recommendations
    Applications:
    - Mobile phones and tablets for USB interfaces.
    - Automotive infotainment systems protecting data buses.
    - Industrial sensors safeguarding analog signal lines.
    - Communication devices securing network ports.
    Usage Recommendations:
    1. Optimal Placement: Place these diodes close to the susceptible IC pins to minimize trace impedance and improve protection effectiveness.
    2. Component Matching: Pair diodes with similar characteristics for balanced performance across multi-line circuits.
    3. Temperature Management: Ensure proper thermal management during soldering to avoid damage due to excessive heat.
    Compatibility and Support
    These diodes are comp

VESD01C1-02VHG3-08参数

参数
工作电压 1V
箝位电压 6.9V
击穿电压 2.5V
峰值脉冲电流 14.6A
峰值脉冲功率 100W
极性 单向
SC-79,SOD-523
通用封装 SC-79,SOD-523
安装方式 贴片安装
应用等级 汽车级
零件状态 在售
包装方式 卷带包装

VESD01C1-02VHG3-08厂商介绍

Vishay Intertechnology是一家全球领先的电子元件制造商,专注于研发、制造和销售各种高性能电子元件。公司成立于1962年,总部位于美国宾夕法尼亚州的马尔文,在全球拥有多个生产基地和研发中心。

Vishay Intertechnology的产品主要分为以下几类:
1. 分立元件:包括二极管、晶体管、MOSFET等。
2. 被动元件:包括电阻、电容器、电感等。
3. 传感器:包括温度、压力、湿度等传感器。
4. 保护元件:包括保险丝、浪涌保护器等。

这些产品广泛应用于汽车、工业、医疗、通信、消费电子等领域。Vishay Intertechnology的优势在于:
1. 技术创新:公司不断研发新技术和新产品,以满足市场需求。
2. 质量控制:公司严格遵循ISO等国际质量标准,确保产品质量。
3. 客户服务:公司提供全方位的技术支持和定制化服务,以满足客户的个性化需求。
4. 全球布局:公司在全球设有多个生产基地和研发中心,可以快速响应客户需求。

VESD01C1-02VHG3-08数据手册

厂牌 PDF简要描述 下载
VISHAY INTERTECHNOLOGY TVS二极管/ESD抑制器 VISHAY INTERTECHNOLOGY VESD01C1-02VHG3-08 VESD01C1-02VHG3-08数据手册

VESD01C1-02VHG3-08封装设计

查看详情并下载
Symbol
Footprint
3D Model
价格梯度 中国香港交货 内地交货(含增值税)
5+ ¥ 1.1166
50+ ¥ 0.8903
150+ ¥ 0.7934
500+ ¥ 0.6724
2500+ ¥ 0.5467
5000+ ¥ 0.5145
库存: 7335
起订量: 5 增量: 8000
交货地:
最小起订量为:5
合计: ¥ 5.58
直接购买
加入购物车
