P0159

产品分类: 开发配件
产品描述: VGA FPGA
供应商型号: SG-P0159
供应商: 期货订购
标准整包数: 1
TERASIC/武汉友晶科技 开发配件 P0159

P0159概述

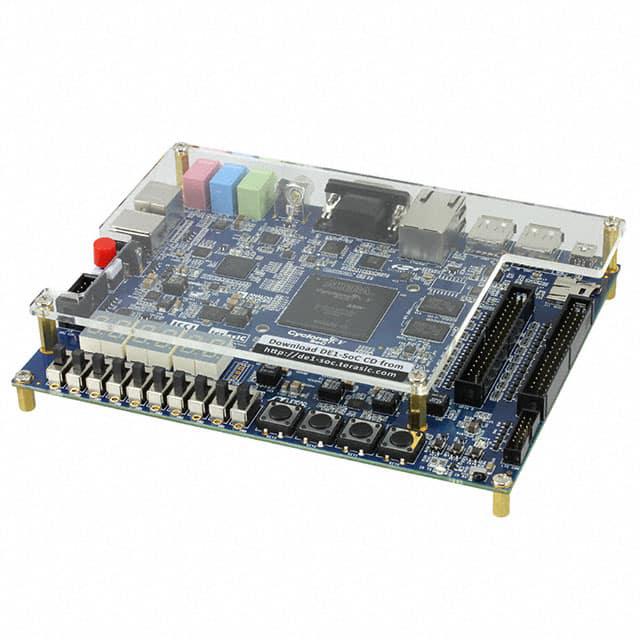

    # DE1-SoC Development Kit User Manual Overview
    Product Introduction
    The DE1-SoC Development Kit is a comprehensive hardware platform built around the Altera Cyclone V SoC FPGA. This versatile tool combines dual-core ARM Cortex-A9 processors with high-performance programmable logic, enabling designers to build sophisticated systems with maximum flexibility. The kit is ideal for developing multimedia applications, embedded systems, and high-speed communication solutions. Key features include integrated SDRAM, video/audio capabilities, Ethernet connectivity, and multiple peripheral interfaces.
    Technical Specifications
    The DE1-SoC board supports the following technical parameters:
    - FPGA:
    - Cyclone V SE 5CSEMA5F31C6N device
    - Dual-core ARM Cortex-A9 processor @ 800MHz
    - 64MB SDRAM (16-bit data bus)
    - 1GB DDR3 SDRAM (32-bit data bus)
    - 4 push-buttons
    - 10 slide switches
    - 10 red user LEDs
    - 6 x 7-segment displays
    - 4 x 50MHz clock sources
    - 24-bit audio codec with line-in, line-out, mic-in
    - VGA DAC (8-bit triple DACs) and VGA-out connector
    - TV decoder (NTSC/PAL/SECAM) and TV-in connector
    - PS/2 mouse/keyboard connectors
    - IR receiver and emitter
    - Two 40-pin expansion headers with diode protection
    - HPS (Hard Processor System):
    - 1 Gigabit Ethernet PHY with RJ45 connector
    - 2-port USB Host (Type-A connector)
    - Micro SD card socket
    - Accelerometer (I2C interface + interrupt)
    - UART to USB (Mini-B connector)
    - Warm reset and cold reset buttons
    - User button and LED
    - LTC 2x7 expansion header
    Product Features and Advantages
    The DE1-SoC offers several unique advantages:
    - Reconfigurability: Supports dynamic reconfiguration via JTAG and AS modes.
    - High Performance: Combines ARM Cortex-A9 with high-density FPGA fabric.
    - Comprehensive Connectivity: Includes Ethernet, USB, VGA, and audio interfaces.
    - Scalability: Equipped with expansion headers and support for additional peripherals.
    - Educational Value: Ideal for learning and prototyping advanced embedded systems.
    Application Cases and Usage Tips
    Application Cases:
    1. Multimedia Applications: Implement video/audio processing using the onboard audio codec and VGA output.
    2. Embedded Networking: Use the Gigabit Ethernet interface for networked applications.
    3. Sensor Integration: Integrate sensors like accelerometers and temperature sensors via I2C and SPI interfaces.
    4. IoT Prototyping: Build IoT devices leveraging the microcontroller subsystem and wireless connectivity options.
    Usage Tips:
    - Always ensure proper grounding during hardware connections to avoid damage.
    - Use appropriate power supplies (12V DC) to prevent voltage fluctuations.
    - Follow the setup instructions carefully to ensure optimal performance and compatibility.
    Compatibility and Support
    The DE1-SoC board is compatible with a variety of external devices and peripherals due to its rich set of interfaces. Altera and Terasic offer robust customer support through email and online resources. Developers can access detailed documentation, tutorials, and forums for troubleshooting and further customization.
    Common Issues and Solutions
    | Issue | Solution |

    | Board does not boot after power-up | Verify correct jumper settings (MSEL pins) and ensure proper power supply. |
    | Communication failure with microSD card | Check the SD card format and ensure it matches the expected standard. |
    | Unexpected resets | Ensure that no conflicting pull-up/pull-down resistors are connected to the reset lines. |
    Conclusion and Recommendation
    The DE1-SoC Development Kit stands out as an excellent choice for engineers and students looking to explore complex digital designs and embedded systems. Its combination of powerful hardware and extensive connectivity makes it

P0159参数

参数
接口 VGA
配件类型 -
通用封装 FPGA
零件状态 在售
包装方式 盒装
