P0079

产品分类: 开发配件
产品描述: HSMC
供应商型号: P0079-ND
供应商: Digi-Key
标准整包数: 1
TERASIC/武汉友晶科技 开发配件 P0079

P0079概述

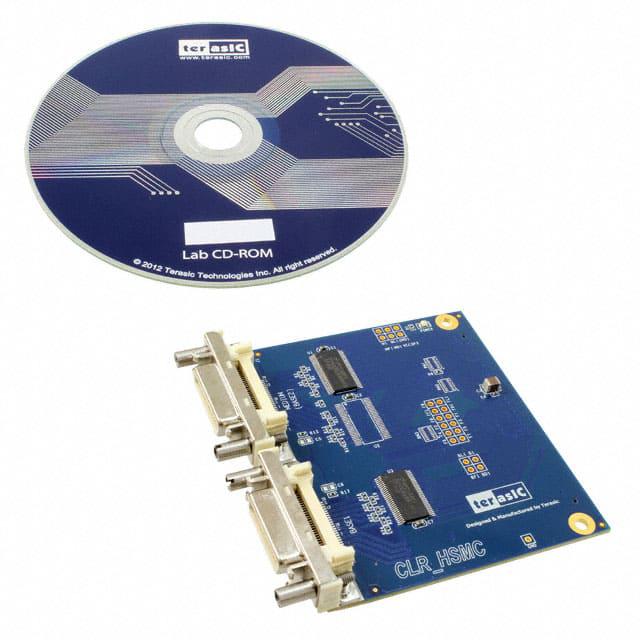

    Product Overview: CLR-HSMC Camera Link Interface Board
    1. Product Introduction
    The CLR-HSMC is a high-performance Camera Link interface board designed specifically for vision applications requiring robust data transmission. This board provides standard Camera Link communication interfaces, enabling seamless integration with motherboards hosting HSMC/HSTC carriers such as DE4, DE3, and DE2-115. With features such as base, medium, and dual-base assembly modes, it supports versatile applications ranging from digital cameras to advanced imaging systems.
    2. Technical Specifications
    The CLR-HSMC board offers impressive performance parameters:
    - Communication Modes: Supports base, medium, and dual-base assembly configurations.
    - Data Rate: Up to 2.38 Gbps throughput with up to 297.5 MB/s bandwidth.
    - Clock Frequency: Shift clock support from 20 to 85 MHz.
    - Voltage Levels: Compatible with both 2.5V and 3.3V I/O standards.
    - Connector Type: High Speed Mezzanine Card (HSMC) expansion connector.
    - Connectivity: Supports Camera Link receiver cards for compatibility with DE4, DE3, and DE2-115 development boards.
    - Environmental Operating Conditions: The board operates effectively across typical industrial and laboratory environments.
    3. Product Features and Advantages
    The CLR-HSMC stands out due to several unique features:
    - Serial Communication Capability: Enables direct communication with digital cameras via serial protocols.
    - Automatic Detection: Offers hardware/software automatic detection mechanisms simplifying system setup.
    - Advanced Chipset Integration: Incorporates National Semiconductor chips (e.g., DS90CR288A) for efficient signal conversion and high-speed data transmission.
    - Flexible Design: Adaptable for various Camera Link modes and signal types, ensuring broad applicability.
    - User-Friendly Support: Comprehensive documentation and extensive technical support.
    4. Application Cases and Usage Recommendations
    The CLR-HSMC has been successfully deployed in multiple digital camera applications:
    - Digital Camera Demonstration for DE4: In this setup, the board works alongside the DE4 board, capturing 1024x768 resolution video frames at a 65 MHz pixel clock. Users can leverage this configuration to develop custom FPGA-based applications.
    - Compatibility Across Platforms: The board is compatible with DE3 and DE2-115, allowing developers to tailor their solutions based on specific project requirements.
    - Recommendations: Ensure proper grounding, maintain clean and secure cable connections, and verify power supply stability during deployment.
    5. Compatibility and Support
    The CLR-HSMC exhibits excellent compatibility with a range of HSMC/HSTC carriers. Additionally, Terasic provides robust customer support via email (`support@terasic.com`) and regional contact numbers for immediate assistance. Technical documentation and updates are regularly available on the Terasic website and system CDs.
    6. Common Issues and Solutions
    Below are common issues encountered with the CLR-HSMC and their corresponding solutions:
    - Problem: Insufficient data transfer rates.
    Solution: Verify clock frequencies and ensure correct voltage levels (2.5V or 3.3V).
    - Problem: Device not detected automatically.
    Solution: Confirm jumper settings and ensure correct software drivers are installed.
    - Problem: Cable noise affecting signal integrity.
    Solution: Use high-quality shielded cables and ensure proper grounding.
    7. Conclusion and Recommendation
    Overall, the CLR-HSMC is an excellent choice for developers requiring reliable and high-performance Camera Link interfaces. Its adaptability, supported by a strong technical foundation and extensive documentation, makes it ideal for a variety of digital imaging projects. We highly recommend this product for applications demanding robust connectivity and versatility.
