P0431

产品分类: 开发配件
产品描述:
供应商型号: 993-P0431
供应商: Mouser
标准整包数: 1
TERASIC/武汉友晶科技 开发配件 P0431

P0431概述

    Product Introduction

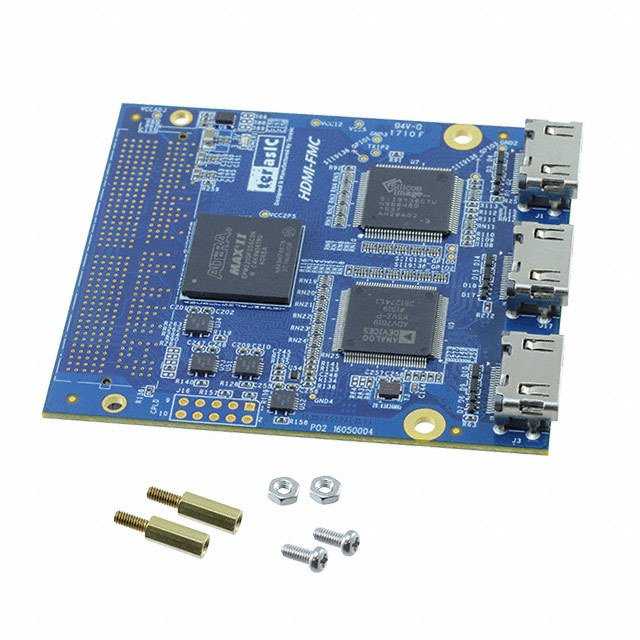

    The HDMI-FMC development kit by Terasic is a highly versatile HDMI transmitter and receiver daughter board with an FMC (FPGA Mezzanine Card) interface. This module enables users to connect FPGA-based systems to HDMI devices for capturing, processing, and displaying images and videos at resolutions up to 4K@30fps. The product offers a dual functionality with both HDMI transmitter (Tx) and receiver (Rx) capabilities, making it ideal for multimedia projects, consumer electronics, professional AV equipment, and other applications requiring advanced video and audio handling.
    Technical Parameters
    | Feature | HDMI-FMC Specifications |

    | Interface Standard | HDMI 1.4a compliant, HDCP 1.4 compliant, and DVI compatible |
    | Tx Resolution | Up to 4K @ 30Hz, 1080p @ 60Hz, 720p @ 120Hz, 1080i @ 120Hz, 1080p @ 30Hz |
    | Rx Resolution | Up to 3840x2160 @ 30Hz, up to 297 MHz pixels clock |
    | Supported Formats | RGB, YCbCr 4:4:4 and 4:2:2 |
    | Color Depth | Up to 16-bit deep color |
    | Audio Formats | S/PDIF, I2S, DSD, SACD, HBR |
    | Clock Frequency | Up to 300 MHz for Tx, up to 297 MHz for Rx |
    | Connectivity | VITA 57.1 FMC (adjustable I/O standard: 1.5/1.8/2.5V) |
    | Operating Voltage | Adjustable I/O standard (1.5/1.8/2.5V) |
    | Environment | Operates within typical industrial temperature ranges |
    Product Features and Advantages
    The HDMI-FMC development kit stands out due to its rich feature set and high performance:
    - Dual Functionality: Simultaneous support for HDMI Tx and Rx functionalities, enabling both input and output capabilities.
    - Wide Resolution Support: Handles a broad range of video resolutions, including 4K at 30Hz, 1080p at 60Hz, and multiple 3D formats.
    - Advanced Audio Handling: Supports various high-resolution audio formats such as S/PDIF, I2S, and HBR.
    - Versatile Compatibility: Connects seamlessly to FPGA development kits with FMC interfaces, offering flexibility in design.
    - Comprehensive Demo Codebase: Comes with example source codes for different FPGA platforms, aiding rapid application development.
    - Low Latency: Optimized design ensures minimal latency in data transmission and reception.
    These features make the HDMI-FMC a strong competitor in multimedia and consumer electronics markets, providing superior integration and functionality compared to competing products.
    Application Case Studies and Recommendations
    Use Case 1: Professional Media Player
    The HDMI-FMC is ideally suited for professional media players where high-resolution video playback and advanced audio support are critical. By leveraging its capability to process 4K@30fps video streams and output synchronized audio, the HDMI-FMC ensures flawless content delivery.
    Use Suggestions: Optimize the system design by using the built-in HDCP compliance to ensure secure content distribution. Additionally, configure the I2C interface to manage clock synchronization effectively.
    Use Case 2: Educational AV Systems
    In educational environments, the HDMI-FMC can enhance the learning experience by allowing real-time video and audio broadcasting. Its support for multiple input formats and resolutions makes it suitable for diverse educational content.
    Optimization Tip: Utilize the embedded sync extraction to streamline synchronization between video and a

P0431参数

参数
配件类型 -
接口 -
零件状态 在售
包装方式 散装

P0431厂商介绍

TerasIC是一家领先的半导体公司,专注于为人工智能(AI)和机器学习(ML)应用提供高性能、低功耗的FPGA(现场可编程门阵列)解决方案。公司的产品线涵盖了从入门级到高端的FPGA产品,包括但不限于:

1. AI加速器:专为深度学习、图像识别和自然语言处理等AI应用设计的FPGA。

2. 通信接口:提供高速数据传输解决方案,适用于5G、数据中心和网络设备。

3. 工业控制:为工业自动化和智能制造提供稳定可靠的FPGA解决方案。

4. 汽车电子:为自动驾驶、车载信息娱乐系统等提供高性能计算平台。

TerasIC的优势在于:

- 定制化服务:根据客户需求提供定制化的FPGA解决方案。
- 低功耗设计:优化的FPGA设计,以实现更低的能耗。
- 高性能计算:提供高性能的计算能力,满足复杂算法的需求。
- 快速上市:缩短产品开发周期,帮助客户快速将产品推向市场。

TerasIC致力于通过其创新的FPGA技术,推动AI和ML技术的发展,并在多个领域实现突破。

P0431数据手册

厂牌 PDF简要描述 下载
TERASIC/武汉友晶科技 开发配件 TERASIC/武汉友晶科技 P0431 P0431数据手册

P0431封装设计

查看详情并下载
Symbol
Footprint
3D Model
