P0053

产品分类: 开发配件
产品描述: HSMC
供应商型号: P0053-ND
供应商: Digi-Key
标准整包数: 1
TERASIC/武汉友晶科技 开发配件 P0053

P0053概述

    # Terasic THDB-H2G SATA/SAS Daughter Card: A Comprehensive Guide
    Product Introduction

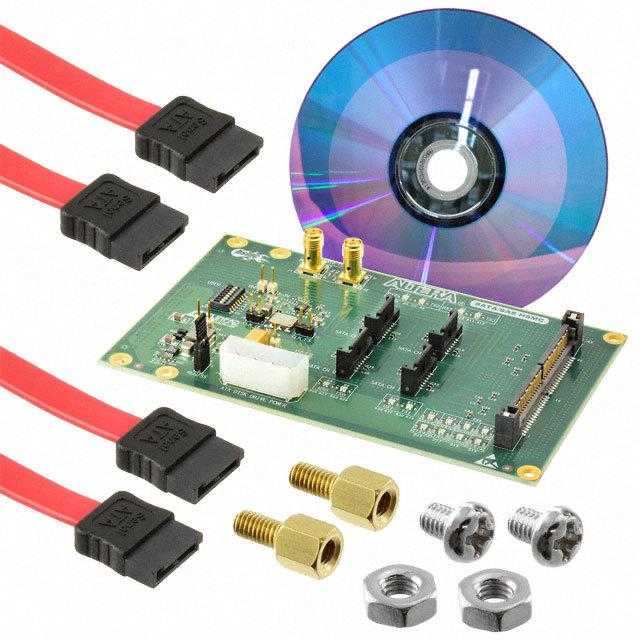

    The Terasic THDB-H2G SATA/SAS daughter card is specifically designed for FPGA platforms that require SATA interface conversion, leveraging the latest 40nm technology via the High-Speed Mezzanine Connector (HSMC). This card enables users to connect storage devices through SATA/SAS protocols on FPGA devices such as the Stratix IV GX, Stratix II GX, Arria II GX, and Cyclone IV GX. Its primary function is to act as a bridge for different communication protocols, allowing the FPGA to function as a System on Chip (SoC). The daughter card supports the SATA/SAS IP core, making it ideal for testing functionality, compliance, interoperability, and performance. With its compact design and versatile capabilities, the THDB-H2G is an excellent choice for developing storage application solutions on Altera’s 40nm FPGAs.
    Key Features:
    - HSMC Interface: Supports 8 high-speed interfaces capable of operating at 1.5Gbps, 3Gbps, and 6Gbps.
    - 6 Out-of-Band Signals: Supported for the 4-lane connector.
    - User Dip Switch Inputs: Allows for customizable configurations.
    - LED Drive Outputs: Supports 16 bi-color LEDs for status indication.
    - Single-Lane and Quad-Lane Interfaces: Both internal vertical surface mount connectors are included.
    - ATX Power Connector: Provides standard ATX power for hard drives.
    - I2C EEPROM: Features an 8Kbit EEPROM for configuration and data storage.
    - Clocking Support: Differential clocking for 150MHz and 300MHz reference clocks.
    Technical Parameters
    Below are the critical technical specifications and parameters of the Terasic THDB-H2G:
    | Parameter | Value |

    | Data Rates | 1.5Gbps, 3Gbps, 6Gbps |
    | Out-of-Band Signals | 6 |
    | Connector Type | HSMC |
    | Voltage Levels | 3.3V, 5V, 12V |
    | EEPROM Size | 8 Kbit I2C EEPROM |
    | Differential Impedance | 100 Ohms |
    | Clock Frequency | 150MHz, 300MHz |
    Product Characteristics and Advantages
    The THDB-H2G stands out due to its ability to seamlessly integrate multiple SATA/SAS standards into a single device. Its advanced features include:
    - High-Speed Communication: Capable of handling data transfer rates up to 6Gbps, making it suitable for demanding applications.
    - Customizable Configurations: User-defined settings via dip switches provide flexibility in diverse applications.
    - Comprehensive Support: Includes necessary power management, clocking mechanisms, and LED indicators for robust operation.
    - Ease of Integration: Compatible with popular FPGA families, simplifying integration into existing designs.
    These characteristics make the THDB-H2G a competitive solution in the field of storage and communication systems.
    Application Cases and Usage Recommendations
    The Terasic THDB-H2G finds extensive use in:
    - Storage Systems: Implementing efficient SATA/SAS protocols for storage solutions.
    - Testing Platforms: Used in lab environments for compliance and performance testing of storage devices.
    - System Prototyping: Facilitates rapid prototyping and development of complex SoC solutions.
    Usage Suggestions:
    - Environmental Considerations: Ensure proper cooling when operating at higher data rates.
    - Configuration Settings: Adjust the user dip switches based on specific application needs.
    - Loopback Testing: Use the provided SATA crossover ribbon cables for loopback tests but avoid connecting hard drives directly with these cables.
    Compatibility and Support
    The THDB-H2G is compatible with various FPGA boards featuring HSMC connectors. Terasic provides comprehensive support, i
