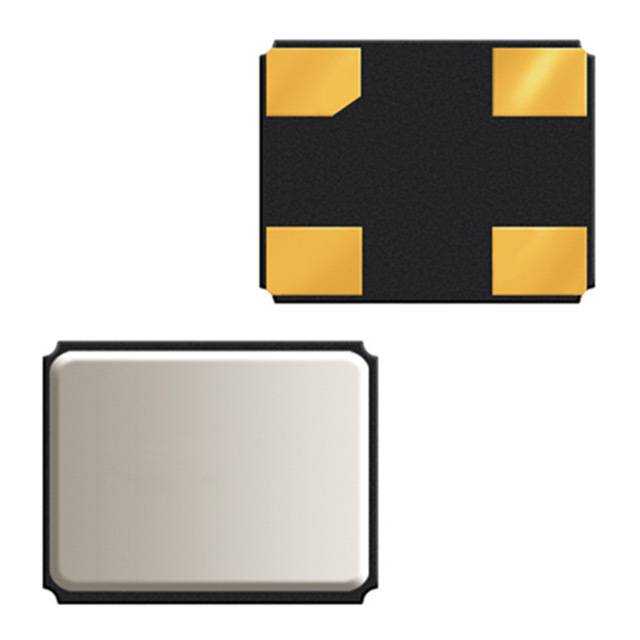

ABM11W-26.0000MHZ-8-K2Z-T3

产品分类: 无源晶振
厂牌: ABRACON
产品描述: 8pF ±20ppm ±50ppm 26MHz 100Ω 贴片安装 2mm*1.6mm*500μm
供应商型号: SYE-ABM11W-26.0000MHZ-8-K2Z-T3
供应商: 海外现货
标准整包数: 1
ABRACON 无源晶振 ABM11W-26.0000MHZ-8-K2Z-T3

ABM11W-26.0000MHZ-8-K2Z-T3概述

    IoT Optimized Low Profile Quartz Crystal ABM11W Series
    Product Introduction
    The ABM11W Series from ABRACon is an IoT-optimized, low-profile quartz crystal designed specifically for applications requiring compactness, reliability, and low energy consumption. These crystals are suitable for wearable devices, Internet of Things (IoT), and various wireless communication systems. With dimensions of 2.0 x 1.6 x 0.5mm, they offer an ultra-thin profile that fits seamlessly into height-constrained designs. Their reliability and robustness make them ideal for harsh environments such as industrial and automotive settings.
    Technical Parameters
    The following technical specifications highlight the capabilities of the ABM11W Series:
    | Parameter | Minimum | Typical | Maximum | Units | Notes |
    |
    | Frequency Range | 16.0000 | 50.0000 | - | MHz
    | Operation Mode | Fundamental
    | Operating Temperature Range | -40 | +125 °C | See options |
    | Storage Temperature | -55 | +125 °C
    | Frequency Tolerance @ +25°C | -10 | 0 | +10 | ppm | See options |
    | Frequency Stability (ref. to +25°C) | -10 | 0 | +10 | ppm | See options |
    | Equivalent Series Resistance (R1) | <150 | 200 Ω
    | Shunt Capacitance (C0) | <1.0 | 2.0 pF
    | Load Capacitance (CL) | 4.0 | - pF | See options |
    | Drive Level | 10 | 100 µW
    | Aging (1 year) | -2 | +2 ppm @ 25°C±3°C
    | Insulation Resistance | 500 | - MΩ @ 100Vdc ±15V
    Product Features and Advantages
    - Energy-Saving Design: The ABM11W Series is optimized for wearable electronics and IoT applications, providing efficient power usage.
    - Low Plating Capacitance: Achieves as low as 4pF, minimizing parasitic effects and enhancing performance.
    - Compact Dimensions: At just 2.0 x 1.6 x 0.5mm, these crystals are perfect for space-constrained designs.
    - Seam Sealed for Longevity: Ensures reliable operation even under extreme conditions.
    - Wide Temperature Range: Operates effectively between -40°C and +125°C.
    - Applications: Suitable for Bluetooth/BLE, NFC, ISM bands, machine-to-machine (M2M) communications, and ultra-low power MCUs.
    Application Case Studies and Usage Recommendations
    The ABM11W Series excels in several key areas:
    - Wearables: Integrated into smartwatches and fitness trackers where size and battery efficiency are critical.
    - IoT Devices: Ideal for wireless sensors and remote monitoring systems due to its small footprint and high stability.
    - Bluetooth/Bluetooth Low Energy: Supports BLE devices by maintaining precise frequency tolerance across different operating temperatures.
    Usage Tips:
    - Ensure proper load capacitance selection during PCB design to optimize performance.
    - Use recommended reflow soldering profiles to prevent thermal stress damage.
    Compatibility and Support
    The ABM11W Series offers broad compatibility with existing hardware platforms, ensuring seamless integration. ABRACon provides comprehensive customer support including technical assistance and product documentation accessible via their website.
    Common Issues and Solutions
    Here are some typical issues users might encounter along with practical solutions:
    1

ABM11W-26.0000MHZ-8-K2Z-T3参数

参数
频率 26MHz
驱动电平 -
负载电容 8pF
频率稳定性 ±50ppm
频率容差 ±20ppm
等效串联电阻 100Ω
长*宽*高 2mm*1.6mm*500μm
安装方式 贴片安装
零件状态 在售
