首页  >  产品百科  >  F931C107MNC

F931C107MNC

产品分类: 钽电容
厂牌: AVX
产品描述: 100μF 2000h@ 125°C ±20% 16V 600mΩ@ 100kHz 2917 贴片安装 7.3mm*4.3mm*3mm
供应商型号: DMT-F931C107MNC
供应商: 海外现货
标准整包数: 6000

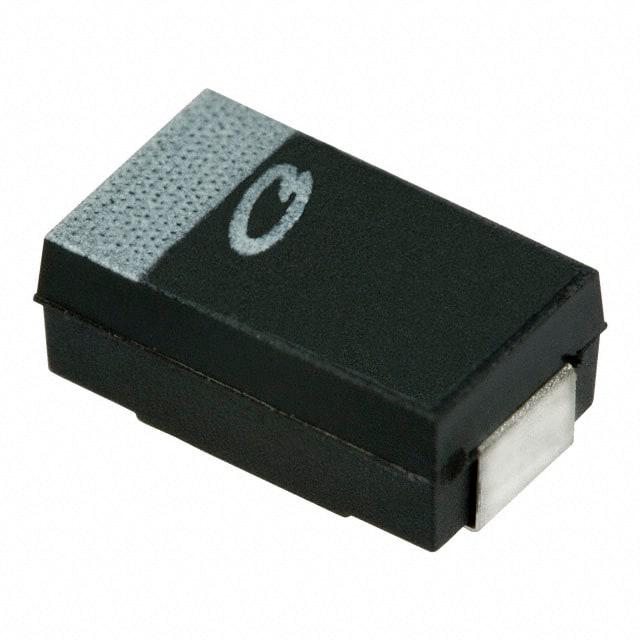

AVX 钽电容 F931C107MNC

F931C107MNC概述

    F93 Series Resin-Molded Chip Tantalum J-Lead Capacitors
    Product Introduction
    The F93 Series by AVX is a line of resin-molded chip tantalum capacitors with J-leads, designed for high reliability and performance in various electronic applications. These capacitors feature low profiles, standard case sizes, and excellent temperature stability, making them ideal for use in modern electronic devices. The primary function of the F93 Series is to provide stable capacitance values within specified voltage ranges, catering to both consumer electronics and industrial applications.
    Key features include:
    - Compliance with RoHS2 Directive 2011/65/EU
    - Standard SMD J-lead configuration
    - Low ESR and high ripple current capability
    Applications span across low-power DC/DC converters, signal conditioning circuits, and power supply filtering in diverse industries.
    Technical Parameters
    The F93 Series capacitors are available in multiple case sizes and capacitance ranges, offering versatility for different design needs. Below are the key technical specifications extracted from the datasheet:
    | Parameter | Specifications |

    | Case Size | A, B, C, N |
    | Capacitance Range | 0.33 µF to 470 µF |
    | Voltage Ratings | 4V, 6.3V, 10V, 16V, 20V, 25V, 35V |
    | Tolerance | ±10%, ±20% |
    | Temperature Range | Operating: -55°C to +125°C |
    | Leakage Current | ≤0.01CV or 0.5 µA at 20°C; ≤0.1CV or 5 µA at 85°C; ≤0.125CV or 6.3 µA at 125°C |
    | Capacitance Change | ±15% max. at +125°C |
    | Dissipation Factor (DF) | Refer to datasheet details |
    | ESR (100 kHz) | Refer to datasheet details |
    The part numbers follow a structured format based on case size, capacitance code, and rated voltage. For example, `F931C106#AA` indicates an F93 Series capacitor with Case A, a capacitance of 10 µF, a rated voltage of 16V, and a tolerance of ±10%.
    Product Features and Advantages
    The F93 Series stands out due to its robust construction and compatibility with advanced electronic systems. Key advantages include:
    1. Compliance with RoHS2 Directive: Ensures environmental safety.
    2. Low ESR and High Ripple Current Capability: Improves efficiency in filtering and decoupling applications.
    3. Wide Operating Temperature Range: Reliable performance under extreme conditions.
    4. Enhanced Reliability: Withstands harsh environments and thermal cycling.
    5. Compact Design: Suitable for space-constrained designs.
    These features make the F93 Series highly competitive in the market for solid electrolytic capacitors, particularly in applications requiring long-term stability and minimal maintenance.
    Application Cases and Usage Suggestions
    The F93 Series capacitors find extensive use in low-power DC/DC converter circuits, signal processing, and power management systems. Here are some practical examples:
    1. Power Supply Filtering: In DC/DC converters, the capacitors stabilize output voltages by filtering out ripples and noise.
    - Recommendation: Use larger capacitance values (e.g., 47 µF or 100 µF) for better filtering performance.
    2. Signal Decoupling: In microcontroller-based designs, they help isolate power supplies from switching noise.
    - Recommendation: Pair with ceramic capacitors for optimized decoupling.
    3. High-Temperature Applications: Due to their ability to operate up to 125°C, they are s

F931C107MNC参数

参数
电容值 100μF
容差 ±20%
额定电压 16V
工作寿命 2000h@ 125°C
ESR-等效串联电阻 600mΩ@ 100kHz
长*宽*高 7.3mm*4.3mm*3mm
通用封装 2917
安装方式 贴片安装
零件状态 在售
包装方式 卷带包装

F931C107MNC厂商介绍

AVX公司是一家全球领先的电子元件制造商,专注于生产和供应各种被动电子元件,包括电容器、电感器、滤波器和保护元件等。其产品广泛应用于通信、计算机、消费电子、工业、医疗和汽车等领域。

AVX的主要产品分类包括:
1. 电容器:包括陶瓷电容器、钽电容器、薄膜电容器等。
2. 电感器:包括功率电感器、射频电感器、滤波电感器等。
3. 滤波器:包括EMI滤波器、电源滤波器、音频滤波器等。
4. 保护元件:包括瞬态电压抑制器、气体放电管、保险丝等。

AVX的优势在于:
1. 技术创新:AVX不断研发新技术,提供高性能、高可靠性的产品。
2. 产品多样性:AVX提供广泛的产品线,满足不同客户的需求。
3. 质量控制:AVX严格遵循ISO9001和ISO14001等国际标准,确保产品质量。
4. 全球服务:AVX在全球设有多个销售和服务网点,为客户提供及时的支持。

F931C107MNC数据手册

厂牌 PDF简要描述 下载
AVX 钽电容 AVX F931C107MNC F931C107MNC数据手册

F931C107MNC封装设计

查看详情并下载
Symbol
Footprint
3D Model
价格梯度 中国香港交货 内地交货(含增值税)
6000+ $ 0.8131 ¥ 6.8709
库存: 11000
起订量: 6000 增量: 6000
交货地:
最小起订量为:6000
合计: ¥ 41225.4
直接购买
加入购物车
