1004112-A001

产品分类: 天线
厂牌: AVX
产品描述: 4.5dB 5W 2.5 50Ω 825MHz,1.955GHz,2.6GHz SMA(DO-214AC) 贴片安装 218.3mm*27.2mm*218.2mm
供应商型号: SYE-1004112-A001
供应商: 海外现货
标准整包数: 1
AVX 天线 1004112-A001

1004112-A001概述

    # Ethertronics 1004112 Broadband External LTE/Cellular Antenna Technical Overview
    Product Introduction
    The Ethertronics 1004112 Broadband External LTE/Cellular Antenna is a versatile, high-performance solution designed to support LTE connectivity across a wide range of frequencies. This antenna is ideal for use in environments requiring robust cellular communication, such as medical applications, home automation, smart metering, industrial devices, and IoT ecosystems. The 1004112 model ensures optimal LTE signal reception by offering comprehensive coverage across multiple frequency bands, including low-band (698-960 MHz), mid-band (1710-2155 MHz), and high-band (2500-2700 MHz). It is engineered to maintain its performance regardless of the ground plane it is mounted on, making it highly flexible for diverse integration scenarios.
    Technical Parameters
    The key technical specifications of the Ethertronics 1004112 are as follows:
    | Parameter | Value |

    | Frequency Range | 698–960 MHz, 1710–2200 MHz, 2500–2700 MHz |
    | VSWR Match | <2.5:1 |
    | Average Efficiency | 65% (Low Band), 60% (High Band), 78% (High High Band) |
    | Peak Gain | 1.18 dBi (Low Band), 4.5 dBi (High Band), 4.0 dBi (High High Band) |
    | Polarization | Linear |
    | Impedance | 50 Ω unbalanced |
    | Maximum Power Handling | 5 W |
    | Operating Temperature | -30°C to +70°C |

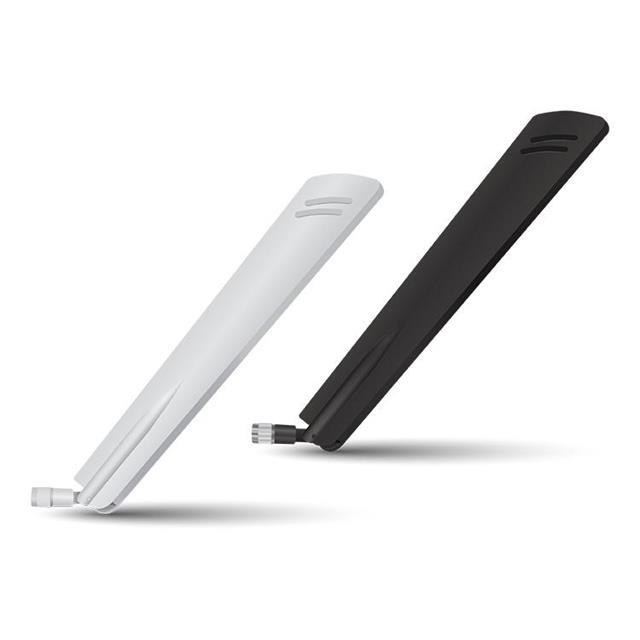

    Ordering Variants:
    - 1004112-A001: SMA (Male) Connector, White Color, Dimensions: 218.2 x 27.2 x 13.8 mm.
    - 1004112-B002: TNC (Male) Connector, Black Color, Dimensions: 227.1 x 27.2 x 14.5 mm.
    - 1004112-C003: SMA (Male) Connector, Black Color, Dimensions: 218.2 x 27.2 x 13.8 mm.
    Product Features and Advantages
    Greater Flexibility
    The Ethertronics 1004112 supports customizable connector types, allowing it to integrate seamlessly into various device designs. Its compact size and low profile make it suitable for both indoor and outdoor applications, while maintaining consistent performance irrespective of the mounting surface.
    Quicker Time-to-Market
    As a standard antenna solution, this model eliminates the need for costly redesign cycles and minimizes risks associated with custom solutions, enabling faster product launches.
    Reliability
    Compliant with the latest RoHS standards, the 1004112 is environmentally friendly and durable, ensuring long-term reliability and compliance with global regulations.
    Application Cases and Usage Recommendations
    Applications:
    - Medical Applications: Suitable for wearable health monitors and remote patient monitoring systems.
    - Home Automation: Ideal for smart thermostats, security cameras, and voice assistants.
    - Smart Metering: Excellent for utility companies requiring reliable wireless communication.
    - IoT Devices: Supports connectivity for sensors, tracking systems, and point-of-sale terminals.
    Usage Suggestions:
    For optimal performance, mount the antenna in a location that provides unobstructed line-of-sight access to cellular towers. Ensure proper grounding and shielding to prevent interference. Additionally, consider using external amplifiers if the environment poses significant signal attenuation challenges.
    Compatibility and Support
    The 1004112 is compatible with all major cellular network carriers and supports a broad spectrum of technologies, including LTE CAT-M, NB-IoT, Sigfox, LoRa, and more. Ethertronics provides comprehensive s

1004112-A001参数

参数
典型天线增益 4.5dB
最大电压驻波比 2.5
带宽 -
阻抗 50Ω
额定功率 5W
天线类型 -
中心频率 825MHz,1.955GHz,2.6GHz
支持协议 -
长*宽*高 218.3mm*27.2mm*218.2mm
通用封装 SMA(DO-214AC)
安装方式 贴片安装
应用等级 医疗级,汽车级
零件状态 在售
包装方式 袋装

1004112-A001厂商介绍

AVX公司是一家全球领先的电子元件制造商,专注于生产和供应各种被动电子元件,包括电容器、电感器、滤波器和保护元件等。其产品广泛应用于通信、计算机、消费电子、工业、医疗和汽车等领域。

AVX的主要产品分类包括:
1. 电容器:包括陶瓷电容器、钽电容器、薄膜电容器等。
2. 电感器:包括功率电感器、射频电感器、滤波电感器等。
3. 滤波器:包括EMI滤波器、电源滤波器、音频滤波器等。
4. 保护元件:包括瞬态电压抑制器、气体放电管、保险丝等。

AVX的优势在于:
1. 技术创新:AVX不断研发新技术,提供高性能、高可靠性的产品。
2. 产品多样性:AVX提供广泛的产品线,满足不同客户的需求。
3. 质量控制:AVX严格遵循ISO9001和ISO14001等国际标准,确保产品质量。
4. 全球服务:AVX在全球设有多个销售和服务网点,为客户提供及时的支持。

1004112-A001数据手册

厂牌 PDF简要描述 下载
AVX 天线 AVX 1004112-A001 1004112-A001数据手册

1004112-A001封装设计

查看详情并下载
Symbol
Footprint
3D Model
