FS1404-2500-AL

产品分类: DC-DC稳压器
厂牌: TDK
产品描述: 1.3MHz Fixed 1 2.5V 16V 4.5V 贴片安装,黏合安装 3.3mm*3.3mm*1.5mm
供应商型号: FS1404-2500-AL
供应商: Avnet
标准整包数: 4000

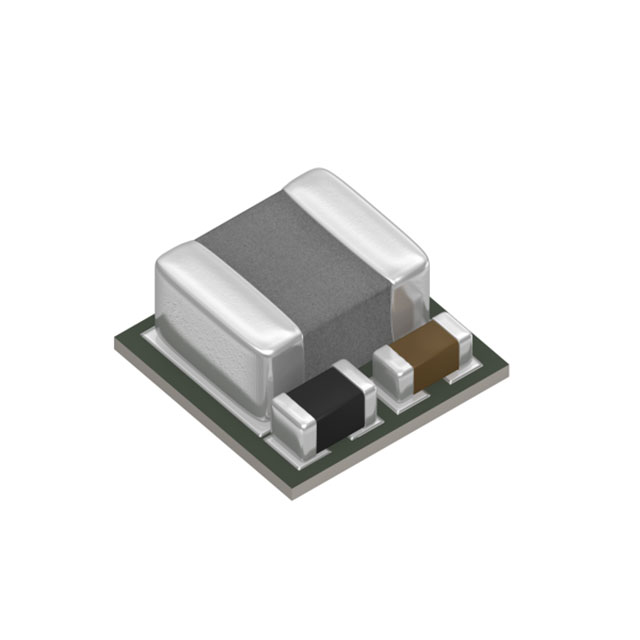

TDK DC-DC稳压器 FS1404-2500-AL

FS1404-2500-AL概述

    # FS1404 µPOL™: High-Efficiency Micro-Point-of-Load Regulator
    Product Introduction
    The FS1404 µPOL™ is a highly integrated and compact micro-point-of-load (µPOL™) voltage regulator designed for efficient DC/DC conversion. It features an integrated inductor, making it ideal for applications requiring minimal footprint. Key attributes include:
    - Product Type: µPOL™ buck regulator.
    - Main Function: Converts input voltage to preset output voltages (2.5V or 3.3V).
    - Applications: Used in storage systems, telecommunications, industrial devices, servers, computing peripherals, and distributed point-of-load architectures.
    Technical Parameters
    The following technical specifications summarize the capabilities of the FS1404 µPOL™:
    | Parameter | Min | Typ | Max | Units |

    | Input Voltage Range | 4.5 | 16 V |
    | Output Current Capability | 0 | 4 A |
    | Operating Temperature Range | -40 | 125 °C |
    | Package Size | 3.3x3.3x1.5 mm³ |
    Additional notable features include programmability via the I²C serial bus, protection against over-voltage and short circuits, and compliance with RoHS and REACH standards.
    Product Features and Advantages
    The FS1404 µPOL™ offers several distinct advantages:
    - Compact Design: Its µPOL™ package measures just 3.3mm x 3.3mm x 1.5mm, enabling space-efficient integration.
    - Plug-and-Play: No external compensation required, simplifying design and reducing component count.
    - Programmable Operation: Users can customize settings like output voltage and operational thresholds using the I²C bus.
    - High Efficiency: Excellent load handling capability and high efficiency under various operating conditions.
    - Robust Protection: Built-in features ensure safe operation across extreme environmental conditions.
    These features make the FS1404 µPOL™ a top choice for modern electronic systems demanding compactness, flexibility, and reliability.
    Application Case Studies and Usage Recommendations
    Application Examples:
    1. Storage Applications: Ideal for SSD controllers due to its ability to provide stable power even under high transient demands.
    2. Telecom Equipment: Suitable for network switches and routers where tight tolerance and quick response are critical.
    3. Industrial Control Systems: Effective in harsh environments due to its wide temperature range and robust protection mechanisms.
    Usage Suggestions:
    - Voltage Selection: Choose the appropriate output voltage (2.5V or 3.3V) based on downstream device requirements.
    - Heat Dissipation: Ensure proper thermal management in densely populated PCB designs to maintain optimal performance.
    - Programming Settings: Fine-tune settings using the I²C bus to match specific application needs, enhancing system adaptability.
    Compatibility and Support
    The FS1404 µPOL™ is compatible with a wide array of electronic components, facilitating seamless integration into existing designs. TDK provides comprehensive documentation and support, including application notes and firmware updates, ensuring smooth deployment and maintenance.
    Common Issues and Solutions
    | Problem | Solution |

    | Unstable Output Voltage | Verify I²C programming and check external capacitance. |
    | Excessive Heat | Improve heat dissipation through better PCB layout. |
    | Inadequate Short-Circuit Handling | Check fuse or reset protection circuits. |
    Conclusion and Recommendation
    The FS1404 µPOL™ stands out as a highly efficient, feature-rich DC/DC converter suitable for a variety of advanced electronic systems. Its compact form factor, ease of use, and comprehensive protection make it an ex

FS1404-2500-AL参数

参数
功能 -
拓扑 -
最大输出电压 2.5V
输出数量 1
输出类型 Fixed
最大输入电压 16V
同步整流器 -
最小输入电压 4.5V
最小输出电压 -
开关频率 1.3MHz
长*宽*高 3.3mm*3.3mm*1.5mm
安装方式 贴片安装,黏合安装
应用等级 商用级
零件状态 在售
包装方式 卷带包装

FS1404-2500-AL厂商介绍

TDK公司是一家全球领先的电子组件制造商,总部位于日本东京。公司创立于1935年,以生产铁氧体磁芯起家,经过多年的发展,现已成为电子元器件领域的佼佼者。

TDK的主营产品涵盖了多个领域,主要包括:

1. 被动元件:包括电容器、电感器、滤波器等,广泛应用于消费电子、通信设备、汽车电子等领域。

2. 传感器:包括温度、湿度、压力、加速度等传感器,应用于工业自动化、医疗设备、汽车电子等领域。

3. 磁性材料:包括铁氧体磁芯、磁粉芯等,应用于电源、变压器、电机等领域。

4. 电源及能源:包括电池、电源模块等,应用于便携式设备、电动汽车等领域。

TDK的优势在于:

1. 技术创新:TDK拥有强大的研发实力,不断推出高性能、高可靠性的新产品。

2. 品质保证:TDK严格把控产品质量,为客户提供高品质的产品。

3. 客户服务:TDK在全球设有多个销售和服务网点,为客户提供及时、专业的技术支持和售后服务。

4. 环保理念:TDK积极推行绿色生产,致力于减少生产过程中的能源消耗和废弃物排放。

FS1404-2500-AL数据手册

厂牌 PDF简要描述 下载
TDK DC-DC稳压器 TDK FS1404-2500-AL FS1404-2500-AL数据手册

FS1404-2500-AL封装设计

查看详情并下载
Symbol
Footprint
3D Model
