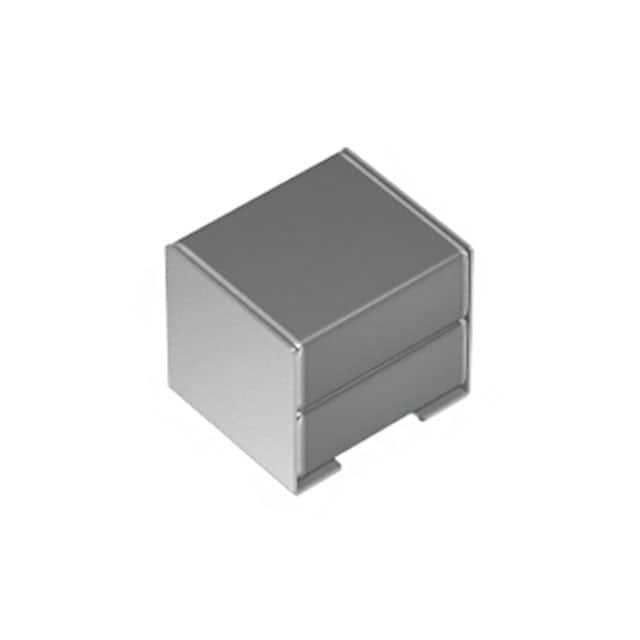

CKG57NC0G2E304J500JJ

产品分类: 陶瓷电容
厂牌: TDK
产品描述: 300nF ±5% C0G(NP0) 250V 贴片安装 6mm*5mm*5mm
供应商型号: 810-CKG57NCG2E304J5J
供应商: Mouser
标准整包数: 1
TDK 陶瓷电容 CKG57NC0G2E304J500JJ

CKG57NC0G2E304J500JJ概述

    Multilayer Ceramic Chip Capacitors (MLCCs): CKG Series
    Product Introduction
    TDK's CKG series represents a premium line of multilayer ceramic chip capacitors (MLCCs), specifically designed for automotive-grade applications. Known as "MEGACAP," these capacitors feature metal frames attached to their terminal electrodes, offering superior mechanical and thermal shock resistance. The series includes single-type and stacked-type configurations, with dimensions ranging from 3225 (1210 inches) to 5750 (2220 inches). Key applications include smoothing and decoupling circuits, resonant circuits in wireless power transfer systems, and other automotive-specific electronics.
    Technical Parameters
    The CKG series MLCCs come equipped with several unique technical parameters:
    - Mechanical Stress Resistance: The metal frame absorbs thermal shock and board flexing stress, enhancing durability.
    - Capacitance Range: Offers capacitance values spanning nF to µF, including C0G (temperature-stable) and X7R/X7S/X7T (temperature-compensated) types.
    - Voltage Ratings: From 16V to 1000V DC.
    - Environmental Compatibility: Operates within -55°C to +125°C, suitable for extreme automotive environments.
    - Physical Specifications:
    - Single Type Dimensions: 3.60 x 2.60 mm (L x W) for CKG32K.
    - Stacked Type Dimensions: 5.00 x 3.50 mm (L x W) for CKG45N.
    - Standard Thickness: 3.35 mm (single type), 5.00 mm (stacked type).
    Product Features and Advantages
    The CKG series offers distinct advantages:
    1. Enhanced Mechanical Robustness: The metal frame significantly improves stress resilience.
    2. High-Capacity Stacking: Stacked capacitors double the effective capacitance, optimizing space utilization.
    3. C0G Characteristics: Excellent stability against temperature changes and DC bias effects.
    4. AEC-Q200 Compliance: Ensures reliability and compliance with automotive standards.
    5. Versatile Mounting: Can be mounted onto aluminum boards, broadening its applicability.
    Applications and Use Cases
    These capacitors are ideal for demanding automotive electronics, including:
    - Smoothing Circuits: Ensuring consistent power delivery in critical vehicle systems.
    - Decoupling Applications: Stabilizing voltage levels across circuits.
    - Resonant Circuits: Supporting wireless power transfer systems with minimal loss.
    Compatibility and Support
    The CKG series is compatible with a wide range of electronic systems, particularly those leveraging automotive-grade components. TDK provides comprehensive delivery specifications, covering all critical features and safety considerations. Additionally, detailed catalog numbers guide users through specific models and specifications.
    Common Issues and Solutions
    Some typical concerns and resolutions include:
    - Overheating: Ensure proper ventilation and heat dissipation strategies.
    - Incorrect Placement: Follow recommended mounting guidelines for optimal performance.
    - Component Degradation: Regularly check electrical characteristics during system maintenance.
    Conclusion and Recommendation
    Overall, the CKG series is an excellent choice for automotive engineers seeking robust, high-capacity capacitors with strong environmental adaptability. Its superior mechanical stress resistance, versatile stacking options, and compliance with stringent automotive standards make it a standout solution. While the higher-end models may incur slightly higher costs, the reliability and performance justify the investment. Highly recommended for automotive-grade applications where performance and durability are paramount.
    Final Rating: ★★★★★

CKG57NC0G2E304J500JJ参数

参数
电容值 300nF
容差 ±5%
温度系数 C0G(NP0)
额定电压 250V
长*宽*高 6mm*5mm*5mm
安装方式 贴片安装
应用等级 汽车级
零件状态 在售
包装方式 卷带包装
