WT41U-A-AI56IAP

产品分类: 蓝牙芯片
产品描述:
供应商型号: SYE-WT41U-A-AI56IAP
供应商: 海外现货
标准整包数: 1
SILICON LABORATORIES 蓝牙芯片 WT41U-A-AI56IAP

WT41U-A-AI56IAP概述

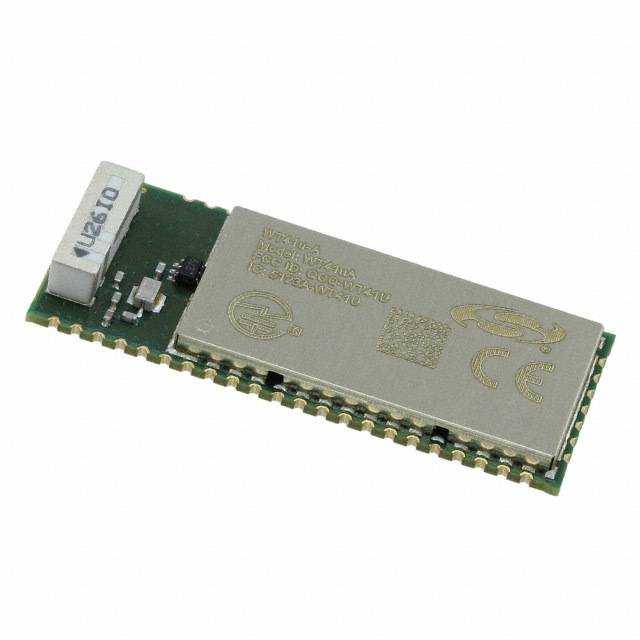

    WT41u Bluetooth Module: A Comprehensive Technical Overview
    The WT41u is a state-of-the-art Bluetooth module designed for developers seeking to integrate Bluetooth functionality into their products with minimal RF and Bluetooth expertise. This article delves into the technical specifications, application areas, features, and practical implementation aspects of the WT41u.
    Product Introduction
    The WT41u is a long-range Bluetooth module operating in Class 1, capable of reaching distances up to 650 meters with its integrated chip antenna or up to 1 km with an external dipole antenna. It supports Bluetooth 2.1 + EDR (Enhanced Data Rate), ensuring robust and efficient wireless communication. The module integrates a fully implemented protocol stack and includes all necessary Bluetooth radio elements, making it an ideal choice for developers seeking a plug-and-play Bluetooth solution. The WT41u also offers flexibility through various connectivity options, including an internal chip antenna, an RF pin for a custom on-board antenna, or a U.FL connector for external antennas.
    Applications:
    - Handheld Terminals: Suitable for inventory management, point-of-sale systems, and other portable applications.
    - Industrial Devices: Ideal for automation, robotics, and remote sensing solutions.
    - Personal Computing: Integrates seamlessly with PCs, PDAs, and computer accessories.
    - Automotive Systems: Used in automotive diagnostics and entertainment systems.
    - Access Points: Supports applications requiring short- to medium-range wireless networking.
    Technical Parameters
    The WT41u's robust technical specifications ensure reliability across a wide range of operating conditions:
    | Parameter | Value | Units |
    |
    | Operating Temperature Range | -40°C to +85°C | °C |
    | Storage Temperature | -40°C to +85°C | °C |
    | Supply Voltage (VDD/VDDPA) | 3.0–3.6 | V |
    | Transmit Power | 17 dBm | dBm |
    | Receive Sensitivity | -94 dBm | dBm |
    | RF Bandwidth | <1000 | kHz |
    Key Performance Metrics:
    - TX Power Control Range: -13 to +17 dBm.
    - Current Consumption: Standby: 1.2 mA; TX: 85–136 mA; RX: 44 mA.
    - Sensitivity: Excellent reception for data rates up to 3 Mbps.
    Product Features and Advantages
    The WT41u excels due to its comprehensive feature set and adaptability:
    1. End Product Qualification: Fully certified under Bluetooth 2.1 + EDR, CE, FCC, and IC standards.
    2. High Performance: Features a maximum transmit power of 17 dBm and receive sensitivity down to -94 dBm, enabling long-range and reliable communication.
    3. Versatile Connectivity Options: Integrated chip antenna, external RF connector, and U.FL port support.
    4. GPIO Flexibility: Provides 6 general-purpose IOs and 1 analog IO with programmable strengths and pull-up/pull-down options.
    5. User-Friendly Firmware: Offers both iWRAP and HCI firmware, allowing developers to operate the module via simple ASCII commands or standard HCI protocols.
    6. Industrial Grade: Operates in extreme temperatures (-40°C to +85°C) and complies with RoHS standards.
    Application Case Studies and Usage Recommendations
    The WT41u is deployed in a variety of scenarios, including handheld terminals, industrial automation, and automotive diagnostics:
    1. Inventory Management: A handheld terminal leveraging the WT41u can utilize its robust range to communicate with fixed docking stations, enhancing real-time inventory tracking.
    2. Industrial Automation: In harsh environments, the WT41u’s rugged design ensures reliable wireless connectivity between sensors and control units.
    3. Automotive Diagnostics: Embedded in vehicles, the WT41u facilitates secure and seamless communication between onboard diagnostic tools and exter

WT41U-A-AI56IAP参数

参数
典型灵敏度 -
最小工作频率 -
支持协议 -
范围 -
ISM带宽 -
最小工作供电电压 -
最大工作供电电压 -
最大工作频率 -
接口类型 -
最大数据速率 -
长*宽*高 35.3mm*14mm*3.85mm
安装方式 贴片安装
零件状态 新设计不推荐
包装方式 卷带包装

WT41U-A-AI56IAP厂商介绍

Silicon Laboratories(简称SiLabs)是一家全球领先的半导体公司,专注于开发高性能、低功耗的模拟、混合信号和无线微控制器(MCU)产品。公司成立于1996年,总部位于美国德克萨斯州奥斯汀。

SiLabs的主要产品分为以下几类:
1. 微控制器(MCU):包括EFM32、EFR32等系列,广泛应用于物联网(IoT)、智能家居、工业控制等领域。
2. 无线产品:如Zigbee、Thread、Bluetooth、Wi-Fi等无线通信模块,用于智能设备间的无线连接。
3. 模拟和混合信号产品:包括电源管理、音频、接口等芯片,服务于消费电子、医疗、汽车等行业。
4. 开发工具和软件:提供开发板、调试器和软件工具,帮助客户快速开发和测试产品。

SiLabs的优势在于:
1. 高性能:产品具有高性能、低功耗的特点,满足各种严苛的应用需求。
2. 丰富的产品线:提供多种类型的芯片和解决方案,满足不同客户的需求。
3. 强大的技术支持:提供专业的技术支持和培训,帮助客户解决技术难题。
4. 快速响应市场:紧跟市场趋势,快速推出创新产品,满足客户需求。

WT41U-A-AI56IAP数据手册

厂牌 PDF简要描述 下载
SILICON LABORATORIES 蓝牙芯片 SILICON LABORATORIES WT41U-A-AI56IAP WT41U-A-AI56IAP数据手册

WT41U-A-AI56IAP封装设计

查看详情并下载
Symbol
Footprint
3D Model
价格梯度 中国香港交货 内地交货(含增值税)
1+ $ 61.5784 ¥ 516.027
库存: 371
起订量: 5 增量: 500
交货地:
最小起订量为:1
合计: ¥ 516.02
