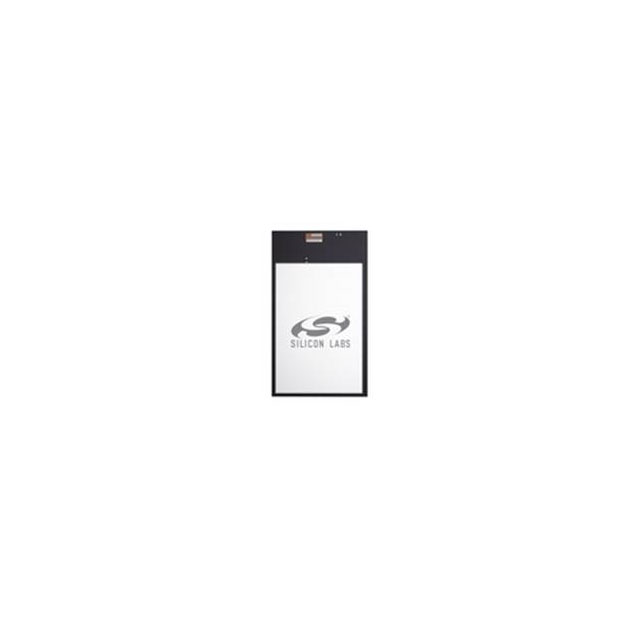

WGM160P022KGN2

产品分类: 无线收发芯片
产品描述: 16dBm WiFi 36.6mA 802.11b/g/n 72.2Mbps Ethernet,I²C,SPI,UART,USART,USB 141.3mA 96dBm SMD-55P 贴片安装 23.8mm*14.6mm*2.2mm
供应商型号: SYE-WGM160P022KGN2
供应商: 海外现货
标准整包数: 1
SILICON LABORATORIES 无线收发芯片 WGM160P022KGN2

WGM160P022KGN2概述

    WGM160P Wi-Fi® Module: A Comprehensive Guide
    1. Product Introduction
    The WGM160P Wi-Fi® Module is an ultra-low-power, standalone Wi-Fi module developed for IoT applications requiring excellent RF performance, minimal power consumption, and high-security standards. It is tailored for environments with high noise levels, ensuring robust communication even under challenging conditions. The module combines an 802.11b/g/n Wi-Fi radio with an integrated chip antenna, certifications, and comprehensive networking protocols, making it ideal for smart home, industrial automation, healthcare, and consumer electronics applications.
    2. Technical Parameters
    The WGM160P Wi-Fi Module offers impressive technical capabilities and specifications:
    | Parameter | Specification |

    | Operating Voltage | 3.0–3.6 V |
    | CPU Core | 32-bit ARM® Cortex-M4 |
    | Flash Memory | 2 MB |
    | RAM | 512 KB |
    | Antenna Type | Integrated chip antenna (optional external RF pin) |
    | TX Power | +16 dBm |
    | RX Sensitivity | -95.5 dBm |
    | Supported Standards | 802.11 b/g/n |
    | Temperature Range | -40°C to +85°C |
    | Module Dimensions | 23.8 mm x 14.2 mm x 2.3 mm |
    Additionally, the module supports advanced features such as:
    - Concurrent Wi-Fi Client (STA) & Access Point (AP) functionality.
    - Coexistence with external 2.4 GHz transceivers.
    - Compatibility with Gecko OS for simplified development.
    3. Product Features and Advantages
    The WGM160P excels in several key areas:
    1. Superior RF Performance: Equipped with an advanced RF architecture that ensures strong signal reception (-95.5 dBm RX sensitivity) and transmission (+16 dBm TX power).
    2. Flexible Design: Offers both built-in chip antennas and an RF pin option, providing antenna diversity through a secondary RF pin.
    3. Comprehensive Protocol Support: Supports TCP/IP stacks, HTTP servers, and multi-protocols (TCP/UDP) for seamless integration into diverse systems.
    4. Low Power Consumption: Features multiple low-power modes (EM0 to EM4S) to optimize battery life in portable and IoT devices.
    5. Security Compliance: Certified by Wi-Fi Alliance and meets CE/FCC/ISED regulatory standards.
    6. Extensive Connectivity Options: Supports UART/SPI/USB interfaces, 10/100 Ethernet, and CAN buses.
    4. Application Case Studies and Usage Tips
    The WGM160P is widely used in various applications:
    - Smart Home Devices: Control and monitor smart thermostats, door locks, and lighting systems efficiently.
    - Industrial Automation: Ideal for sensors, gateways, and actuators in manufacturing plants where reliable wireless communication is critical.
    - Consumer Electronics: Used in portable audio devices, wearable tech, and other consumer products.
    Usage Suggestions:
    - Utilize the module's concurrent Wi-Fi client and access point mode to simplify device configuration.
    - Ensure proper grounding and PCB layout to maximize RF performance.
    - Leverage the Gecko OS for quick prototyping and efficient development.
    5. Compatibility and Support
    The WGM160P is compatible with a wide range of peripherals and hosts:
    - It seamlessly works with external antennas and coexists with other 2.4 GHz devices.
    - Customers can use tools like the SLWSTK6121A Wireless Starter Kit for accelerated development.
    - The module comes pre-programmed with the Gecko OS kernel, but customization is possible via OTA updates.
    Silicon Labs provides extensive support, including documentation, software libraries, and hardware kits, ensuring developers can in

WGM160P022KGN2参数

参数
接口类型 Ethernet,I²C,SPI,UART,USART,USB
最小工作频率 -
最大工作供电电压 -
模块/芯片分类 -
支持协议 802.11b/g/n
发送机数量 -
最大数据速率 72.2Mbps
接收电流 36.6mA
典型供电电流 141.3mA
典型输出功率 16dBm
最小工作供电电压 -
接收机数量 -
调制方式 -
传输电流 -
射频系列/标准 WiFi
最大工作频率 -
典型灵敏度 96dBm
长*宽*高 23.8mm*14.6mm*2.2mm
通用封装 SMD-55P
安装方式 贴片安装
零件状态 停产
