BGM113A256V1

产品分类: 蓝牙芯片
产品描述: 93dBm 50m 2.4GHz 2.4835GHz 1Mbps I²C,SPI,UART 贴片安装 15.73mm*9.15mm*1.9mm
供应商型号: SYE-BGM113A256V1
供应商: 海外现货
标准整包数: 1

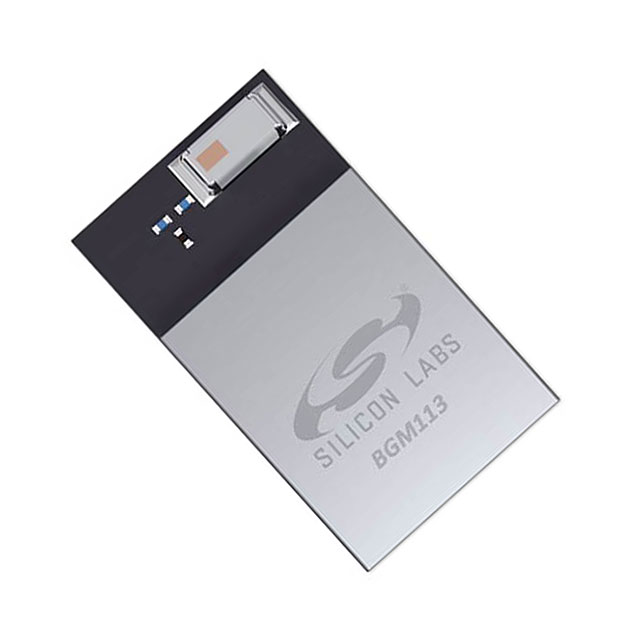

SILICON LABORATORIES 蓝牙芯片 BGM113A256V1

BGM113A256V1概述

    # BGM113 Blue Gecko Bluetooth® Module Technical Overview
    Product Introduction
    The BGM113 Blue Gecko Bluetooth® Module is a compact, low-power Bluetooth Low Energy (BLE) solution designed for applications where size, reliability, and ease of integration are critical. This module combines the functionality of a Bluetooth radio, a software stack, and pre-defined profiles into a single, easy-to-use package, eliminating the need for an external microcontroller in many use cases. Its key features make it ideal for IoT sensors, consumer electronics, health and wellness devices, industrial automation systems, and accessories for smart phones and tablets.
    Technical Parameters
    Below is a concise summary of the technical specifications for the BGM113:
    | Parameter | Specification |

    | Protocol | Bluetooth® 4.2 |
    | RF Range | Up to 50 meters |
    | Output Power | Up to +3 dBm |
    | RX Sensitivity | Down to -92 dBm |
    | Processor Core | 32-bit ARM® Cortex®-M4 |
    | Processing Speed | 38.4 MHz |
    | Flash Memory | 256 KB |
    | RAM | 32 KB |
    | Energy Modes | EM0-Active (63 µA/MHz), EM2-Deep Sleep (2.5 µA), EM3-Stop (2.1 µA) |
    | Temperature Range | -40°C to +85°C |
    | Power Supply | 1.85V to 3.8V |
    | Size | 9.15 x 15.73 x 1.9 mm |
    Product Features and Advantages
    The BGM113 offers several standout features and advantages:
    - High Integration: Combines BLE radio, protocol stack, and memory on a single chip.
    - Low Power Consumption: Energy-efficient modes reduce overall system power usage.
    - Wide Application Scope: Suitable for various industries including health, retail, home automation, and mobile accessories.
    - Security Features: Supports AES encryption, SHA hashing, and ECC cryptography for secure communications.
    - Flexible Connectivity: Compatible with a wide range of peripherals via GPIO and I2C interfaces.
    Application Cases and Usage Suggestions
    The BGM113 is versatile across numerous fields:
    - IoT Sensors: Use for wireless sensor networks where low power consumption is essential.
    - Health Monitoring Devices: Ideal for wearable devices requiring continuous BLE connectivity.
    - Consumer Electronics: Perfect for smart remote controls or wireless audio accessories.
    Usage Recommendations:
    - Ensure proper antenna design to maximize RF efficiency.
    - Utilize EM2 and EM3 modes for optimal energy savings during idle states.
    - Leverage the Peripheral Reflex System for automated peripheral interactions without additional code execution.
    Compatibility and Support
    The BGM113 supports compatibility with standard protocols and hardware interfaces, ensuring seamless integration into existing designs. Silicon Labs provides comprehensive documentation, software tools, and customer support to assist developers throughout the design process.
    Common Issues and Solutions
    Here are some typical issues users might face along with their solutions:
    - Interference: Ensure proper grounding and shielding around the module.
    - Power Consumption: Optimize firmware to minimize wake cycles and leverage sleep modes effectively.
    - Range Limitations: Adjust antenna placement or use an external antenna for extended reach.
    Summary and Recommendation
    The BGM113 Blue Gecko Bluetooth® Module excels in delivering robust BLE connectivity with minimal power consumption and a high level of integration. It is recommended for projects requiring efficient, reliable, and secure wireless communica

BGM113A256V1参数

参数
ISM带宽 -
最小工作供电电压 -
最大数据速率 1Mbps
范围 50m
典型灵敏度 93dBm
最大工作频率 2.4835GHz
接口类型 I²C,SPI,UART
最小工作频率 2.4GHz
最大工作供电电压 -
支持协议 -
长*宽*高 15.73mm*9.15mm*1.9mm
安装方式 贴片安装
零件状态 停产
包装方式 卷带包装

BGM113A256V1厂商介绍

Silicon Laboratories(简称SiLabs)是一家全球领先的半导体公司,专注于开发高性能、低功耗的模拟、混合信号和无线微控制器(MCU)产品。公司成立于1996年,总部位于美国德克萨斯州奥斯汀。

SiLabs的主要产品分为以下几类:
1. 微控制器(MCU):包括EFM32、EFR32等系列,广泛应用于物联网(IoT)、智能家居、工业控制等领域。
2. 无线产品:如Zigbee、Thread、Bluetooth、Wi-Fi等无线通信模块,用于智能设备间的无线连接。
3. 模拟和混合信号产品:包括电源管理、音频、接口等芯片,服务于消费电子、医疗、汽车等行业。
4. 开发工具和软件:提供开发板、调试器和软件工具,帮助客户快速开发和测试产品。

SiLabs的优势在于:
1. 高性能:产品具有高性能、低功耗的特点,满足各种严苛的应用需求。
2. 丰富的产品线:提供多种类型的芯片和解决方案,满足不同客户的需求。
3. 强大的技术支持:提供专业的技术支持和培训,帮助客户解决技术难题。
4. 快速响应市场:紧跟市场趋势,快速推出创新产品,满足客户需求。

BGM113A256V1数据手册

厂牌 PDF简要描述 下载
SILICON LABORATORIES 蓝牙芯片 SILICON LABORATORIES BGM113A256V1 BGM113A256V1数据手册

BGM113A256V1封装设计

查看详情并下载
Symbol
Footprint
3D Model
