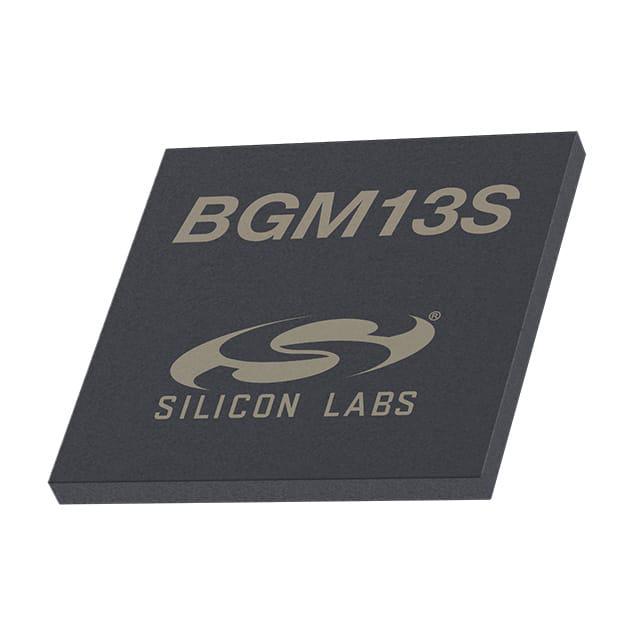

BGM13S22F512GN-V3R

产品分类: 无线收发芯片
产品描述: 8dBm 8.9mA Bluetooth 10.5mA GFSK 3.8V 2Mbps IrDA,I²C,I²S,SPI,UART 102.1dBm 1.8V SMD-51P 贴片安装
供应商型号: SYE-BGM13S22F512GN-V3R
供应商: 海外现货
标准整包数: 1
SILICON LABORATORIES 无线收发芯片 BGM13S22F512GN-V3R

BGM13S22F512GN-V3R概述

    BGM13S Blue Gecko Bluetooth® SiP Module Technical Overview
    Product Introduction
    The BGM13S is Silicon Labs' first System-in-Package (SiP) module solution designed to offer Bluetooth 5 connectivity. This compact module integrates a high-performance 32-bit ARM Cortex®-M4 microcontroller with extensive peripheral features, making it ideal for a variety of applications requiring low power consumption, robust RF performance, and easy integration into existing products.
    The module supports Bluetooth 5 protocols, including Bluetooth Mesh networking, with enhanced data rates and long-range communication capabilities. Its primary applications span wearables, IoT end nodes, health monitoring, industrial automation, and smart accessories.
    Technical Parameters
    | Parameter | Value |

    | Operating Voltage | 1.8 V to 3.8 V |
    | Operating Temperature | -40 °C to +85 °C |
    | Dimensions | 6.5 mm × 6.5 mm × 1.4 mm |
    | Flash Memory | 512 kB |
    | RAM | 64 kB |
    | GPIO Pins | 32 |
    | TX Power | Up to +19 dBm |
    | RX Sensitivity | -94.1 dBm @ 1 Mbps |
    | Key Protocols | Bluetooth 5, Bluetooth Mesh |
    | Regulatory Certifications | FCC, CE, IC, MIC, Telec |
    Product Features and Advantages
    1. Low Power Consumption: The BGM13S boasts advanced power management with multiple sleep modes (EM0–EM4), offering deep sleep currents as low as 1.4 μA and 87 μA/MHz active mode.
    2. High RF Performance: With up to +19 dBm TX power and a RX sensitivity of -94.1 dBm at 1 Mbps, it ensures reliable connections across different environments.
    3. Rich Peripheral Set: The module includes 32 GPIO pins, hardware crypto accelerators, and peripherals like ADC, DAC, op-amps, and timers for comprehensive functionality.
    4. Small Form Factor: At just 6.5 mm × 6.5 mm, it simplifies integration into space-constrained designs.
    Its combination of robust RF performance, small size, and rich feature set makes the BGM13S a competitive choice for developers seeking to add Bluetooth 5 connectivity with minimal engineering effort.
    Application Case Studies and Usage Recommendations
    The BGM13S is ideal for wearable devices, health monitors, industrial sensors, and smart IoT nodes. For example:
    - Health Monitoring: Embed the BGM13S in a wearable device to transmit biometric data to a smartphone app over Bluetooth 5. Use the RFSENSE capability to detect movement and trigger data transmission efficiently.
    - Smart Home Automation: Implement the module in gateway devices for reliable mesh network connectivity and deep sleep modes that extend battery life.
    Usage Tips:
    - Ensure proper RF layout per guidelines provided to maximize antenna efficiency and maintain peak gain of 1 dBi.
    - Utilize the EM0–EM4 modes effectively to minimize overall power consumption based on usage patterns.
    - Leverage the built-in security features, such as AES encryption and TRNG, to ensure secure data transmission.
    Compatibility and Support
    The BGM13S offers two antenna options: an integrated chip antenna or an RF pin for connecting external antennas. It is compatible with a wide range of tools and software provided by Silicon Labs, including the Gecko Bootloader and a comprehensive SDK. End users can access support through Silicon Labs' community forums, documentation, and direct technical assistance.
    Common Issues and Solutions
    | Issue | Solution |

    | Poor RX Sensitivity | Verify PCB layout; ensure correct antenna matching. |
    | Device Not Connecting | Check stack config

BGM13S22F512GN-V3R参数

参数
最大数据速率 2Mbps
射频系列/标准 Bluetooth
模块/芯片分类 -
典型输出功率 8dBm
典型灵敏度 102.1dBm
调制方式 GFSK
发送机数量 -
最大工作频率 -
接收机数量 -
最小工作供电电压 1.8V
最小工作频率 -
典型供电电流 -
最大工作供电电压 3.8V
接收电流 10.5mA
传输电流 8.9mA
支持协议 -
接口类型 IrDA,I²C,I²S,SPI,UART
通用封装 SMD-51P
安装方式 贴片安装
零件状态 在售
包装方式 卷带包装
