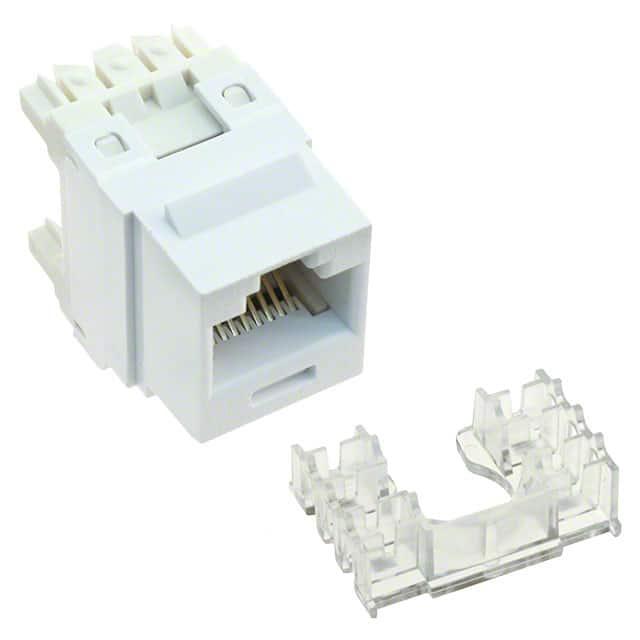

NK688MWH

产品分类: Keystone - 插件
厂牌: PANDUIT
产品描述: Conn RJ-45 F 8 POS IDT ST Cable Mount 8 Terminal 1 Port Cat 6
供应商型号: 2706520
供应商: 海外现货
标准整包数: 1
PANDUIT Keystone - 插件 NK688MWH

NK688MWH概述

    # ACTUAL SIZE
    Product Introduction
    The NETKEY Category 6 Punchdown Jack Module (Part Number: NK688M) is a high-performance electronic component designed for use in structured cabling systems. This module is color-coded to support both T568A and T568B wiring schemes, making it versatile for various applications within the telecommunications industry. The product is crafted with robust materials such as ABS/PC for the module housing and ABS for the retention cap, ensuring durability and reliability under diverse operating conditions.
    Applications: This universal connector module is widely used in commercial buildings, data centers, and office environments where structured cabling solutions are required. It supports connections between network equipment and devices, facilitating seamless communication across networks.
    Technical Parameters
    | Parameter | Value |

    | Product Type | Universal Punchdown Jack Module |
    | Wiring Compatibility | T568A and T568B |
    | Position/Wire Configuration| 8 Position, 8 Wire |
    | Weight | 0.90 oz (25.5g) |
    | Housing Material | ABS/PC |
    | Retention Cap Material | ABS |
    | Dimensions | Varies (Metric & Imperial) |
    | Operating Environment | Temperature: -20°C to +70°C |
    All Category 6 modules are designed to be universally compatible with both six- and eight-position modular plugs without damage, enhancing its adaptability and usability.
    Product Features and Advantages
    - Universal Design: Accepts both six- and eight-position modular plugs seamlessly.
    - Color Coding: Ensures easy identification for T568A and T568B wiring standards.
    - Material Durability: Utilizes ABS/PC and ABS for strength and longevity.
    - Compatibility: Works efficiently with standard networking hardware.
    - Ease of Installation: Streamlined punchdown process for quick deployment.
    These features make the NETKEY Category 6 Punchdown Jack Module an ideal choice for structured cabling systems requiring high-speed data transmission and reliability.
    Application Case Studies and Usage Recommendations
    Case Study:
    In a large corporate office setting, the module was installed to connect multiple desktop computers to a central server rack. By using the T568A configuration, network technicians ensured compatibility with existing infrastructure while maintaining optimal performance levels.
    Recommendation: For best results, ensure that all terminations are properly seated and secured to prevent signal degradation. Regular maintenance checks can help prolong the lifespan of the module.
    Example Use:
    For environments prone to electromagnetic interference (EMI), it is recommended to use shielded cabling in conjunction with this module to maintain signal integrity.
    Compatibility and Support
    The module is fully compatible with standard Category 6 cabling and is backward-compatible with lower-speed Category 5e systems. Panduit, the manufacturer, offers comprehensive technical support and replacement parts to ensure smooth operation and maintenance of the product.
    Common Issues and Solutions
    | Issue | Solution |

    | Poor Signal Quality | Ensure proper termination and cable length. |
    | Loose Connections | Recheck and tighten connections. |
    | Module Damage | Replace with new units if necessary. |
    Proper handling and adherence to installation guidelines can mitigate most issues effectively.
    Conclusion and Recommendation
    The NETKEY Category 6 Punchdown Jack Module (NK688M) excels in its design and functionality, offering unmatched versatility and reliability in structured cabling systems. Its ability to handle multiple configurations, combined with du

NK688MWH参数

参数
安装方式 导线安装
零件状态 在售
