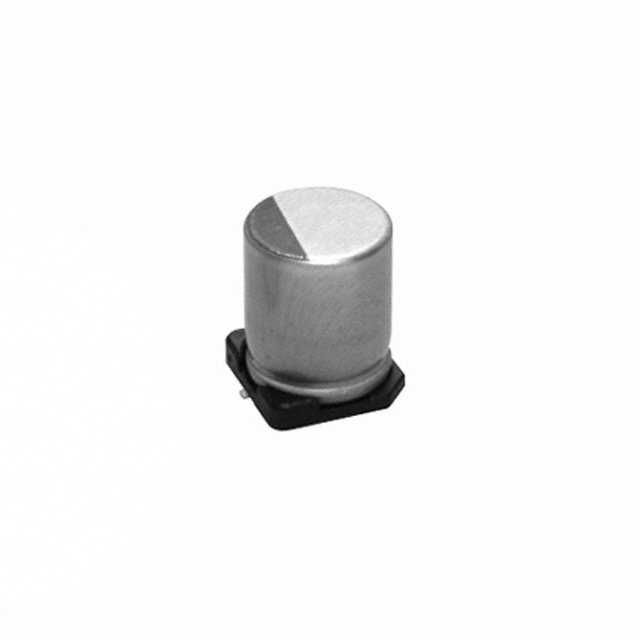

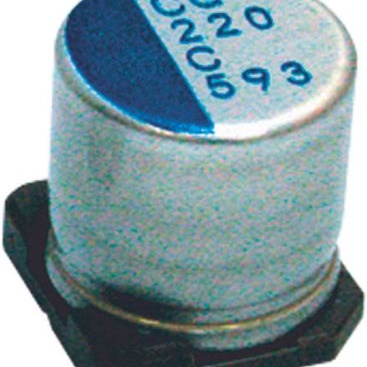

PCG0E272MCL1GS

产品分类: 铝电解电容
厂牌: NICHICON
产品描述: 2.7mF 2.5V ±20% 12mΩ 2000h@ 105°C 4.7A@ 100kHz 贴片安装 10.3mm*10.3mm*10mm
供应商型号: 647-PCG0E272MCL1GS
供应商: Mouser
标准整包数: 1
NICHICON 铝电解电容 PCG0E272MCL1GS

PCG0E272MCL1GS概述

    Conductive Polymer Aluminum Solid Electrolytic Capacitors
    Product Introduction
    The CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS, often referred to as PCG series capacitors, are advanced electronic components designed with higher capacitance, low equivalent series resistance (ESR), and high ripple current handling capabilities. These capacitors find extensive applications in power supply units, digital devices, audio systems, and other high-reliability electronic circuits due to their excellent performance characteristics.
    Technical Parameters
    Below are the key technical specifications for the PCG series capacitors:
    | Parameter | Value |

    | Temperature Range | –55°C to +105°C |
    | Rated Voltage Range | 2.5V to 16V |
    | Capacitance Range | 47µF to 4700µF |
    | Capacitance Tolerance | ±20% at 120Hz, 20°C |
    | Tangent of Loss Angle | ≤ specified value at 120Hz, 20°C |
    | ESR (Equivalent Series Resistance) | ≤ specified value at 100kHz, 20°C |
    | Leakage Current | ≤ specified value; post-rated voltage application |
    | Operating Frequency | 0Hz to 100kHz |
    | Maximum Ripple Current| Refer to chart based on frequency and capacitance |
    Key environmental conditions include:
    - Endurance: Withstands 2000 hours at 105°C.
    - Damp Heat: Complies with steady-state testing conditions for 1000 hours at 60°C and 90% RH.
    - Soldering Heat Resistance: Maximum peak temperatures of 260°C ensure reliable reflow soldering.
    Product Features and Advantages
    1. High Capacitance with Low ESR:
    - Ideal for applications requiring both large capacitance and low resistance, minimizing energy loss.

    2. Enhanced Ripple Current Handling:
    - Excellent performance in power filtering scenarios, especially under varying load conditions.
    3. Rugged Design:
    - Supports extended operating temperature ranges and withstands harsh environments.
    4. RoHS Compliance:
    - Environmentally friendly, compliant with EU RoHS directives.
    These advantages make PCG capacitors highly competitive in power electronics, industrial control systems, and consumer electronics markets.
    Application Cases and Usage Recommendations
    Application Examples:
    1. Power Supply Filtering:
    - In AC-to-DC converters, these capacitors ensure smooth filtering of output voltages.

    2. Audio Systems:
    - Utilized in smoothing filters to reduce noise and improve sound quality.
    3. Digital Circuitry:
    - Suits bypassing and decoupling applications to stabilize power lines.
    Usage Recommendations:
    - Ensure proper derating of voltage during circuit design to enhance lifespan.
    - Follow recommended soldering profiles to avoid thermal damage.
    Compatibility and Support
    - Compatibility: The PCG series is compatible with various standard SMD assembly processes, including lead-free reflow soldering.
    - Support: Manufacturers offer comprehensive technical support, including datasheets, evaluation kits, and troubleshooting guides.
    Common Issues and Solutions
    | Issue | Solution |

    | High ESR Value | Verify installation orientation and circuit conditions. |
    | Excessive Leakage Current | Check operating temperature and verify compliance with rated voltage limits. |
    | Physical Damage During Soldering | Adhere strictly to soldering temperature profiles.|
    Summary and Recommendation
    The CONDUCTIVE POLYMER ALUMINUM SOLID ELECTROLYTIC CAPACITORS (PCG series) stand out due to their high capacitance, low ESR, and robust endur

PCG0E272MCL1GS参数

参数
电容值 2.7mF
额定电压 2.5V
容差 ±20%
ESR-等效串联电阻 12mΩ
纹波电流 4.7A@ 100kHz
工作寿命 2000h@ 105°C
长*宽*高 10.3mm*10.3mm*10mm
安装方式 贴片安装
应用等级 通用级
零件状态 在售
包装方式 卷带包装
