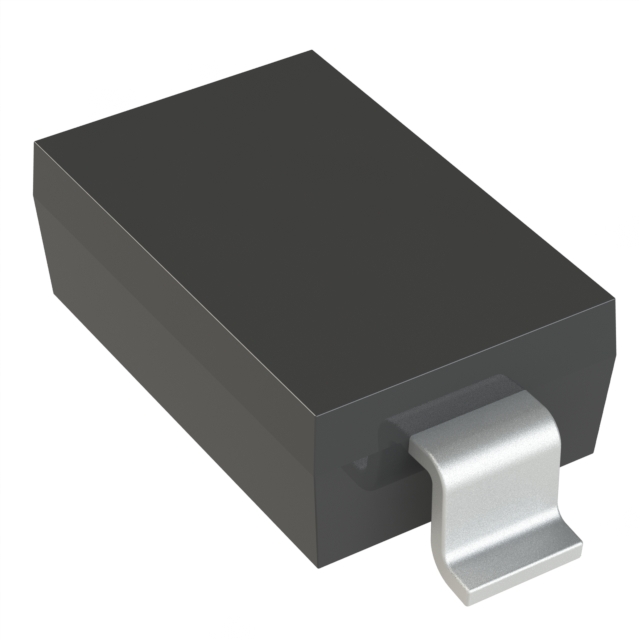

PDZ13BGWJ

产品分类: 齐纳(稳压)二极管
厂牌: NEXPERIA
产品描述: 100nA 13V 10Ω SOD-123 贴片安装
供应商型号: 771-PDZ13BGWJ
供应商: Mouser
标准整包数: 1
NEXPERIA 齐纳(稳压)二极管 PDZ13BGWJ

PDZ13BGWJ概述

    Nexperia PDZ-GW Series: Single Zener Diodes in SOD123 Package
    Product Introduction
    The Nexperia PDZ-GW series is a collection of general-purpose Zener diodes packaged in the compact SOD123 format. These diodes are designed to deliver reliable performance in both consumer electronics and automotive applications. The PDZ-GW series is characterized by its non-repetitive peak reverse power dissipation capabilities and low forward voltage drop, making it ideal for applications requiring precise voltage regulation.
    Key Technical Parameters
    The following table summarizes the technical specifications of the PDZ-GW series:
    | Symbol | Parameter | Conditions | Min | Typ | Max | Unit |
    ||
    | VF | Forward Voltage | IF = 10 mA | - | - | 0.9 | V |
    IF = 100 mA | - | - | 1.1 | V |
    | Ptot | Total Power Dissipation | Tamb ≤ 25°C | - | - | 365 | mW |
    Pulse Test (tp ≤ 300 μs; δ ≤ 0.02) | - | - | 625 | mW |
    | PZSM | Non-Repetitive Peak Power | Pulse Test (tp = 100 μs; Tj = 25°C prior)| - | - | 40 | W |
    | Rth(j-a) | Thermal Resistance | Free Air | - | - | 340 | K/W |
    | Rth(j-sp) | Thermal Resistance | Solder Point | - | - | 50 | K/W |
    Product Features and Advantages
    1. High Non-Repetitive Peak Reverse Current: Supports up to 40 W of non-repetitive peak reverse current, making it suitable for high-power transient conditions.
    2. Wide Operating Voltage Range: Operates within a nominal voltage range of 2.4 V to 36 V, ensuring flexibility across various applications.
    3. Low Reverse Current: Minimal reverse current leakage ensures high efficiency in voltage regulation applications.
    4. Compact SOD123 Package: Facilitates surface-mounted designs, reducing board space requirements.
    5. Automotive Grade Certification: Complies with AEC-Q101 standards, making it suitable for automotive environments.
    Application Cases and Usage Recommendations
    The PDZ-GW series is widely used for general regulation functions. Potential applications include:
    - Voltage clamping in signal lines
    - Over-voltage protection in circuits
    - Regulating power supplies
    To maximize performance, it is recommended to:
    - Ensure proper thermal management in high-current applications.
    - Use the provided footprints for optimal soldering and thermal dissipation.
    Compatibility and Support
    The PDZ-GW series is compatible with standard FR4 printed circuit boards and can be mounted using reflow soldering methods. Nexperia offers comprehensive technical support and maintenance resources to assist users in integrating these components into their designs.
    Common Issues and Solutions
    | Issue | Solution |

    | High Reverse Leakage Current | Verify operating temperature and voltage levels. |
    | Excessive Heat Dissipation | Increase heat-sink size or improve airflow around the component. |
    | Unstable Forward Voltage | Check the quality of the solder joints and ensure compliance with the footprint dimensions. |
    Conclusion and Recommendation
    The Nexperia PDZ-GW series offers exceptional reliability and performance, making it an excellent choice for applications requiring precise voltage regulation. With its robust design, wide operating voltage range, and compliance with automotive standards, this series stands

PDZ13BGWJ参数

参数
Ir - 反向电流 100nA
最大齐纳阻抗 10Ω
电压容差 -
最大功率耗散 -
标称齐纳电压 13V
配置 -
最大功率 365mW
通用封装 SOD-123
安装方式 贴片安装
零件状态 在售
包装方式 卷带包装
