74HC1G08GV

产品分类: 其他逻辑器件
厂牌: NEXPERIA
产品描述: 2V 6V TSOP 贴片安装
供应商型号:
供应商:
标准整包数: 0

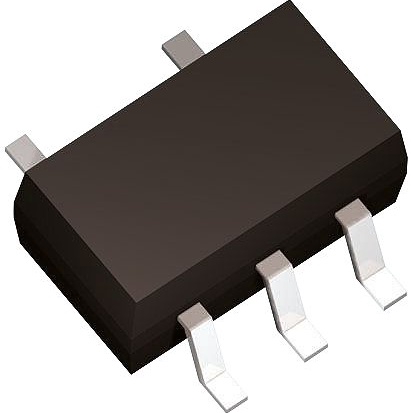

NEXPERIA 其他逻辑器件 74HC1G08GV

74HC1G08GV概述

    Product Overview: 74HC1G08 & 74HCT1G08 Dual Input AND Gate
    1. Product Introduction
    The 74HC1G08 and 74HCT1G08 are dual-input AND gates designed for various digital logic applications. These components are part of the HC and HCT families, which are renowned for their high-speed performance and low power consumption. These AND gates feature input clamp diodes, enabling compatibility with input voltages exceeding the supply voltage (VCC) through the use of current-limiting resistors. This makes them versatile for interfacing different types of circuits.
    The 74HC1G08 operates with CMOS-level input voltages, while the 74HCT1G08 is designed to handle TTL-level input voltages, making both versions compatible with a wide range of existing systems.
    2. Technical Parameters
    | Parameter | 74HC1G08 | 74HCT1G08 |
    |
    | Supply Voltage (VCC) | 2.0–6.0 V | 4.5–5.5 V |
    | Propagation Delay (ns)| 8–23 | 11–27 |
    | Output High Voltage (V)| ≥5.2 (at 5 V) | ≥3.7 (at 4.5 V) |
    | Output Low Voltage (V)| ≤0.4 (at 5 V) | ≤0.33 (at 4.5 V) |
    | Operating Temperature Range| -40°C to +85°C | -40°C to +125°C |
    Key Features:
    - Symmetrical output impedance.
    - High noise immunity.
    - Balanced propagation delays.
    - ESD protection: HBM exceeds 2000 V, MM exceeds 200 V.
    - Support for multiple packages, including TSSOP5 and SC-74A.
    3. Product Characteristics and Advantages
    The 74HC1G08 and 74HCT1G08 stand out due to their low power consumption and robust performance in high-speed logic operations. Their compatibility with both CMOS and TTL circuits simplifies integration into existing systems. Additionally, the compact SOT353-1 and SC-74A packages make them ideal for space-constrained designs. These features ensure reliability, precision, and long-term stability, making them highly competitive in the market.
    4. Application Case Studies and Usage Recommendations
    These AND gates are commonly used in digital signal processing, microcontroller interfacing, and bus drivers. Some practical applications include:
    - Digital Circuits: Used as basic building blocks for creating complex digital systems.
    - Buffer Circuits: Ideal for interfacing with TTL devices, ensuring proper signal levels.
    - Logic Controllers: Commonly employed in state machines and microprocessor circuits.
    Usage Tips:
    - Ensure proper grounding to minimize noise interference.
    - Use appropriate decoupling capacitors to maintain stable power supply.
    - Follow recommended operating conditions to maximize component lifespan.
    5. Compatibility and Support
    Both the 74HC1G08 and 74HCT1G08 are compatible with other components within the HC/HCT family, ensuring seamless integration into existing electronic systems. Nexperia offers comprehensive technical support, including detailed datasheets and application notes, to aid engineers in implementing these components effectively.
    6. Common Issues and Solutions
    - Problem: Incorrect input voltage levels.
    - Solution: Verify input voltages align with the specified ranges for each model.

    - Problem: Insufficient output drive capability.
    - Solution: Use external pull-up resistors if required, depending on the load.
    - Problem: Excessive propagation delay.
    - Solution: Optimize PCB layout and ensure correct power supply stability.
    7. Conclusion and Recommendation
    The 74HC1G08 and 74HCT1G08 are excellent choices for designers requiring reliable, low-power, and high-performance dual-input AND gates. With their broad compatibility, robust specifications, and Nexperia's strong support network, these components are highly recommended for use in modern digital circuits. Whether for hobbyist projects or professional applications, they provide a cost-effective and efficient solution.
    Final Verdict: Highly recommended for digital logic enthusias

74HC1G08GV参数

参数
最大工作供电电压 6V
最小工作供电电压 2V
3.1mm(Max)
1.7mm(Max)
1mm(Max)
通用封装 TSOP
安装方式 贴片安装
零件状态 在售

74HC1G08GV厂商介绍

Nexperia是一家全球领先的半导体公司,专注于设计、制造和销售广泛的小信号分立器件、逻辑芯片和功率MOSFETs。公司成立于2017年,总部位于荷兰,是全球最大的分立元件制造商之一。

Nexperia的主要产品分类包括:
1. 分立器件:包括二极管、晶体管、MOSFETs等。
2. 逻辑芯片:包括低功耗逻辑、标准逻辑、高速逻辑等。
3. 功率MOSFETs:包括低压、中压和高压MOSFETs。

Nexperia的产品广泛应用于汽车、工业、计算、消费电子等领域。在汽车领域,Nexperia的产品被用于动力总成、车身控制、安全系统等;在工业领域,产品被用于电机控制、电源管理等;在计算领域,产品被用于服务器、存储设备等;在消费电子领域,产品被用于手机、电脑、家电等。

Nexperia的优势在于:
1. 产品种类丰富,覆盖小信号分立器件、逻辑芯片和功率MOSFETs等。
2. 技术领先,拥有先进的制造工艺和封装技术。
3. 品质可靠,产品通过严格的质量控制和测试。
4. 客户服务好,提供快速响应和技术支持。
5. 供应链稳定,拥有全球布局的生产基地和物流网络。

74HC1G08GV数据手册

厂牌 PDF简要描述 下载
NEXPERIA 其他逻辑器件 NEXPERIA 74HC1G08GV 74HC1G08GV数据手册

74HC1G08GV封装设计

查看详情并下载
Symbol
Footprint
3D Model
