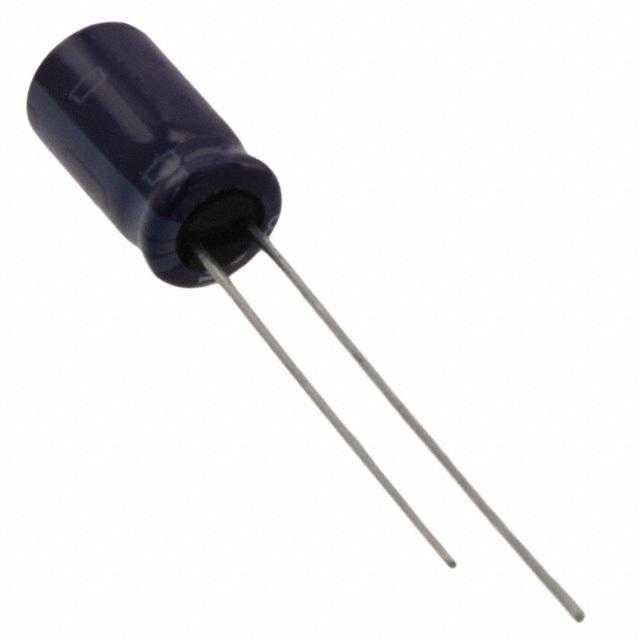

ELXZ100ELL221MFB5D

产品分类: 铝电解电容
厂牌: NIPPON CHEMI-CON
产品描述: 220μF 10V ±20% 2000h@ 105°C 145mA@ 120Hz,290mA@ 100kHz 通孔安装 6.3mm*11.5mm*13mm
供应商型号: ELXZ100ELL221MFB5D
供应商: Master
标准整包数: 2000
NIPPON CHEMI-CON 铝电解电容 ELXZ100ELL221MFB5D

ELXZ100ELL221MFB5D概述

    Miniature Aluminum Electrolytic Capacitors – LXZ Series
    Product Introduction
    The LXZ Series from the ELXZ family represents a cutting-edge solution for miniature aluminum electrolytic capacitors that combine advanced technology with superior performance. Designed with low impedance, downsized form factor, and operating temperature up to 105°C, these capacitors are ideal for a broad range of applications where space constraints and thermal resilience are critical. These capacitors leverage innovative electrolyte chemistry and state-of-the-art manufacturing techniques, making them suitable for applications such as automotive electronics, consumer electronics, industrial equipment, and telecommunications.
    Technical Parameters
    The LXZ Series features the following key technical specifications:
    | Parameter | Specification |

    | Operating Temperature | -55°C to +105°C |
    | Rated Voltage Range | 6.3VDC to 63VDC |
    | Capacitance Range | 150µF to 18,000µF |
    | Capacitance Tolerance | ±20% (M) at 20°C, 120Hz |
    | Leakage Current | I = 0.01CV or 3µA, whichever is greater. CV = Nominal Capacitance x Rated Voltage (µF x V) |
    | Dissipation Factor (tanδ) | Rated Voltage (Vdc): 0.08 to 0.22; Increase of 0.02 per 1,000µF increase above 1,000µF, measured at 20°C, 120Hz |
    | Impedance | Max. Impedance (Ω) at 100kHz: 0.015 to 0.050Ω |
    | Rated Ripple Current | 0.015Arms to 3.710Arms @ 105°C, 100kHz |
    | Endurance | 2,000 to 8,000 hours @ 105°C |
    These parameters highlight the capacitors' ability to withstand high-frequency applications, deliver stable performance under varying environmental conditions, and maintain reliability over extended periods.
    Product Features and Advantages
    The LXZ Series offers several unique features that set it apart from other capacitors in its class:
    - Innovative Electrolyte Technology: Utilizes advanced electrolytes to ensure excellent performance across a wide frequency spectrum.
    - Very Low Impedance at High Frequency: Ideal for power supply filtering and smoothing applications where low equivalent series resistance (ESR) is crucial.
    - High Ripple Current Capability: Supports up to 8,000 hours of endurance at 105°C with optimal ripple current handling.
    - RoHS Compliance and AEC-Q200 Certification: Ensures compliance with international standards for environmentally friendly materials and automotive-grade reliability.
    - Solvent Resistant Type: Available in a solvent-resistant variant for specific applications requiring chemical stability.
    The LXZ Series’ compact design, combined with robust electrical characteristics, makes it an ideal choice for high-density printed circuit boards and miniaturized ele

ELXZ100ELL221MFB5D参数

参数
电容值 220μF
额定电压 10V
容差 ±20%
ESR-等效串联电阻 -
纹波电流 145mA@ 120Hz,290mA@ 100kHz
工作寿命 2000h@ 105°C
长*宽*高 6.3mm*11.5mm*13mm
安装方式 通孔安装
应用等级 汽车级
零件状态 在售
包装方式 散装

ELXZ100ELL221MFB5D厂商介绍

Nippon Chemi-Con公司是一家日本领先的电容器制造商,专注于研发和生产高品质的电容器产品。公司主营产品包括铝电解电容器、薄膜电容器和陶瓷电容器等,广泛应用于工业、汽车、消费电子和通信设备等领域。

Nippon Chemi-Con的优势在于其强大的研发能力和技术创新。公司拥有先进的生产线和严格的质量控制体系,确保产品性能稳定可靠。此外,Nippon Chemi-Con还提供定制化服务,满足客户的个性化需求。凭借其卓越的品质和创新能力,Nippon Chemi-Con已成为全球电容器市场的领导者之一。

ELXZ100ELL221MFB5D数据手册

厂牌 PDF简要描述 下载
NIPPON CHEMI-CON 铝电解电容 NIPPON CHEMI-CON ELXZ100ELL221MFB5D ELXZ100ELL221MFB5D数据手册

ELXZ100ELL221MFB5D封装设计

查看详情并下载
Symbol
Footprint
3D Model
价格梯度 中国香港交货 内地交货(含增值税)
2000+ $ 0.075 ¥ 0.6235
4000+ $ 0.0719 ¥ 0.5982
6000+ $ 0.0709 ¥ 0.5891
8000+ $ 0.0709 ¥ 0.5514
26000+ $ 0.0651 ¥ 0.5331
50000+ $ 0.0637 ¥ 0.5218
100000+ $ 0.0628 ¥ 0.514
150000+ $ 0.0628 ¥ 0.514
库存: 2459
起订量: 2000 增量: 0
交货地:
最小起订量为:2000
合计: ¥ 1247
直接购买
加入购物车
