首页  >  产品百科  >  GRM1555C2A151GE01D

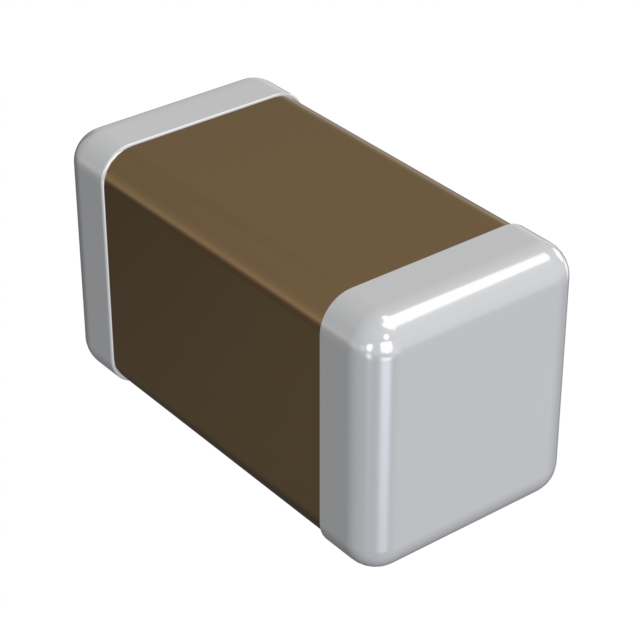

GRM1555C2A151GE01D

产品分类: 陶瓷电容
产品描述: 150pF ±2% C0G(NP0) 100V 0402 1mm(长度)*500μm(高度)
供应商型号: GRM1555C2A151GE01D
供应商: 国内现货
标准整包数: 10000
MURATA MANUFACTURING 陶瓷电容 GRM1555C2A151GE01D

GRM1555C2A151GE01D概述

    # Chip Multilayer Ceramic Capacitor for General Purpose
    Product Overview
    Product Introduction
    Murata’s GRM1555C2A151GE01 is a surface-mount chip multilayer ceramic capacitor designed for general-purpose electronic applications. Its small size (1005M/0402) and high-performance characteristics make it ideal for use in compact devices requiring stable capacitance across a wide temperature range.
    Key Features:
    - Type: Chip Multilayer Ceramic Capacitor
    - Function: Provides stable capacitance for general electronic circuits.
    - Applications: Consumer electronics, communication systems, automotive electronics, and industrial equipment.
    Technical Parameters
    Below are the key technical specifications for the GRM1555C2A151GE01:
    | Parameter | Specification |

    | Capacitance | 150 pF ±2% |
    | Rated Voltage | 100 V DC |
    | Temperature Characteristics | C0G (Class I, NP0) |
    | Dielectric Constant | Stable across -55°C to 125°C |
    | Package Size | 1005M (0402 metric) |
    | Temperature Coefficient | ±30 ppm/°C |
    | Operating Temperature Range | -55°C to +125°C |
    | Mounting Method | Reflow Soldering |
    | Package Type | Paper Tape Reel (20000 pcs/reel) |
    Product Features and Advantages
    1. Exceptional Stability: Utilizing the C0G (NP0) temperature compensation dielectric, this capacitor offers minimal temperature variation of capacitance, making it suitable for applications where stability is critical.
    2. High Reliability: Designed to withstand harsh environmental conditions and high temperatures.
    3. Compact Design: Small footprint (1005M/0402) enables efficient space utilization in dense circuit designs.
    4. Wide Operating Voltage Range: Up to 100V DC ensures compatibility with a broad range of circuits.
    Application Case Studies and Usage Recommendations
    Example Application: Time-Constant Circuits
    - Use Case: The capacitor’s low-temperature coefficient and stability make it ideal for use in precision time-constant circuits.
    - Recommendation: Ensure thorough testing in your specific operating conditions, particularly if capacitance tolerances are tight, as the aging effects could impact long-term performance.
    Example Application: Automotive Electronics
    - Use Case: Due to its robustness, it can be utilized in engine control units (ECUs) and other automotive subsystems where reliability under fluctuating temperatures is essential.
    - Recommendation: Use multiple units in series or parallel as needed, adhering to design guidelines to mitigate risk.
    Compatibility and Support
    - Compatibility: Works seamlessly with standard PCB fabrication processes and is compatible with lead-free solders (Sn-3.0Ag-0.5Cu).
    - Support: Murata provides extensive documentation and technical support for integration into complex systems.
    Common Issues and Solutions
    | Issue | Solution |

    | Capacitance Drift Over Time | Perform periodic checks and adjustments. |
    | Inadequate Solderability | Ensure proper handling and storage before mounting. |
    | Mechanical Damage | Avoid mechanical shocks during assembly and shipping. |
    Conclusion and Recommendation
    The GRM1555C2A151GE01 is a highly reliable chip multilayer ceramic capacitor suitable for applications demanding high precision and stability. With its excellent temperature characteristics, compact size, and wide operating voltage range, it stands out in both consumer and industrial electronics.
    We recommend this capacitor for projects w

GRM1555C2A151GE01D参数

参数
电容值 150pF
容差 ±2%
温度系数 C0G(NP0)
额定电压 100V
长*宽*高 1mm(长度)*500μm(高度)
通用封装 0402
包装方式 卷带包装

GRM1555C2A151GE01D厂商介绍

Murata Manufacturing(村田制作所)是一家日本的电子零件制造商,成立于1944年,总部位于京都。公司主要生产陶瓷电容器、电感器、滤波器、振荡器等被动电子元件,同时也涉足传感器、通信模块、电源模块等主动电子元件领域。

主营产品分类:
1. 被动元件:陶瓷电容器、电感器、滤波器、振荡器等。
2. 传感器:加速度传感器、温度传感器、压力传感器等。
3. 通信模块:蓝牙模块、Wi-Fi模块、NFC模块等。
4. 电源模块:DC/DC转换器、AC/DC转换器、电池管理等。

应用领域:
1. 消费电子:智能手机、平板电脑、电视等。
2. 汽车电子:车载信息娱乐系统、ADAS、电动汽车等。
3. 工业控制:自动化设备、机器人、能源管理等。
4. 医疗设备:诊断设备、监护设备、治疗设备等。

Murata Manufacturing的优势:
1. 技术创新:村田制作所在陶瓷电容器等被动元件领域具有世界领先技术。
2. 产品多样性:提供广泛的电子元件产品,满足不同应用需求。
3. 质量控制:严格的质量管理体系,确保产品的可靠性和稳定性。
4. 客户服务:全球销售和服务网络,为客户提供及时的技术支持和解决方案。

GRM1555C2A151GE01D数据手册

厂牌 PDF简要描述 下载
MURATA MANUFACTURING 陶瓷电容 MURATA MANUFACTURING GRM1555C2A151GE01D GRM1555C2A151GE01D数据手册

GRM1555C2A151GE01D封装设计

查看详情并下载
Symbol
Footprint
3D Model
价格梯度 中国香港交货 内地交货(含增值税)
10000+ ¥ 0.0722
100000+ ¥ 0.07
库存: 10000
起订量: 10000 增量: 10000
交货地:
最小起订量为:10000
合计: ¥ 722
直接购买
加入购物车
