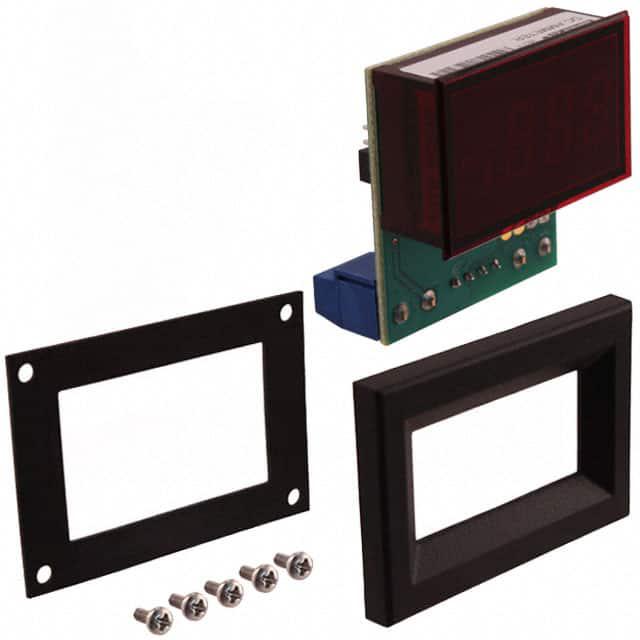

DCA5-20PC-6-DC4-RL-C

产品分类: 面板测量仪
产品描述: Murata Power Solutions 直流数字电流表, ±0.15 %精度, 46.38mmx32.51mm切面
供应商型号: SXE-DCA5-20PC-6-DC4-RL-C
供应商: 海外现货
标准整包数: 1
MURATA MANUFACTURING 面板测量仪 DCA5-20PC-6-DC4-RL-C

DCA5-20PC-6-DC4-RL-C概述

    Product Introduction
    Murata Power Solutions has introduced the DCA5-20PC Series of dc ammeters, which are specifically designed to display the output of popular 50mV and 100mV dc shunts. These compact ammeters can measure dc currents precisely across a wide range from 1.000A to 2000A. The series is notable for its self-contained design, requiring no external calibration or user-supplied components aside from an external shunt. The units come equipped with LED displays in brilliant blue, bright green, and standard red. Three power supply options cater to popular dc supply voltages ranging from 5V to 75Vdc, making them ideal for automotive, industrial, telecom, and marine applications.
    Technical Parameters
    - Measurement Range: Displays dc currents from 1.000A to 2000A.
    - Input Voltages: Supports 50mV and 100mV shunts.
    - Display: 0.37" (9.4mm) high LED display available in red, blue, or green.
    - Power Supply Options: 5V to 75Vdc.
    - Package Dimensions: 1.38" x 0.88" (35mm x 22mm).
    - Environmental Conditions: Operating temperature range of 0°C to +60°C; storage temperature range of -20°C to +75°C.
    - Power Consumption: 1W for 8-36V models; 75mW for 5-40V models.
    - Input Impedance: Approximately 1K ohms.
    - Overvoltage Rating: ±400mV.
    - Calibration Accuracy: ±0.1% FS.
    - Supply Voltage Range: +5.0V to +40Vdc (non-isolated), +8V to +36Vdc (isolated).
    - Terminal Blocks: Screw-style terminal blocks compatible with 16-22AWG wire.
    Product Features and Advantages
    The DCA5-20PC Series ammeters offer several unique features and advantages:
    1. Wide Range Measurement: The ability to measure currents from 1.000A to 2000A with high precision.
    2. Self-Contained Design: No need for external calibration or user-supplied components, reducing complexity and setup time.
    3. Flexible Display Options: Available in three vivid LED colors and multiple decimal point configurations to suit various applications.
    4. Compact Design: Small footprint (1.38" x 0.88") allows for easy integration into tight spaces.
    5. Isolated Power Supply Models: Ideal for high-side or floating shunt applications, ensuring electrical isolation.
    6. Ease of Installation: User-friendly terminal blocks and simple jumper configurations simplify setup and maintenance.
    Application Cases and Usage Recommendations
    The DCA5-20PC Series ammeters are well-suited for a variety of applications, including:
    - Automotive Systems: Monitoring high current loads such as starter motors or alternators.
    - Industrial Equipment: Tracking current flow in machinery and motors.
    - Telecommunications: Ensuring efficient power distribution in network equipment.
    - Marine Applications: Reliable current measurement in harsh maritime environments.
    Usage Suggestions:
    - Ensure proper grounding and shunt configuration based on the application.
    - Use external capacitors to mitigate noise effects on the display when dealing with noisy power supplies.
    - Select the appropriate decimal point settings to match the desired current range for precise readings.
    Compatibility and Support
    The DCA5-20PC Series ammeters are compatible with a range of power supply voltages and input ranges, supporting various shunt types. Murata Power Solutions provides comprehensive support, including detailed documentation, technical assistance, and calibration services to ensure optimal performance and longevity of the product.
    Common Issues and Solutions
    - Problem: Display flickering or inaccurate readings due to noise.
    - Solution: Add an external capacitor across TB1's inputs or the shunt's output terminals to reduce noise.

    - Problem: Incorrect decimal point setting leading to misinterpretation of current values.
    - Solution: Verify and adjust the decimal point configuration according to the specific shunt and current range.
    - Problem: Damage from incorrect shunt connection.<
