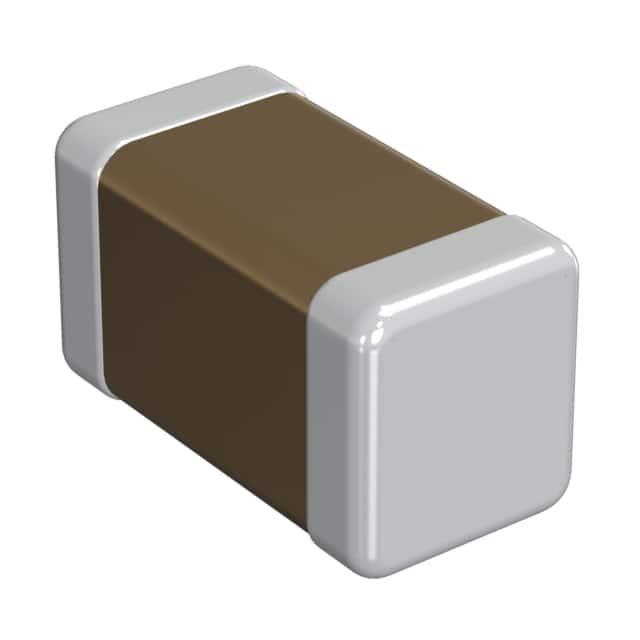

GRM0225C1E2R7BA03L

产品分类: 陶瓷电容
产品描述: 2.7pF ±0.1pF C0G(NP0) 25V 01005 贴片安装 400μm*200μm*200μm
供应商型号: GRM0225C1E2R7BA03L
供应商: 国内现货
标准整包数: 40000
MURATA MANUFACTURING 陶瓷电容 GRM0225C1E2R7BA03L

GRM0225C1E2R7BA03L概述

    Chip Multilayer Ceramic Capacitors for General Purpose
    GRM0225C1E2R7BA03 Product Technical Overview
    1. Product Introduction
    GRM0225C1E2R7BA03 is a high-quality chip multilayer ceramic capacitor designed for general electronic applications. It features advanced technology for reliability and precision, making it ideal for circuits requiring stable capacitance values across varying environmental conditions.
    - Product Type: Chip Multilayer Ceramic Capacitor
    - Main Functionality: Provides precise capacitance values, essential for applications like time-constant circuits, signal conditioning, and filtering.
    - Applications: Suitable for consumer electronics, automotive electronics, industrial controls, communication devices, and medical equipment.
    2. Technical Parameters
    Below is a concise summary of key technical specifications extracted from the product manual:
    | Parameter | Specification |

    | Part Number | GRM0225C1E2R7BA03 |
    | Capacitance | 2.7 pF |
    | Capacitance Tolerance | ±0.1 pF |
    | Rated Voltage | 25 V DC |
    | Temperature Coefficient | C0G (EIA), 0±30 ppm/°C |
    | Operating Temperature Range | -55°C to 125°C |
    | Package Size | 0402M (01005) |
    | Mounting Method | Reflow soldering |
    | IR Insulation Resistance | >10,000 MΩ at Room Temperature |
    | Self-heating Rise | <20°C at 25°C Ambient Temperature |
    3. Product Features and Advantages
    Unique Features:
    - Excellent temperature stability with a C0G temperature coefficient (0±30 ppm/°C).
    - High IR insulation resistance (>10,000 MΩ) ensures minimal leakage current.
    - Small form factor (0402M) supports high-density integration.
    - Low dissipation factor (D.F.) maintains low energy loss in circuits.
    Advantages:
    - Ensures consistent performance across a wide range of temperatures.
    - Ideal for high-reliability applications where capacitance drift must be minimized.
    - Offers superior performance compared to other high-dielectric capacitors with reduced aging effects.
    4. Application Case Studies and Usage Suggestions
    Application Scenarios:
    1. Time-Constant Circuits: GRM0225C1E2R7BA03 provides highly stable capacitance, making it ideal for applications requiring precise timing functions.
    2. Signal Conditioning: Its ability to minimize capacitance drift under varying conditions ensures enhanced signal integrity.
    3. Filtering: Excellent temperature stability and low noise make it suitable for power supply filtering.
    Usage Suggestions:
    - Ensure that the applied voltage does not exceed the rated voltage to prevent internal breakdown.
    - Place the capacitor horizontally to reduce stress on terminals during board flexing.
    - Use proper grounding techniques to minimize electromagnetic interference (EMI).
    5. Compatibility and Support
    Compatibility:
    - Compatible with standard lead-free Sn-3.0Ag-0.5Cu soldering processes.
    - Meets JEDEC standards and supports reel packaging for automated assembly lines.
    Support:
    - Manufacturer provides extensive technical support for integration into custom designs.
    - Post-sale assistance includes troubleshooting, application advice, and replacement policies.
    6. Common Issues and Solutions
    | Issue | Solution |

GRM0225C1E2R7BA03L参数

参数
电容值 2.7pF
容差 ±0.1pF
温度系数 C0G(NP0)
额定电压 25V
长*宽*高 400μm*200μm*200μm
通用封装 01005
安装方式 贴片安装
应用等级 通用级
零件状态 在售
包装方式 卷带包装

GRM0225C1E2R7BA03L厂商介绍

Murata Manufacturing(村田制作所)是一家日本的电子零件制造商,成立于1944年,总部位于京都。公司主要生产陶瓷电容器、电感器、滤波器、振荡器等被动电子元件,同时也涉足传感器、通信模块、电源模块等主动电子元件领域。

主营产品分类:
1. 被动元件:陶瓷电容器、电感器、滤波器、振荡器等。
2. 传感器:加速度传感器、温度传感器、压力传感器等。
3. 通信模块:蓝牙模块、Wi-Fi模块、NFC模块等。
4. 电源模块:DC/DC转换器、AC/DC转换器、电池管理等。

应用领域:
1. 消费电子:智能手机、平板电脑、电视等。
2. 汽车电子:车载信息娱乐系统、ADAS、电动汽车等。
3. 工业控制:自动化设备、机器人、能源管理等。
4. 医疗设备:诊断设备、监护设备、治疗设备等。

Murata Manufacturing的优势:
1. 技术创新:村田制作所在陶瓷电容器等被动元件领域具有世界领先技术。
2. 产品多样性:提供广泛的电子元件产品,满足不同应用需求。
3. 质量控制:严格的质量管理体系,确保产品的可靠性和稳定性。
4. 客户服务:全球销售和服务网络,为客户提供及时的技术支持和解决方案。

GRM0225C1E2R7BA03L数据手册

厂牌 PDF简要描述 下载
MURATA MANUFACTURING 陶瓷电容 MURATA MANUFACTURING GRM0225C1E2R7BA03L GRM0225C1E2R7BA03L数据手册

GRM0225C1E2R7BA03L封装设计

查看详情并下载
Symbol
Footprint
3D Model
价格梯度 中国香港交货 内地交货(含增值税)
40000+ ¥ 0.04
400000+ ¥ 0.0388
库存: 40000
起订量: 40000 增量: 40000
交货地:
最小起订量为:40000
合计: ¥ 1600
