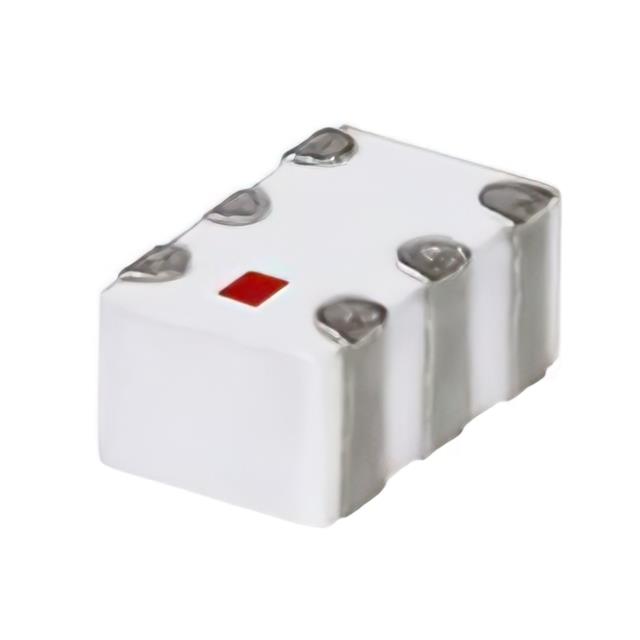

TCW2-133+

产品分类: 巴伦(balun)
厂牌: MINI-CIRCUITS
产品描述:
供应商型号: 139-TCW2-133+
供应商: Mouser
标准整包数: 1
MINI-CIRCUITS 巴伦(balun) TCW2-133+

TCW2-133+概述

    Mini-Circuits TCW2-133+ RF Transformer: Technical Overview
    Product Introduction
    The TCW2-133+ is a compact ceramic RF balun transformer designed for a wide frequency range of 7 to 13 GHz, providing a 1:2 impedance ratio. It is manufactured by Mini-Circuits, a leading provider of electronic components for various industries including satellite communication, radar systems, and high-speed data acquisition. This device is ideal for applications requiring precise signal balancing and isolation within demanding environments.
    Technical Parameters
    The key technical specifications of the TCW2-133+ include:
    - Frequency Range: 7000 MHz to 13000 MHz
    - Impedance Ratio: 50:100
    - Insertion Loss: Typically 1.0 dB, maximum 1.5 dB across the specified frequency range
    - Amplitude Unbalance: Typically 1.7 dB
    - Phase Unbalance: Typically 13 degrees
    - RF Power Input: Up to 2W at 25°C; derates linearly to 0.5W at 125°C
    - Operating Temperature: -55°C to +125°C
    - Size: 0.06" x 0.03" x 0.02" (1.60mm x 0.79mm x 0.51mm)
    - Package: Rugged ceramic package
    Product Features and Advantages
    The TCW2-133+ stands out due to its advanced features that cater to high-performance applications:
    - Wide Operating Temperature Range: Ensures reliability in extreme environmental conditions.
    - High Power Handling Capability: Supports up to 2W RF input power.
    - Compact Size: Meets tight space constraints with its 0603 footprint.
    - Advanced Construction: Utilizes LTCC technology for miniaturization and cost-effectiveness.
    - Superior Reliability: Encased in a durable ceramic package suitable for harsh environments.
    Application Cases and Usage Suggestions
    The TCW2-133+ is commonly used in:
    - Satellite Communication: For signal splitting and combining.
    - Clock Distribution Systems: To ensure synchronized clock signals.
    - Radar Systems: To manage signal integrity over broad bandwidths.
    - High-Speed ADC/DAC Interfaces: Enhancing data transmission efficiency.
    For optimal performance, consider implementing proper grounding techniques and adhering to recommended PCB layouts as provided in the documentation. Regular testing and calibration should also be conducted to maintain system accuracy.
    Compatibility and Support
    This product integrates seamlessly into designs requiring high-density PCB layouts. Mini-Circuits offers comprehensive support including application notes, demo boards, and technical assistance to aid users during development stages.
    Common Issues and Solutions
    Some common issues users might encounter include:
    - Excessive Insertion Loss: Ensure correct soldering and check for cold joints or misalignments.
    - Phase/Amplitude Imbalances: Verify that all connections match specified tolerances; recalibrate if necessary.
    - Overheating: Monitor ambient temperatures and adjust duty cycles accordingly.
    Conclusion and Recommendation
    Overall, the Mini-Circuits TCW2-133+ represents an excellent choice for engineers seeking reliable RF transformers capable of handling critical tasks across multiple sectors. Its robust design, wide operational parameters, and compatibility make it highly competitive against alternatives. We strongly recommend this component for projects demanding precision and durability in their electronic assemblies.

TCW2-133+参数

参数
不平衡端口阻抗 -
相位差 -
最大插入损耗 -
回波损耗 -
最小工作频率 -
平衡端口阻抗 -
共模抑制比CMRR -
振幅差 -
最大工作频率 -
包装方式 卷带包装
