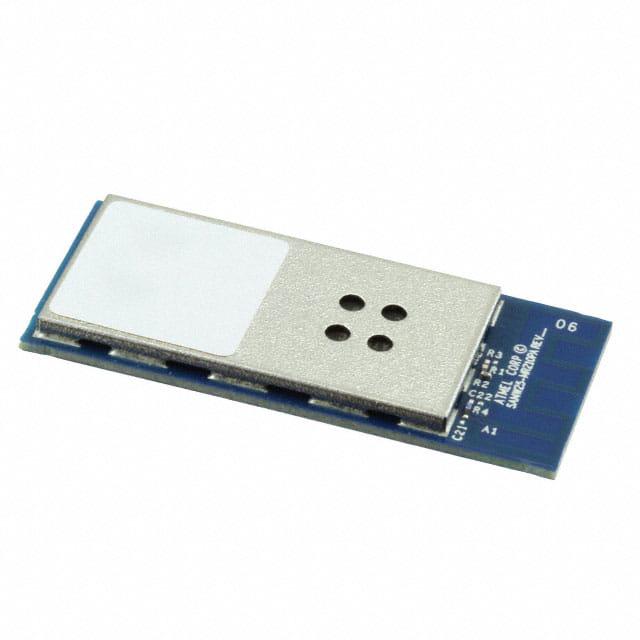

ATSAMW25H18-MR510PB

产品分类: 无线收发芯片
产品描述: 17dBm WiFi 802.11b/g/n CCK,DSSS,OFDM 2.412GHz 4.2V 2.484GHz 65Mbps SPI,UART 95.5dBm 2.7V 贴片安装 33.863mm*14.882mm*84.14mm
供应商型号: MIK-ATSAMW25H18-MR510PB
供应商: 海外现货
标准整包数: 0
MICROCHIP TECHNOLOGY 无线收发芯片 ATSAMW25H18-MR510PB

ATSAMW25H18-MR510PB概述

    Introduction to the Atmel SAMW25-MR210PB Wi-Fi Module
    The Atmel SAMW25-MR210PB is a high-performance, low-power IEEE 802.11 b/g/n SmartConnect Wi-Fi module designed for seamless integration into Internet of Things (IoT) devices. This module combines the industry-leading Atmel | SMART SAMW25 hardware platform with advanced Wi-Fi capabilities, enabling designers to implement wireless connectivity without extensive knowledge of Wi-Fi protocols or RF engineering.
    Product Overview:
    The Atmel SAMW25-MR210PB is based on the ATWINC1500 Wi-Fi SoC and an ARM Cortex-M0+ microcontroller, offering a compact, power-efficient solution for a variety of applications, including smart appliances, home automation, multimedia streaming, and industrial systems. With its certified Wi-Fi connectivity and robust security features, this module is ideal for battery-powered devices where power consumption is critical.
    Technical Parameters
    Below are the key technical specifications for the Atmel SAMW25-MR210PB:
    | Parameter | Value |

    | Wi-Fi Standard | IEEE 802.11 b/g/n |
    | Bandwidth | 20 MHz |
    | Output Power | 802.11b: 17 dBm ±1 dB |
    802.11g: 16 dBm ±1 dB @ EVM -28 dB |
    802.11n: 14 dBm ±1 dB @ EVM -30 dB |
    | Processor | Atmel SAM D21 ARM Cortex-M0+ |
    | Flash Memory | 256 KB |
    | SRAM | 32 KB |
    | Power Supply Range | 2.7 to 3.6 V |
    | Operating Temperature | -40°C to +85°C |
    | Package Dimensions | 33.863 mm × 14.882 mm |
    | Security Protocols | WPA/WPA2 Personal, TLS, SSL |
    | Supported Power States | IDLE, SUSPEND, PROVISION |
    Product Features and Advantages
    1. Low Power Consumption: The Atmel SAMW25-MR210PB excels in power-saving modes, making it ideal for battery-operated devices.
    2. Integrated Security: Supports advanced security protocols such as TLS, SSL, and WPA/WPA2, ensuring secure data transmission.
    3. Compact Form Factor: With a footprint of 33.863 mm × 14.882 mm, it is suitable for space-constrained designs.
    4. Versatile Connectivity: Integrated USB device and host functionality, along with SPI and UART interfaces.
    5. Certifications: FCC, CE, IC, and TELEC certified, ensuring compliance with global standards.
    Application Case Studies and Usage Recommendations
    Application Case Studies:
    1. Smart Thermostat: The module’s low power consumption makes it ideal for battery-powered thermostats, providing seamless Wi-Fi connectivity without frequent battery replacements.
    2. Home Automation Hub: Its dual Wi-Fi and Ethernet capabilities allow it to act as a central hub for controlling lights, locks, and appliances remotely.
    3. Industrial Sensors: Designed for harsh environments, the module supports reliable wireless data transmission in industrial settings.
    Usage Recommendations:
    - Use the built-in RTC for precise timing of sleep intervals to optimize power usage.
    - For optimal performance, ensure the PCB layout adheres strictly to the reference design guidelines provided in the datasheet.
    Compatibility and Support
    The Atmel SAMW25-MR210PB is fully compatible with Atmel Studio 6, providing developers with a comprehensive IDE for rapid prototyping and development. Additionally, the module includes support for over-the-air (OTA) updates, allowing for remote firmware upgrades.
    Atmel offers extensive documentation, including reference designs and schematics, to facilitate easy integration into existing projects. For long-term maintenance, they provide ongoing support and firmware updates.

ATSAMW25H18-MR510PB参数

参数
模块/芯片分类 -
传输电流 -
接收机数量 -
最小工作供电电压 2.7V
最小工作频率 2.412GHz
最大工作频率 2.484GHz
典型输出功率 17dBm
典型供电电流 -
支持协议 802.11b/g/n
最大数据速率 65Mbps
最大工作供电电压 4.2V
调制方式 CCK,DSSS,OFDM
接收电流 -
接口类型 SPI,UART
发送机数量 -
射频系列/标准 WiFi
典型灵敏度 95.5dBm
长*宽*高 33.863mm*14.882mm*84.14mm
安装方式 贴片安装
零件状态 停产
包装方式 托盘
