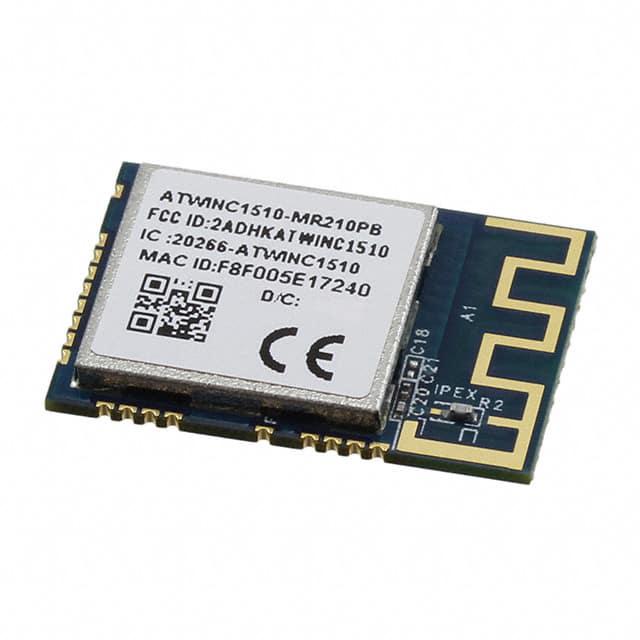

ATWINC1500-MR210PB1944

产品分类: 无线收发芯片
产品描述: 18.5dBm 265mA WiFi 61mA 802.11b/g/n 16-QAM,64-QAM,BPSK,CCK,DBPSK,DQPSK,OFDM,QPSK 2.412GHz 3.6V 2.472GHz 72.2Mbps I²C,SPI,UART 266mA 95dBm 2.7V 贴片安装 21.7mm*14.7mm*2.1mm
供应商型号: ATWINC1500-MR210PB1944-ND
供应商: Digi-Key
标准整包数: 1
MICROCHIP TECHNOLOGY 无线收发芯片 ATWINC1500-MR210PB1944

ATWINC1500-MR210PB1944概述

    # ATWINC15x0-MR210xB IEEE® 802.11 b/g/n SmartConnect IoT Module
    Product Introduction
    The ATWINC15x0-MR210xB is a highly efficient and low-power-consumption IEEE® 802.11 b/g/n IoT module, specifically designed for energy-efficient Internet of Things (IoT) applications. It combines essential wireless functionality with a compact form factor, making it ideal for embedded systems requiring reliable Wi-Fi connectivity. Key features include integrated RF components like a Power Amplifier (PA), Low-Noise Amplifier (LNA), Switch, and Power Management, ensuring robust performance while maintaining a minimal footprint. The module is interoperable with multiple 802.11 b/g/n access points and supports SPI communication for easy integration with host controllers.
    Target Applications:
    - Home automation
    - Smart appliances
    - Industrial IoT solutions
    - Consumer electronics
    - Remote sensing and monitoring
    Technical Parameters
    Below are the key technical specifications of the ATWINC15x0-MR210xB module:
    | Parameter | Specification |

    | Protocol | IEEE® 802.11 b/g/n |
    | Frequency Band | 2.4 GHz ISM band |
    | Single Spatial Stream | Supported |
    | Antenna Options | Integrated PCB antenna or u.FL external antenna |
    | Sensitivity | Advanced PHY signal processing |
    | Security Protocols | WEP, WPA, WPA2, WPA/WPA2 Enterprise |
    | Power Modes | 4 µA Power-Down, 380 µA Doze |
    | Operating Voltage | 2.7V to 3.6V |
    | Operating Temperature Range | -40°C to +85°C |
    | Flash Memory Size | 4Mb or 8Mb |
    | Regulatory Certifications | FCC, ISED, CE, MIC, KCC, NCC, SRRC |
    Product Features and Advantages
    The ATWINC15x0-MR210xB stands out due to its advanced features and competitive advantages:
    - Superior Performance: Integrated RF components and advanced PHY algorithms ensure enhanced sensitivity and range.
    - Power Efficiency: Ultra-low power consumption (down to 4 µA in Power-Down mode) extends battery life significantly.
    - Integrated Security: Supports industry-standard security protocols, including WPA/WPA2 Enterprise and EAP-TLS.
    - High-Speed Boot: Rapid boot capabilities (150 ms for AP re-association) make it ideal for real-time applications.
    - Small Form Factor: Compact dimensions (21.7 x 14.7 x 2.1 mm) simplify PCB design.
    - Built-In Stack: Reduces host CPU requirements with an integrated network stack (TCP, UDP, DHCP, HTTP, TLS, DNS).
    These features make the module particularly suitable for battery-operated devices where power efficiency and small size are critical.
    Application Case Studies and Use Recommendations
    Application Case 1: Smart Thermostat
    In a smart thermostat application, the ATWINC15x0-MR210xB can connect wirelessly to a cloud-based server to provide remote control and monitoring. To optimize performance:
    - Use the u.FL external antenna option for better reception in areas with weak signals.
    - Ensure proper grounding and shielding to avoid interference with adjacent RF components.
    Application Case 2: Wearable Health Monitor
    For wearable health monitors, the module's ultra-low power consumption ensures prolonged battery life. Recommendations:
    - Configure the module to enter deep sleep modes during idle periods.
    - Utilize the built-in eFuse memory to store user-specific settings and calibration data securely.
    Compatibility and Support
    The ATWINC15x0-MR210xB is fully compatible with standard

ATWINC1500-MR210PB1944参数

参数
最小工作供电电压 2.7V
最大工作频率 2.472GHz
最大工作供电电压 3.6V
调制方式 16-QAM,64-QAM,BPSK,CCK,DBPSK,DQPSK,OFDM,QPSK
发送机数量 -
最小工作频率 2.412GHz
传输电流 265mA
接收机数量 -
最大数据速率 72.2Mbps
典型灵敏度 95dBm
接收电流 61mA
典型输出功率 18.5dBm
接口类型 I²C,SPI,UART
支持协议 802.11b/g/n
射频系列/标准 WiFi
典型供电电流 266mA
模块/芯片分类 -
长*宽*高 21.7mm*14.7mm*2.1mm
安装方式 贴片安装
零件状态 在售
包装方式 托盘
