QBVW025A0B1-HZ

产品分类: DC-DC稳压器
厂牌: OMNION POWER
产品描述: 1 12V 75V 36V 通孔安装 58.4mm*36.8mm*11.7mm
供应商型号: SG-QBVW025A0B1-HZ
供应商: 国内现货
标准整包数: 1

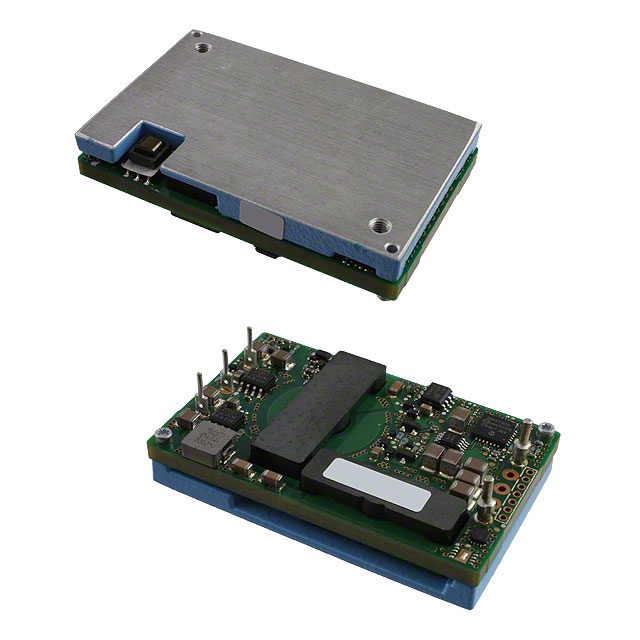

OMNION POWER DC-DC稳压器 QBVW025A0B1-HZ

QBVW025A0B1-HZ概述

    Product Overview: QBVW025A0B Barracuda® Series DC-DC Converter
    Product Introduction
    The QBVW025A0B Barracuda® series of DC-DC converters represents a cutting-edge solution for powering modern electronic systems, especially in distributed power architectures. Designed primarily for 12V intermediate bus applications, it supports subsequent generation of low voltages through Point-of-Load (POL) converters. These converters find their utility in servers, storage systems, networking equipment (including Power over Ethernet or PoE), fan assemblies, and other systems requiring tight regulation of output voltage.
    Key Features
    - Wide Input Voltage Range: Operates from 36Vdc to 75Vdc, ensuring compatibility with a broad range of input sources.
    - High Efficiency: Achieves efficiencies up to 96%, minimizing power dissipation and making external cooling solutions unnecessary in many use cases.
    - Isolated Output: Fully isolated from the input, allowing flexible polarity configurations and grounding schemes.
    - Compact Design: Complies with industry-standard quarter-brick dimensions (58.4mm x 36.8mm x 11.7mm).
    - Comprehensive Safety Certifications: Meets critical standards like ANSI/UL 62368-1 and RoHS compliance, ensuring safety and environmental responsibility.

    Technical Specifications
    Below is a concise list of key technical parameters:
    | Parameter | Symbol | Min | Typ | Max | Unit |
    |
    | Input Voltage Range | VIN | 36 | 48 | 75 | Vdc |
    | Maximum Output Current | IO | 0 | 25 Adc |
    | Output Voltage Set-Point | VO,set | 11.97 | 12.00 | 12.03 | Vdc |
    | Output Ripple & Noise | VO,NL RMS 70 | mVrms |
    | Output Ripple & Noise (p-p) | VO,NL pk-pk 200 | mVpk-pk |
    | Switching Frequency | fsw 150 kHz |
    | Efficiency (100% Load) | η 96.0 % |
    Other notable aspects include:
    - Wide Operating Temperature Range: -40°C to 85°C.
    - Advanced Packaging: Incorporates synchronous rectification and digital control.
    - Protection Mechanisms: Includes overcurrent, overvoltage, short-circuit, and overtemperature protection.
    Advantages and Product Strengths
    1. Energy Efficiency: Exceptional efficiency ensures minimal thermal stress and reduced power loss, leading to longer lifespan and lower operational costs.
    2. Highly Regulated Output: Maintains a stable output voltage under varying loads and conditions, vital for sensitive applications.
    3. Ease of Integration: Industry-standard quarter-brick form factor simplifies PCB design and integration into existing systems.
    4. Compliance with Global Standards: Adheres to key regulatory standards, ensuring worldwide applicability and reliability.
    Application Scenarios and Usage Tips
    The QBVW025A0B excels in distributed power architectures where multiple voltages need to be derived from a common bus. It is particularly suited for server farms, network switches, and high-density fan systems.
    Usage Tips:
    - Ensure proper input filtering to maintain stability and minimize input reflections.
    - Implement load balancing strategies in multi-module configurations.
    - For scenarios requiring remote sensing, connect SENSE(-) to VO(-) to mitigate voltage drop effects.
    Compatibility and Support
    This product is compatible with a variety of devices and systems requiring precise DC-DC conversion. OmionOn Power Inc. provides comprehensive technical support, including design guidelines and troubleshooting assistance.
    Common Issues and Solutions
    | Problem | Solution

QBVW025A0B1-HZ参数

参数
最小输入电压 36V
输出类型 -
最小输出电压 -
同步整流器 -
最大输出电压 12V
开关频率 -
拓扑 -
最大输入电压 75V
功能 -
输出数量 1
长*宽*高 58.4mm*36.8mm*11.7mm
安装方式 通孔安装
应用等级 商用级
包装方式 托盘
