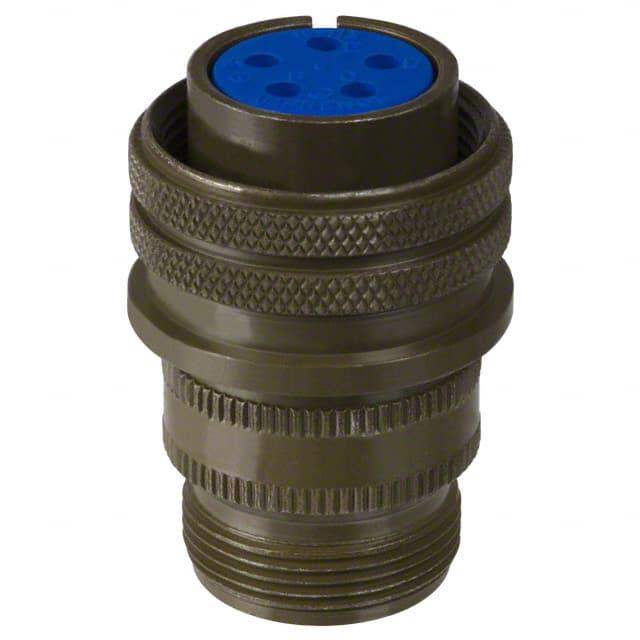

97-3106A-18-11S(946)

产品分类: 圆形连接器
厂牌: AMPHENOL
产品描述: Female Sockets,Plug,Threaded 焊盘 5pin Aluminum Alloy 23A 银 黑色 导线安装,自由悬挂,通孔安装
供应商型号: 654-973106A1811S946
供应商: Mouser
标准整包数: 1
AMPHENOL 圆形连接器 97-3106A-18-11S(946)

97-3106A-18-11S(946)概述

    Amphenol® 97 Series Standard Cylindrical Connectors: A Comprehensive Overview
    Product Introduction
    Amphenol® 97 Series Standard Cylindrical Connectors are designed to offer a robust and reliable solution for a wide range of applications. These connectors belong to the MIL-5015 style category and are suitable for automotive, robotics, machine tool, and welding industries. Additionally, they cater to numerous other commercial uses, ranging from heavy machinery to ECG monitoring cables. Known for their non-environmental and cost-effective design, the 97 Series connectors support both solder and crimp termination types.
    Technical Parameters
    The Amphenol® 97 Series connectors exhibit the following technical specifications:
    - Operating Temperature Range: -55°C to +125°C.
    - Termination Types: Solder or crimp.
    - Certifications: UL Recognized (E115497), CSA Recognized, TÜV Certification.
    - Contact Arrangements: Available in up to 52 circuits, ensuring versatile configurations.
    - Connector Finishes: Standard olive cadmium or environmentally friendly zinc alloy.
    - Shell Construction: Solid or split shell construction with threaded coupling and hard dielectric inserts.
    - Electrical Characteristics: High voltage ratings (17KVAC/24KVDC).
    - Shell Materials: High-grade aluminum alloy, providing durability and environmental protection.
    Product Features and Advantages
    The standout features of the Amphenol® 97 Series include:
    - Cost-Effectiveness: Designed for general-duty applications, these connectors provide a cost-efficient solution.
    - Wide Selection: Offering numerous shell styles and insert patterns to meet diverse application needs.
    - Environmental Compliance: RoHS compliant and available in environmentally friendly finishes.
    - Interoperability: Interfaced with existing 97 Series and SAE AS50151 connectors.
    - Thermal Stability: Operates efficiently across a broad temperature range.
    Application Cases and Usage Recommendations
    The Amphenol® 97 Series connectors are ideal for applications requiring reliable and cost-effective interconnections. Key use cases include:
    - Automotive Industry: Powertrain systems and sensor integration.
    - Industrial Machinery: Control systems and robotic arms.
    - Medical Equipment: High-precision monitoring devices.
    Usage Tips:
    - Ensure proper mating by aligning keys and keyways.
    - Use protection caps and cable clamps to enhance reliability.
    - Optimize circuit designs based on the contact arrangements to maximize efficiency.
    Compatibility and Support
    Amphenol® 97 Series connectors are compatible with a range of accessories, including cable clamps, bushings, and protection caps. The connectors are supported by a global network of distributors and authorized offices, ensuring timely assistance and maintenance services.
    Common Issues and Solutions
    | Issue | Solution |

    | Cross-mating of connectors | Use inserts positioned at various angles to prevent incorrect mating. |
    | Poor electrical connection | Verify proper termination technique and inspect for loose contacts. |
    | Environmental concerns | Select connectors with appropriate sealing and finishing options. |
    Conclusion and Recommendation
    The Amphenol® 97 Series Standard Cylindrical Connectors stand out as a versatile and economical choice for a broad spectrum of industrial applications. Their combination of affordability, durability, and compliance with industry standards makes them an excellent option for general-duty applications. Given their extensive feature set and strong market presence, we highly recommend the Amphenol® 97 Series connectors for projects requiring reliable and efficient electrical connections.

97-3106A-18-11S(946)参数

参数
触头镀层 - 配接
类型 Female Sockets,Plug,Threaded
颜色 黑色
端接 焊盘
额定电流 23A
外壳材料 Aluminum Alloy
针脚数 5pin
安装方式 导线安装,自由悬挂,通孔安装
应用等级 工业级,汽车级
零件状态 在售
包装方式 散装
