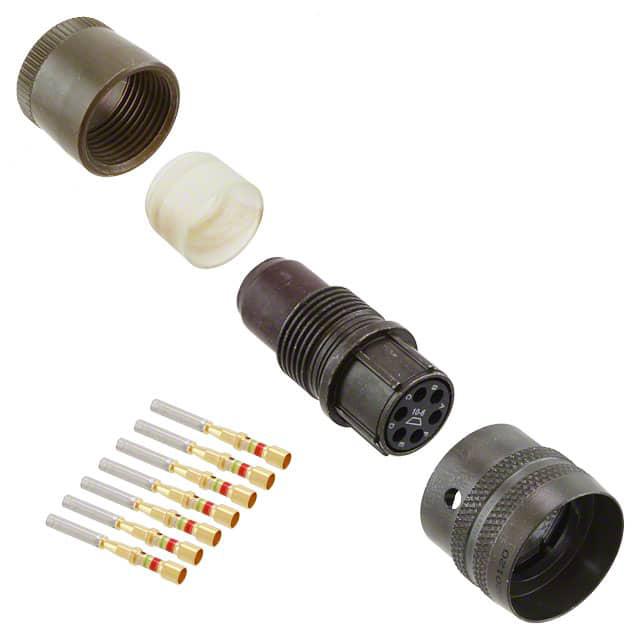

PT06SE-10-6S

产品分类: 圆形连接器
厂牌: AMPHENOL
产品描述: Bayonet Lock,Female Sockets,Plug 6pin Aluminum 7.5A 金 橄榄绿,褐色 导线安装,自由悬挂,通孔安装 33.73mm(长度)
供应商型号: PT06SE-10-6S-ND
供应商: Digi-Key
标准整包数: 1
AMPHENOL 圆形连接器 PT06SE-10-6S

PT06SE-10-6S概述

    Amphenol® 97 Series Connectors: A Comprehensive Technical Overview
    Product Introduction
    Amphenol® 97 Series Connectors represent a robust family of miniature cylindrical connectors designed for a wide range of industrial and military applications. These connectors are UL recognized and CSA recognized, ensuring compliance with stringent safety standards. The series covers connectors with both solder and crimp contact terminations, making them highly versatile. The primary application areas for these connectors include instrumentation, monitoring equipment, machine tool operations, factory automation, communications, geophysical studies, industrial controls, robotics, oil and petrochemical industries, rail/mass transit systems, and military/aerospace environments.
    Technical Parameters
    - Operating Temperature: From -55°C to +125°C.
    - Operating Voltage: Up to 1000 VAC (RMS) at sea level.
    - Contact Material: Low-loss copper alloy machined contacts with gold plating for superior corrosion resistance and an indefinite shelf life.
    - Dielectric Strength: Provided by resilient inserts which ensure high insulation and moisture barrier properties.
    - Shell Finishes: Available in multiple finishes including non-cadmium options.
    - Contact Arrangements: Offers a variety of configurations including soldered and crimped terminals, supporting up to 32 contacts per connector depending on the insert pattern.
    - Electrical Characteristics: Supports power and signal transmission, including thermocouple contacts and shielded coaxial contacts.
    - Environmental Sealing: The grommet and clamp design ensures effective environmental sealing.
    Product Features and Advantages
    1. Design Flexibility: Available in multiple series, each offering different contact configurations and termination methods to suit specific design and cost considerations.
    2. MS Approval: Meets MIL-DTL-26482 Series 1 specifications, making them compliant with military standards.
    3. Cradle-to-Grave Support: Backed by a robust quality system certified to ISO 9001:2015, ISO 14001:2015, and ISO/TS 16949:2016.
    4. High Reliability: Gold-plated contacts ensure longevity and performance even under harsh conditions.
    5. Versatility: Both soldered and crimped versions allow for optimal installation methods depending on the specific requirements.
    Application Case Studies and Usage Recommendations
    These connectors are ideal for environments where space is limited yet high reliability is essential. For instance:
    - Instrumentation: Used in precision measurement equipment requiring reliable data transmission.
    - Military/Aerospace: Deployed in mission-critical systems where connectors must withstand extreme environmental conditions.
    - Industrial Controls: Suitable for robotic arms and control panels requiring durable interconnect solutions.
    Usage Tips:
    - Ensure proper alignment during mating to avoid cross-plugging.
    - Select appropriate shell and insert configurations based on required contact counts and types.
    Compatibility and Support
    These connectors are fully interchangeable with other miniature series within the Amphenol portfolio, ensuring seamless integration. Amphenol Industrial Operations provides comprehensive technical support, including assistance with special application requirements. The company also offers RoHS-compliant versions upon request.
    Common Issues and Solutions
    1. Problem: Connector not properly mated.
    - Solution: Verify keyway alignment before mating.
    2. Problem: Moisture ingress.
    - Solution: Use hermetic sealing options or enhanced grommets.
    3. Problem: Inconsistent electrical performance.
    - Solution: Confirm correct contact insertion depth and ensure all connections are securely fastened.
    Conclusion and Recommendation
    The Amphenol® 97 Series Connectors are an excellent choice for engineers seeking reliable

PT06SE-10-6S参数

参数
端接 -
额定电流 7.5A
外壳材料 Aluminum
针脚数 6pin
触头镀层 - 配接
类型 Bayonet Lock,Female Sockets,Plug
颜色 橄榄绿,褐色
长*宽*高 33.73mm(长度)
安装方式 导线安装,自由悬挂,通孔安装
应用等级 仪表级,军用级,工业级,航天级
零件状态 在售
