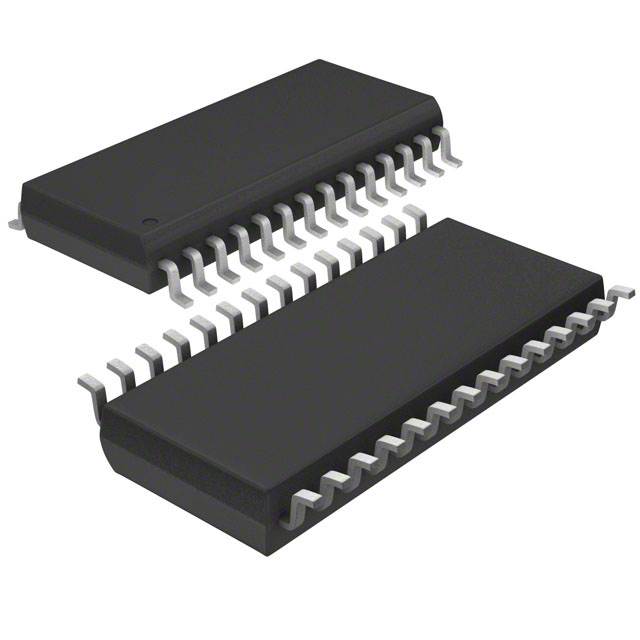

UCC3626PWTR

产品分类: 电机驱动器
厂牌: TEXAS INSTRUMENTS
产品描述: 无刷直流电机(BLDC) 无刷直流电机 11V 14.5V PWM Controller - Commutation,Direction Management TSSOP-28 贴片安装,黏合安装
供应商型号: 25E-UCC3626PWTR
供应商: 国内现货
标准整包数: 1
TEXAS INSTRUMENTS 电机驱动器 UCC3626PWTR

UCC3626PWTR概述

    UCC3626 Motor Controller: A Comprehensive Overview
    Product Introduction
    The UCC3626 is a highly integrated motor controller designed to simplify the development of high-performance, two- or four-quadrant, three-phase brushless DC (BLDC) motor controllers. It combines multiple essential functions such as absolute value current amplification, current sensing, tachometer output generation, and rotor position decoding into a single package. Key applications for the UCC3626 include electric vehicles, industrial motors, HVAC systems, and renewable energy systems.
    Technical Parameters
    The UCC3626 offers advanced performance metrics and robust design capabilities. Below are the critical technical specifications:
    | Parameter | Value |

    | Operating Voltage | 9.0V to 15V |
    | Undervoltage Lockout Threshold | 10.5V |
    | Oscillator Frequency Range | 9kHz to 11kHz |
    | Current Sense Amplifier Gain | 4.85 to 5.15 V/V |
    | PWM Comparator Delay Time | 75ns to 150ns |
    | Maximum Output Current | ±200mA |
    Additional parameters such as high-precision current monitoring, adjustable frequency synchronization, and accurate rotor positioning enhance the versatility of this component.
    Product Features and Advantages
    The UCC3626 stands out with its integrated design and enhanced functionality:
    - Two-Quadrant and Four-Quadrant Operation: Versatility for diverse applications.
    - Absolute Value Current Amplifier: Essential for reliable current feedback.
    - Precision Triangle Oscillator: Stable performance across varying load conditions.
    - Trimmed Precision Reference: Reduces error margins and boosts accuracy.

    These features collectively ensure superior efficiency, reliability, and flexibility, making it an ideal choice for demanding environments.
    Application Cases and Usage Recommendations
    The UCC3626 is widely used in scenarios requiring precise motor control:
    - Electric Vehicles: Optimizes torque and speed under varying loads.
    - Industrial Drives: Delivers robust performance in heavy-duty applications.

    To maximize its potential, users should carefully select external components like timing resistors and capacitors to align with specific frequency requirements. Proper grounding practices and proximity placement of passive filters help reduce electromagnetic interference.
    Compatibility and Support
    The UCC3626 is compatible with various configurations including different package types (PDIP, SOIC, TSSOP), each supporting a broad temperature range (-40°C to +85°C). Texas Instruments provides extensive support, including application notes and reference designs, ensuring seamless integration into existing systems.
    Common Issues and Solutions
    Below are typical problems encountered and their solutions:
    1. Undervoltage Lockout Activation: Check supply voltage and ensure it exceeds 10.5V.
    2. Incorrect Oscillation Frequency: Adjust RTACH and CT values to meet frequency needs.
    3. Overshooting During PWM Switching: Implement additional snubber circuits to dampen transients.
    Conclusion and Recommendation
    The UCC3626 is a top-tier motor controller, offering unmatched integration and precision for modern motor control applications. Its robust feature set, compatibility with a wide array of electronic systems, and excellent technical support make it an excellent investment for engineers seeking high-quality solutions. We highly recommend this product for projects demanding precise motor control and efficient energy management.
    For more detailed technical guidance, consult the official datasheet or contact Texas Instruments for further assistance.

UCC3626PWTR参数

参数
最小工作供电电压 11V
拓扑 -
额定电流 -
接口类型 PWM
电机类型 - AC,DC 无刷直流电机(BLDC)
最大工作供电电压 14.5V
工艺 -
功率 -
功能 Controller - Commutation,Direction Management
电机类型 无刷直流电机
电压 - 负载 -
9.8mm(Max)
4.5mm(Max)
1.05mm(Max)
通用封装 TSSOP-28
安装方式 贴片安装,黏合安装
零件状态 停产
包装方式 散装,卷带包装
