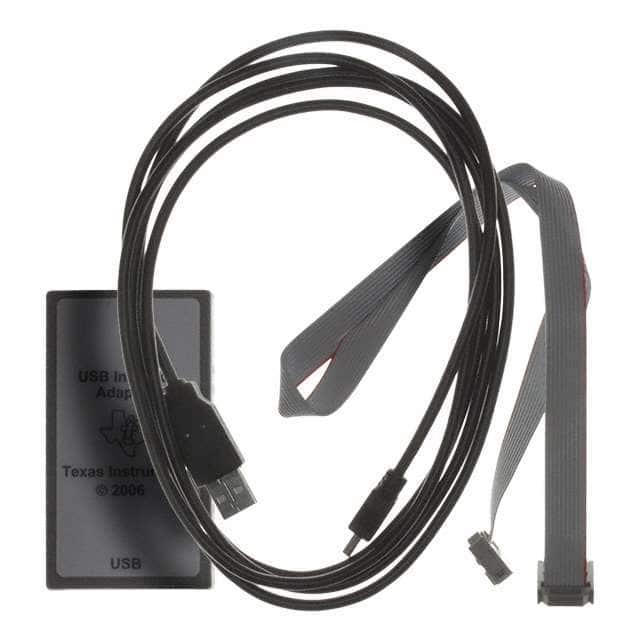

USB-TO-GPIO

厂牌: TEXAS INSTRUMENTS
产品描述: 德州仪器开发套件, 无线通信开发工具
供应商型号: USB-TO-GPIO
供应商: 国内现货
标准整包数: 1
TEXAS INSTRUMENTS 评估、开发板开发工具 USB-TO-GPIO

USB-TO-GPIO概述

    # USB Interface Adapter Evaluation Module User's Guide
    Product Introduction
    The USB Interface Adapter Evaluation Module (EVM) is a versatile electronic component designed to act as an interface adapter or bridge between a host PC (IBM-compatible) and one or multiple slave devices. Communication between the USB interface adapter and the host PC occurs via USB, whereas communication between the adapter and the slave devices is achieved through an inter-integrated circuit (I²C) protocol and/or general-purpose input/output (GPIO) interfaces. The module facilitates seamless conversion of communication transactions between USB and I²C/GPIO.
    This evaluation module supports daisy-chaining multiple I²C slave devices by utilizing a 10-pin ribbon cable with multiple connectors. To operate the USB interface adapter effectively, users need essential hardware such as the adapter itself, a standard type-A to mini-B USB cable, and a 10-pin ribbon cable with connectors on both ends. Additionally, software support includes the I²C/GPIO/PMBUS/SMBUS transport layer DLL driver and a demo GUI software package.
    Technical Parameters
    The USB Interface Adapter Evaluation Module is equipped with the following technical specifications:
    - Core Processor: TI’s TUSB3210, featuring an 8052 core with enhanced performance.
    - Power Supply: Provides a +3.3V output power supply capable of delivering up to 100 mA.
    - Pinout Details:
    - Pins 1-4: Can serve as PMBUS CONTROL lines (output) or GPIO pins (input/output).
    - Pin 5: +3.3V power supply.
    - Pin 6: Ground (GND).
    - Pins 7-10: Support various functions including PMBUS CONTROL, ALERT, CLOCK, and DATA lines.
    Communication Speed: Default I²C communication speed is 100 kHz, with configurable pull-up resistors (default values are 2.2 kΩ).
    Environmental Conditions: Designed to operate under typical office or lab conditions.
    Product Features and Advantages
    Unique Features:
    1. Dual Communication Protocols: Supports both USB and I²C/SMBUS communication protocols.
    2. Flexible Pin Assignment: Each pin can be configured for various functionalities, enhancing adaptability across different applications.
    3. Enhanced Performance: Utilizes the advanced 8052 core, ensuring high reliability and efficiency.
    4. Plug-and-Play Capability: Recognized by the PC as a generic human interface device (HID), eliminating the need for additional drivers.
    Market Competitiveness:
    The USB Interface Adapter Evaluation Module excels in bridging gaps between diverse electronic systems, offering a cost-effective solution for integrating I²C-based devices into larger systems. Its versatility and robust design make it ideal for researchers and engineers working in embedded systems development.
    Application Cases and Usage Suggestions
    Application Examples:
    1. Embedded Systems Development: Ideal for prototyping embedded systems where interfacing between USB and I²C devices is required.
    2. Laboratory Testing: Suitable for setting up laboratory setups involving multiple I²C slave devices connected via a ribbon cable.
    3. Automotive Electronics: Useful for connecting microcontrollers or sensors that communicate over I²C in automotive applications.
    Usage Recommendations:
    - Ensure that all cables are securely connected before powering up the system.
    - Verify that the I²C communication speed and pull-up resistor settings match the requirements of the specific slave devices being interfaced.
    - Regularly update firmware to take advantage of new features and improvements.
    Compatibility and Support
    The USB Interface Adapter Evaluation Module is compatible with most PCs running Windows operating systems due to its recognition as a generic HID device. Texas Instruments provides comprehensive support including downloadable transport DLL and GUI software, along with documentation and technical assistance via their official w
