WP7B-S050VA1-R8000

产品描述: Center Strip Contacts,Receptacle 400μm 2 50pin 700μm 710μm 100nm 金 贴片安装
供应商型号: WP7B-S050VA1-R8000
供应商: 云汉优选
标准整包数: 8000

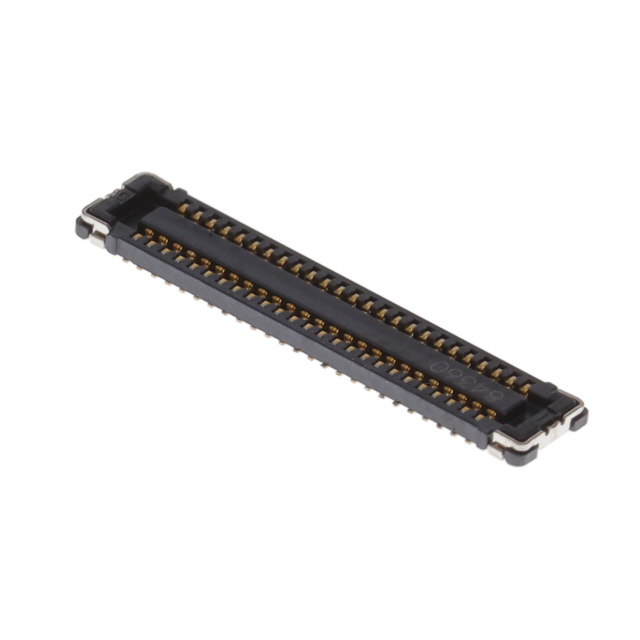

JAPAN AVIATION ELECTRONICS 矩形连接器 - 阵列/边缘型/夹层式(板对板) WP7B-S050VA1-R8000

WP7B-S050VA1-R8000概述

    WP7 Series Connector: High-Density, Low-Profile Board-to-Board (FPC) Connector
    Product Introduction
    The WP7 Series is a next-generation board-to-board (FPC) connector that provides exceptional performance for high-density applications. Designed with a 0.4mm pitch spacing, it is ideal for slim devices requiring compact solutions such as smartphones, tablets, and laptops. The WP7 Series features two subtypes—WP7A (low pin count, 10–32 positions) and WP7B (high pin count, 34–70 positions)—offering flexibility to meet diverse functional requirements within the same mounting pattern. Its low profile (stacking height of 0.7mm) makes it suitable for modern electronic designs where space optimization is critical.
    Technical Parameters
    | Parameter | Specification |

    | Pitch | 0.4mm |
    | Number of Contacts | WP7A: 10, 16, 20, 22, 24, 26, 28, 30, 32; WP7B: 34, 40, 50, 60, 70 |
    | Operating Temperature | -40°C to +85°C |
    | Contact Resistance | ≤70mΩ (initial) |
    | Life Cycle | 30 mating cycles |
    | Rated Current | AC, DC 0.3A per terminal |
    | Rated Voltage | AC, DC 50V |
    | Insulation Resistance | ≥100MΩ (initial) |
    | Dielectric Withstanding Voltage | AC250V RMS for 1 minute |
    | Total Insertion Force (WP7A) | ≤1.50N × number of positions |
    | Total Removal Force (WP7A) | ≥0.15N × number of positions |
    | Total Insertion Force (WP7B) | ≤1.00N × number of positions |
    | Total Removal Force (WP7B) | ≥0.10N × number of positions |
    Product Features and Advantages
    The WP7 Series stands out due to its advanced engineering and robust performance:
    1. Wear-Resistant Design: Utilizes a 2-point contact mechanism that enhances durability and resistance against twisting stress.
    2. Secure Hold-Downs: Prevents insulator damage and peeling off of flexible printed circuits (FPCs).
    3. High-Speed Transmission: Each signal contact supports up to 10Gbps data transfer rates, compatible with MIPI, USB3.1 Gen2, and PCIe Gen3 standards.
    4. Lead-Free Construction: All contacts are plated with gold (Au) for superior solderability and environmental compliance.
    5. Variety of Configurations: Available in both low-pin-count (WP7A) and high-pin-count (WP7B) options, providing versatility across multiple applications.
    Application Case Studies and Usage Recommendations
    The WP7 Series connectors excel in applications demanding high-speed connectivity and compact form factors:
    1. Smartphone Manufacturing: Ideal for connecting displays to mainboards while maintaining slim profiles.
    2. Laptop Assembly: Used in laptop hinges or internal component interconnects.
    3. LCD Displays: Suitable for interfacing panels with controller boards.
    Usage Suggestions:
    - Ensure proper alignment during assembly to avoid excessive insertion forces.
    - Consider using protective casings or heat sinks when deploying the connector in high-temperature environments.
    Comp

WP7B-S050VA1-R8000参数

参数
排数 2
触头镀层
板上高度 710μm
针脚数 50pin
接合堆叠高度 700μm
触头镀层厚度 100nm
类型 Center Strip Contacts,Receptacle
间距 400μm
安装方式 贴片安装
零件状态 在售
包装方式 卷带包装

WP7B-S050VA1-R8000厂商介绍

Japan Electronics Industry株式会社(日本**电子工业株式会社),是一家日本的**电子设备制造商,专注于为**领域提供先进的电子系统和解决方案。该公司的产品主要分为以下几个分类:

1. 飞行控制系统:包括飞行控制计算机、自动驾驶仪等,用于确保**的稳定飞行和自动导航。

2. 通信导航系统:涉及无线电通信设备、导航系统等,帮助**在复杂的空中交通中保持正确的航向。

3. **电子设备:包括飞行数据记录器(黑匣子)、显示系统等,提供飞行信息和数据记录。

4. **照明系统:为**内外提供照明,包括驾驶舱照明、外部信号灯等。

5. **电子组件:生产各种电子组件,如传感器、显示器等,用于**的各个系统。

Japan Electronics的优势在于:

- 技术领先:拥有先进的**电子技术,不断研发创新产品。
- 质量可靠:产品经过严格的质量控制,确保在极端环境下的稳定性和可靠性。
- 定制服务:能够根据客户需求提供定制化的解决方案。
- 全球合作:与全球多家**公司和制造商建立了合作关系,拥有广泛的市场网络。

WP7B-S050VA1-R8000数据手册

厂牌 PDF简要描述 下载
JAPAN AVIATION ELECTRONICS 矩形连接器 - 阵列/边缘型/夹层式(板对板) JAPAN AVIATION ELECTRONICS WP7B-S050VA1-R8000 WP7B-S050VA1-R8000数据手册

WP7B-S050VA1-R8000封装设计

查看详情并下载
Symbol
Footprint
3D Model
价格梯度 中国香港交货 内地交货(含增值税)
8000+ ¥ 0.9348
24000+ ¥ 0.8846
40000+ ¥ 0.8091
库存: 40000
起订量: 8000 增量: 8000
交货地:
最小起订量为:8000
合计: ¥ 7478.4
直接购买
加入购物车
