首页  >  产品百科  >  BK-ATC-4

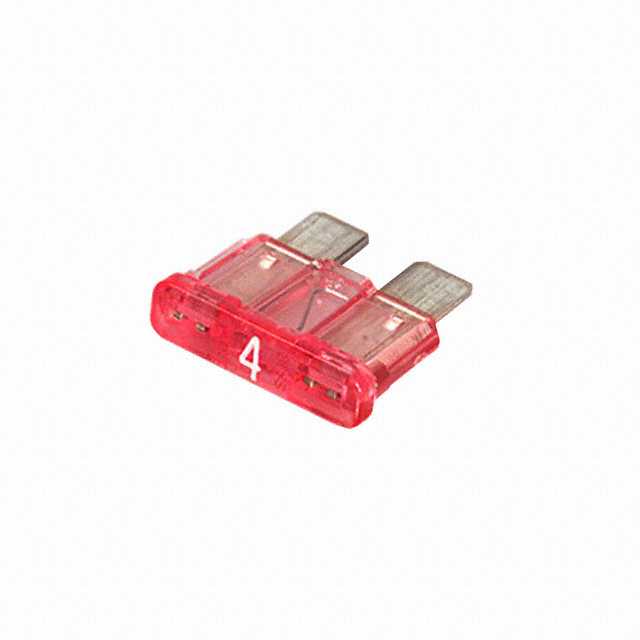

BK-ATC-4

产品分类: 保险丝座和保险丝夹
厂牌: EATON
产品描述: 4A 支架安装 19.3mm(长度)*5.25mm(高度)
供应商型号: 283-2315-ND
供应商: Digi-Key
标准整包数: 1
EATON 保险丝座和保险丝夹 BK-ATC-4

BK-ATC-4概述

    ATC Blade Fuses Technical Overview
    Product Introduction
    The ATC Blade Fuses from Bussmann Series 2 are a comprehensive range of fast-acting fuses designed specifically for automotive and low-voltage control circuits. These fuses conform to industry standards and offer consistent performance across different applications. The ATC fuses are distinguished by their identical form, fit, and electrical characteristics, which ensure seamless integration into diverse systems. Available in various housing materials, these fuses cater to specific orderable catalog numbers to match application-specific requirements.
    Technical Specifications
    The ATC Blade Fuses exhibit robust specifications, including:
    - Voltage Rating: 32V DC
    - Amp Ratings: Ranging from 1A to 40A
    - Interrupting Rating: Up to 1kA
    - Temperature Range: Operates effectively between -40°C and +100°C
    - Agency Compliance: UL Recognized, ISO 8820-3, SAE J1284, JASO 612, and RoHS compliant
    - Material Properties: Tin-plated zinc terminals for corrosion resistance and enhanced conductivity; halogen-free and lead-free construction
    Unique Features and Advantages
    The ATC Blade Fuses stand out with the following features:
    - Color Coding: Standardized colors for rapid identification of amperage ratings.
    - Corrosion Resistance: Enhanced by tin-plated zinc terminals, ensuring longevity in harsh environments.
    - Extreme Environment Suitability: Wide temperature range (-40°C to +100°C) accommodates challenging operational conditions.
    - RoHS Compliance: Environmentally friendly, meeting global regulatory standards.
    - Test Points: Facilitate efficient circuit troubleshooting on specific part/package numbers.
    Application Scenarios and Recommendations
    ATC Blade Fuses are ideal for automotive and low-voltage control applications. They can be integrated into various automotive electrical systems such as lighting, ignition, and auxiliary circuits. It is recommended to select the appropriate fuse based on the system's current draw to ensure optimal performance and safety. For troubleshooting, leveraging the test points can significantly expedite diagnosis and maintenance processes.
    Compatibility and Support
    These fuses are compatible with standard ATC fuse panels, holders, and clips, ensuring easy integration into existing setups. Eaton, the manufacturer, provides extensive support through technical documentation, customer service, and adherence to global safety standards. This commitment ensures reliability and ease of use for end-users.
    Common Issues and Solutions
    Users may encounter issues such as blown fuses or incorrect installation. To address these:
    - Blown Fuses: Replace the fuse with the correct amperage rating as specified in the manual.
    - Incorrect Installation: Ensure proper alignment and insertion into the designated holder or panel to prevent poor contact and overheating.
    Summary and Recommendation
    The ATC Blade Fuses from Bussmann Series 2 represent a reliable and versatile solution for automotive and low-voltage control applications. Their robust design, wide temperature tolerance, and compliance with international standards make them an excellent choice for engineers and technicians alike. Given their performance, compatibility, and environmental compliance, these fuses are highly recommended for demanding applications requiring high reliability and safety.
    For further inquiries or technical support, users are encouraged to visit [Eaton.com/bussmannseries](http://Eaton.com/bussmannseries) or contact Eaton’s customer support at 1-855-287-7626.

BK-ATC-4参数

参数
保险丝座类型 -
保险丝类型 -
额定电流 4A
长*宽*高 19.3mm(长度)*5.25mm(高度)
安装方式 支架安装

BK-ATC-4厂商介绍

EATON(伊顿公司)是一家全球领先的动力管理公司,成立于1911年,总部位于爱尔兰都柏林。EATON提供各种节能解决方案,帮助客户更有效地管理电力、流体和机械功率,以提高能源效率和运营效率。

EATON的主营产品分类包括:
1. 电气产品:如断路器、接触器、继电器等,广泛应用于工业、商业和住宅建筑。
2. 液压产品:如泵、阀、马达等,服务于工程机械、农业机械等领域。
3. ****产品:如**起落架、飞行控制系统等,为**业提供关键部件。
4. 车辆电气系统:如电池、电气控制系统等,为汽车、卡车等提供动力解决方案。

EATON的优势在于:
1. 技术创新:EATON持续投入研发,拥有大量专利技术,为客户提供先进的产品和解决方案。
2. 全球布局:EATON在全球拥有广泛的生产基地和销售网络,能够快速响应客户需求。
3. 定制服务:EATON能够根据客户需求提供定制化的产品和解决方案,满足特定应用场景的需求。
4. 节能环保:EATON的产品和解决方案致力于提高能源效率,减少环境影响,符合可持续发展的趋势。

BK-ATC-4数据手册

厂牌 PDF简要描述 下载
EATON 保险丝座和保险丝夹 EATON BK-ATC-4 BK-ATC-4数据手册

BK-ATC-4封装设计

查看详情并下载
Symbol
Footprint
3D Model
价格梯度 中国香港交货 内地交货(含增值税)
1+ $ 1.771 ¥ 14.965
5+ $ 1.3781 ¥ 11.6448
50+ $ 1.0554 ¥ 8.9179
100+ $ 0.9376 ¥ 7.77
250+ $ 0.8426 ¥ 6.9828
500+ $ 0.7769 ¥ 6.4386
1000+ $ 0.716 ¥ 5.9342
5000+ $ 0.5912 ¥ 4.8996
库存: 1048
起订量: 1 增量: 1
交货地:
最小起订量为:1
合计: ¥ 14.96
直接购买
加入购物车
