TR-PCB-3-R

产品分类:
厂牌: EATON
产品描述:
供应商型号:
供应商:
标准整包数: 0

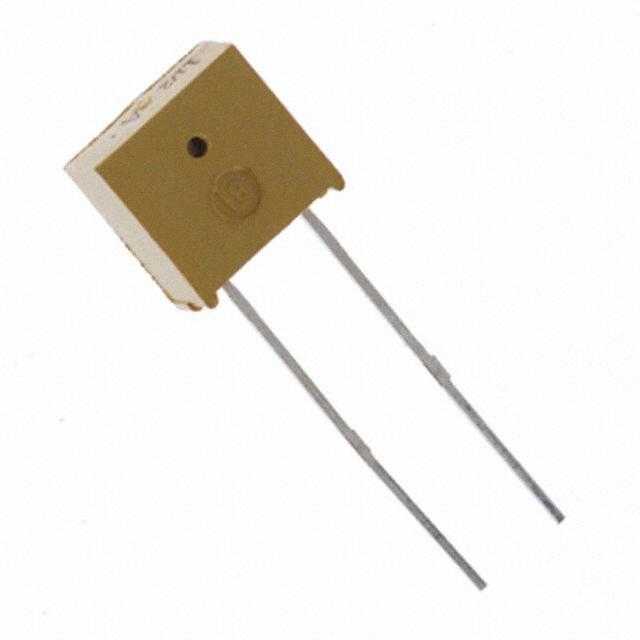

EATON  TR-PCB-3-R

TR-PCB-3-R概述

    PC-Tron Subminiature Radial Leaded Fast-Acting Fuses: A Comprehensive Guide
    Product Introduction
    The PC-Tron subminiature radial leaded fast-acting fuses are designed to offer reliable protection for electronic components and circuits in various applications. These fuses are ideal for high voltage DC applications, providing quick response times and ensuring safety across multiple industries. The PC-Tron series is known for its small size, radial lead configuration, and compatibility with different lead lengths, making it suitable for compact designs.
    Key Features:
    - UL Recognized: E19180 certification ensures compliance with global safety standards.
    - CSA Certification: Recognized under 053787.
    - Fast Acting Mechanism: Ensures rapid circuit interruption upon fault detection.
    - Mounting Options: Available with optional mounting sockets (PCS), enhancing flexibility.
    - Washable Design: Suitable for board washing processes, maintaining performance over time.
    Technical Parameters
    | Catalog Number | Lead Length | Amp Rating | Interrupting Rating | Voltage Range | Interrupting Capability |
    |
    | PCB-1 | Full | 0.5A | 250V @ 50A | 450V | 300A |
    | PCB-3 | Full | 1.5A | 250V @ 50A | 450V | 4400A |
    | PCC-1 | Short | 0.5A | 250V @ 50A | 450V | 5900A |
    | PCD-5 | Full | 10A | 125V @ 10kA | 400V | 1000A |
    Additional specifications include time-current characteristics that ensure minimal delays in operation, with melting points optimized for quick reaction under overload conditions. The fuses are rated to operate at temperatures ranging from -40°C to +85°C, ensuring robust performance in diverse environments.
    Product Features and Advantages
    The PC-Tron fuses stand out due to their ability to handle high currents efficiently while maintaining compact dimensions. Key advantages include:
    - High Reliability: Designed to minimize false tripping under normal operating conditions.
    - Board Washable: Maintains functionality even after exposure to harsh cleaning agents.
    - Customizable Lead Configurations: Offers flexibility in installation options based on application requirements.
    - RoHS Compliance: Meets environmental regulations, aligning with modern manufacturing standards.
    These features make PC-Tron fuses a preferred choice in sectors requiring precise yet durable protection solutions.
    Application Cases and Usage Tips
    PC-Tron fuses find application in power supplies, telecommunications equipment, automotive electronics, and industrial control systems where fast and accurate current limiting is essential. For instance, in telecommunication networks, these fuses protect sensitive signal processing units by quickly isolating faulty sections.
    Usage Suggestions:
    - Always refer to manufacturer guidelines regarding appropriate amp ratings and environmental conditions.
    - Implement regular checks to ensure consistent performance and prevent potential failures.
    - Consider using mounting sockets (PCS) when high-density installations are needed to enhance accessibility and maintainability.
    Compatibility and Support
    Eaton Electronics Division provides comprehensive support for the PC-Tron series, including detailed documentation and technical assistance. The fuses are compatible with standard PCB layouts and can integrate seamlessly into existing designs. Customers can choose from various packaging codes and option codes to tailor solutions according to project needs.
    Common Issues and Solutions
    Some common issues users migh

TR-PCB-3-R厂商介绍

EATON(伊顿公司)是一家全球领先的动力管理公司,成立于1911年,总部位于爱尔兰都柏林。EATON提供各种节能解决方案,帮助客户更有效地管理电力、流体和机械功率,以提高能源效率和运营效率。

EATON的主营产品分类包括:
1. 电气产品:如断路器、接触器、继电器等,广泛应用于工业、商业和住宅建筑。
2. 液压产品:如泵、阀、马达等,服务于工程机械、农业机械等领域。
3. ****产品:如**起落架、飞行控制系统等,为**业提供关键部件。
4. 车辆电气系统:如电池、电气控制系统等,为汽车、卡车等提供动力解决方案。

EATON的优势在于:
1. 技术创新:EATON持续投入研发,拥有大量专利技术,为客户提供先进的产品和解决方案。
2. 全球布局:EATON在全球拥有广泛的生产基地和销售网络,能够快速响应客户需求。
3. 定制服务:EATON能够根据客户需求提供定制化的产品和解决方案,满足特定应用场景的需求。
4. 节能环保:EATON的产品和解决方案致力于提高能源效率,减少环境影响,符合可持续发展的趋势。

TR-PCB-3-R数据手册

厂牌 PDF简要描述 下载
EATON EATON TR-PCB-3-R TR-PCB-3-R数据手册
