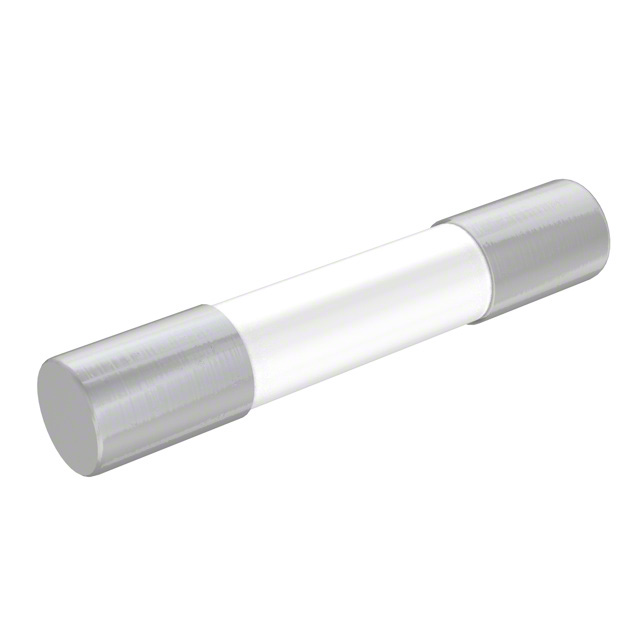

BK/SC-50

产品分类: 熔断保险丝
厂牌: EATON
产品描述: 300V 480V 慢速熔断 Cartridge,Ceramic 50A 底座安装,标准安装,盒式安装 57.15mm(长度)
供应商型号: 504-BK/SC-50
供应商: Mouser
标准整包数: 1
EATON 熔断保险丝 BK/SC-50

BK/SC-50概述

    Bussmann SC Class G 600Vac/480Vac 1/2-60A Size-Rejecting Fuses: A Comprehensive Overview
    Product Introduction
    The Bussmann SC Class G series represents a robust and reliable range of size-rejecting fuses designed for basic protection in electrical systems. These fuses are intended for applications requiring Class G compliance, offering both fast-acting and time-delay options across a wide ampere range from 1/2A to 60A. This series supports both 600Vac/480Vac environments, making it suitable for a variety of industrial, commercial, and residential power distribution needs.
    These fuses are ideal for applications where effective current limitation is required, such as lighting circuits, motor controls, and other non-demanding general-purpose applications. The SC Class G fuses ensure safety by meeting regulatory standards like the NEC and CSA while offering an economical alternative to traditional circuit breakers.
    Technical Parameters
    Below is a concise overview of the key technical specifications:
    | Specification | Details |

    | Voltage Ratings | 600Vac/170Vdc (1/2-20A)
    480Vac/300Vdc (25-60A) |
    | Amp Range | 1/2A to 60A |
    | Interrupt Rating | 100kA (AC)
    10kA (DC) |
    | Temperature Resistance| Meets UL 248-5 Class G and CSA C22.2 No. 248.5 guidelines |
    | Agency Approvals | UL Listed, CSA Certified, CE compliant, RoHS compliant |
    | Size Rejection | Length-based design prevents overfusing |
    Each fuse provides specific performance characteristics based on its amp rating, with fast-acting versions available up to 6A and time-delay versions extending up to 60A. Additionally, fuses rated at 7A and above include built-in overload time-delay to handle transient overloads.
    Product Features and Advantages
    The SC Class G fuses distinguish themselves with several advantages:
    1. Cost Efficiency: Offer a lower total cost of ownership compared to circuit breakers.
    2. High Interrupt Capacity: Supports interruption ratings of up to 100kA RMS symmetrical current.
    3. Compact Design: Fits seamlessly into compact circuit layouts while maintaining high reliability.
    4. Multi-Voltage Compliance: Operates effectively across 120/208V, 120/240V, and 277/480V circuits.
    5. Environmental Compatibility: RoHS-compliant construction ensures eco-friendly standards.
    6. Selective Protection: Ensures precise protection via size rejection features.
    Application Case Studies and Usage Recommendations
    The SC Class G fuses are well-suited for general-purpose applications such as lighting circuits, power distribution panels, and motor control systems. For example:
    - In lighting circuits (120V/240V), the 1/2A to 6A fast-acting fuses provide instantaneous protection against short circuits.
    - In higher amp circuits (25A to 60A), the time-delay feature allows handling transient overloads common in motor startup scenarios.
    Usage Suggestions:
    - Ensure proper coordination between upstream and downstream devices by using recommended fuse blocks like BG300XX or G30060-C series.
    - Always verify the system voltage and amperage before selecting a fuse to avoid under-fusing or over-fusing issues.
    - Implement size rejection practices by aligning fuse dimensions with system configurations.
    Compatibility and Support
    These fuses are compatible with standard-sized fuse holders and blocks, ensuring easy integration into existing systems. Additionally, Eaton offers comprehensive customer support through their website and helpline (1-855-287-7626). Regular maintenance checks and adherence to manufacturer guidelines are essential to

BK/SC-50参数

参数
额定电压-AC 480V
额定电压-DC 300V
熔断特性 慢速熔断
保险丝类型 Cartridge,Ceramic
熔断 I²t -
额定电流 50A
熔断电流 -
长*宽*高 57.15mm(长度)
安装方式 底座安装,标准安装,盒式安装
零件状态 在售
包装方式 散装
