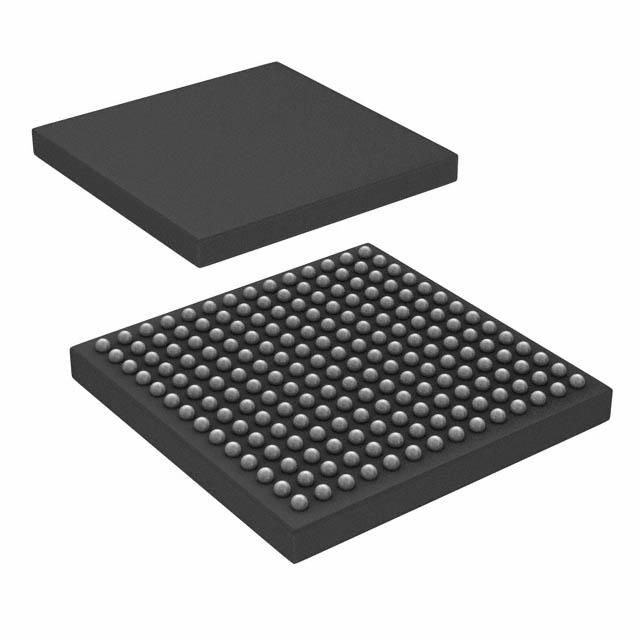

ADSP-21065LKCA-264

产品分类: 数字信号处理(DSP)
厂牌: ANALOG DEVICES
产品描述: 3.3V Host Interface,Serial Port 32bit 68KB EXTERNAL 3.13V 3.6V 60MHz BGA 贴片安装 15mm(长度)*15mm(宽度)
供应商型号: CY-ADSP-21065LKCA-264
供应商: Avnet
标准整包数: 1
ANALOG DEVICES 数字信号处理(DSP) ADSP-21065LKCA-264

ADSP-21065LKCA-264概述

    Product Overview: ADSP-21065L DSP Microcomputer
    1. Product Introduction
    The ADSP-21065L is a powerful 32-bit digital signal processor (DSP) belonging to the SHARC family, designed specifically for demanding applications in the fields of communications, audio processing, automotive systems, instrumentation, and industrial automation. Its standout feature is the Super Harvard Architecture, which provides unprecedented levels of parallelism, enabling simultaneous fetch of instructions and data for improved performance. This makes it particularly suitable for complex signal processing tasks such as filtering, compression, encryption, and machine learning computations.
    Key functional aspects of the ADSP-21065L include high-performance fixed and floating-point arithmetic, an extensive on-chip memory configuration, integrated serial ports, and a versatile DMA controller. These make it a preferred choice for real-time, high-throughput processing needs across multiple industries.
    2. Technical Specifications
    The following table summarizes the key technical parameters of the ADSP-21065L:
    | Parameter | Details |

    | Architecture | Super Harvard Architecture |
    | Clock Frequency | 66 MHz |
    | Arithmetic | Fixed-point (32-bit) and floating-point (32/40-bit) |
    | Memory Size | 544 Kbits on-chip SRAM |
    | Data Formats | IEEE 32-bit single-precision and 40-bit extended precision |
    | Interfaces | SDMA, SPORT (2 channels), SDRAM, Host Interface |
    | Performance | 66 MIPS, 198 MFLOPS peak, 132 MFLOPS sustained |
    | Temperature Range | Industrial temperature range (-40°C to +85°C) |
    | Power Supply | 3.3 V |
    3. Product Features and Advantages
    The ADSP-21065L is notable for its advanced architecture and robust capabilities:
    - High Computational Power: Supports both fixed-point and floating-point operations with single-cycle execution.
    - Extensive Memory Integration: Offers 544 Kbits of on-chip SRAM, allowing large-scale data storage without external dependencies.
    - Versatile Serial Interfaces: Features two enhanced serial ports (SPORTs) supporting up to eight transmit/receive channels.
    - Efficient DMA Management: Background DMA operations ensure parallel data movement, enhancing overall throughput.
    - Compatibility: Code-compatible with the ADSP-2106x family, ensuring ease of migration for existing projects.
    Its flexibility, combined with superior performance metrics, makes it ideal for systems requiring both precision and high-speed data processing.
    4. Application Scenarios and Usage Tips
    The ADSP-21065L is extensively used in applications like:
    - Audio Processing: Real-time encoding/decoding, mixing, and effects processing.
    - Communications: Implementing protocols like I²S for audio streaming.
    - Automotive Systems: Advanced driver assistance systems (ADAS) and infotainment processing.
    Usage Suggestions:
    - Utilize circular buffers for efficient memory management in data-intensive algorithms.
    - Optimize code for parallel execution wherever possible to maximize performance.
    - Leverage DMA for concurrent data movement between internal and external memory to reduce CPU load.
    5. Compatibility and Support
    The ADSP-21065L is highly compatible with various standard memory interfaces, including SDRAM controllers, facilitating easy interfacing with external memory devices. The product is backed by comprehensive support through Analog Devices' EZ-ICE emulator and VisualDSP software suite, offering tools for simulation, debugging, and optimization.
    6. Common Issues and Solutions

ADSP-21065LKCA-264参数

参数
数据总线宽度 32bit
I/O电压 3.3V
最大工作供电电压 3.6V
程序存储器大小 -
L1缓存指令存储器 -
核心处理器 -
最小工作供电电压 3.13V
RAM大小 68KB
速度 -
接口类型 Host Interface,Serial Port
内核数 -
最大时钟频率 60MHz
程序存储器类型 EXTERNAL
长*宽*高 15mm(长度)*15mm(宽度)
通用封装 BGA
安装方式 贴片安装
零件状态 停产
包装方式 散装,托盘
